Aluminum Die Cast Cabinet Indoor LED Screen Hire 500x500mm P2.97mm
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC |
| Model Number: | P2.97mm |
Payment & Shipping Terms:
| Packaging Details: | paper carton+wooden shell |
|---|---|
| Payment Terms: | L/C, T/T |
|
Detail Information |
|||
| Module Size: | 250*250mm | Box Size: | 500*500mm |
|---|---|---|---|
| Material: | Aluminum Die Cast Cabinet | Brightness: | ≥1000cd |
| Refresh: | 3840Hz | Power Supply:: | 100-240V |
| View Angle: | ≥120º | View Distance: | 5m |
| High Light: | CE Certified Indoor LED Screen Hire,Indoor LED Screen Hire P2.97mm,500x500mm Indoor Rental LED Screen |
||
Product Description

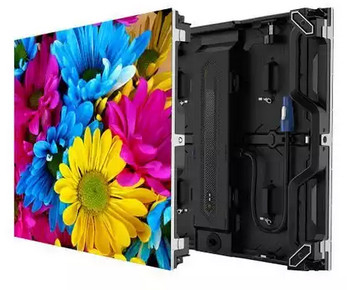

P2.97mm Indoor LED Screen Hire Aluminum Die Cast Cabinet
Rental led display,led wall parameter:
1. The overall use of frame-type visual design, the combination of the scattered and orderly appearance of the box, the hidden upper handle and the integrated power box , not only improves the operating experience, but also forms a more differentiated brand symbol characteristics. It has a great sense of space and visual tension in the state, giving people the product characteristics of firmness, stability and strong operability
2. Arc, corner and various creative shapes can be realized through positioning posts and multi-functional lock connectors ; the standard box can achieve 5° inner arc without adding custom locks or box assembly parts , providing a variety of possibilities for on- site design
| project | parameter | Remark | |
|
BASIC PARAMETER |
pixel pitch | 2.97mm _ | |
| pixel structure | 1R1G1B | ||
| pixel density | 113367 /m 2 | ||
| Module resolution | 84 (W) * 84 (H) | ||
| Module size | 250mm*250mm | ||
| Box size | 500mm*500mm | die casting | |
|
OPTIC PARAMETER |
Single point luminance, chromaticity correction | have | |
| white balance brightness | ≥ 1000cd/㎡ | ||
| color temperature | 2000K—12500K adjustable | ||
| Horizontal viewing angle | ≥ 140° | ||
| vertical viewing angle | ≥ 120° | ||
| Visible distance | ≥9m | ||
| Brightness uniformity | ≥97% | ||
| Contrast | ≥5000:1 | ||
|
Proccessing performace |
Signal processing bits | 16 bits*3 | |
| grayscale | 16Bit | ||
| control distance | Gigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers | ||
| drive mode | High gray-scale constant current source driver IC | ||
| frame rate | ≥ 60HZ | ||
| refresh rate | ≥1920 Hz | ||
| way to control | Synchronize | ||
| Brightness adjustment range | 0 to 100 stepless adjustment | ||
|
Operation parameter |
Continuous working time | ≥72 hours | |
| Typical life | 50,000 hours | ||
| Protection class | IP20 | ||
| range of working temperature | -20℃ to 50℃ | ||
| Operating humidity range | 10 %- 80% RH non-condensing | ||
| Storage temperature range | -20 ℃ to 60 ℃ | ||
|
Electric parameter |
Operating Voltage | DC 5V | |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | ||
| Maximum power consumption | 700W/ ㎡ | ||
| Average power consumption | 260W/ ㎡ | ||
Feature Of Indoor Rental LED Screen
1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
