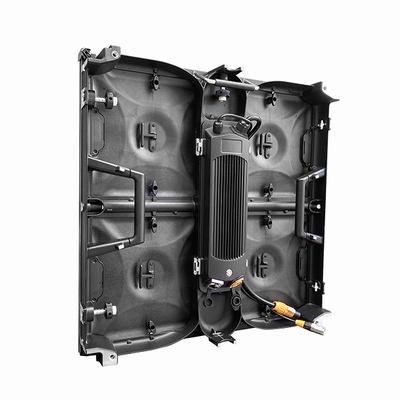

576×576mm Rental Series P4.8
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC/ETL |
| Model Number: | P4.8mm |
|
Detail Information |
|||
| Pitch: | P4.8mm | Material: | Die Cast Aluminum Cabinet |
|---|---|---|---|
| Application: | Indoor Rental | Brightness: | 4500cd |
| Contrast Ratio: | 5000:1 | View Angle: | 140º |
| Install: | Fast Easy To Install And Uninstall | Waterproof: | IP65 |
| Module Size: | 288*288mm | View Distance: | 5m |
| High Light: | P3.91mm Outdoor Rental LED Screen,IP65 Waterproof Outdoor Led Display Screen,P3.91mm Waterproof LED Screen |
||
Product Description
| project | parameter | Remark | |
|
BASIC PARAMETER |
pixel pitch | 3.91 mm | |
| pixel structure | 1R1G1B | ||
| pixel density | 43403 / m2 | ||
| Module resolution | 60 (W)* 60 (H) | ||
| Module size | 250mm*250mm | ||
| Box size | 576mmX576mm | ||
|
OPTIC PARAMETER |
Single point luminance, chromaticity correction | have | |
| white balance brightness | ≥4 5 00cd/㎡ | ||
| color temperature | 2000K—12500K adjustable | ||
| Horizontal viewing angle | ≥ 140° | ||
| vertical viewing angle | ≥ 120° | ||
| Visible distance | ≥8 meters | ||
| Brightness uniformity | ≥97% | ||
| Contrast | ≥5000:1 | ||
|
Proccessing performace |
Signal processing bits | 16 bits*3 | |
| grayscale | 12-14Bit | ||
| control distance | Gigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers | ||
| drive mode | High gray-scale constant current source driver IC | ||
| frame rate | ≥ 60HZ | ||
| refresh rate | 1920 -3840Hz | ||
| way to control | Synchronize | ||
| Brightness adjustment range | 0 to 100 stepless adjustment | ||
|
Operation parameter |
Continuous working time | ≥72 hours | |
| Typical life | 50,000 hours | ||
| Protection class | IP 65 | ||
| range of working temperature | -20℃ to 50℃ | ||
| Operating humidity range | 10 %- 80% RH non-condensing | ||
| Storage temperature range | -20 ℃ to 60 ℃ | ||
|
Electric parameter |
Operating Voltage | DC 5V | |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | ||
| Maximum power consumption | 700W/ ㎡ | ||
| Average power consumption | 260W/ ㎡ | ||
