Adjustable Color Temperature Rent LED Video Wall Immersive Design
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC/CCC |
| Model Number: | P3.91mm |
|
Detail Information |
|||
| Cabinet: | 500*500*75mm | Module Size: | 250*250mm |
|---|---|---|---|
| Brightness: | ≥1000cd | Refresh: | 1920-3840Hz |
| Weight: | 6.5kg | View Angle: | ≥140º |
| View Distance: | 3m | Characteristic: | Immersive Design Of The Module |
| High Light: | 3.91mm Rent LED Video Wall,Immersive Design Rent LED Video Wall,CCC Certified Indoor Rental LED Screen |
||
Product Description

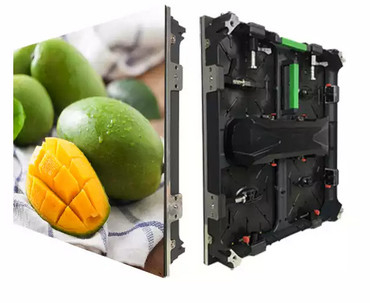

Adjustable Color Temperature Rent LED Video Wall Immersive Design
private aluminum die cast box HD P3.91mm indoor rental led screen led display
Rental led display,led wall parameter:
1. The bump design of the mask enhances the crash resistance of the surface of the module; the glue filling process of the lamp feet enhances the thrust; the maintenance cost of the lamp is reduced; the super edge guard LED lamp protection structure , automatic expansion, is especially suitable for multiple disassembly and assembly, safe and convenient; The bottom of the box is specially designed to avoid bumping the lamp surface when the product is transported;
2. Arc, corner and various creative shapes can be realized through positioning posts and multi-functional lock connectors ; the standard box can achieve 5° inner arc without adding custom locks or box assembly parts , providing a variety of possibilities for on- site design
3. Both the hoisting lock and the left and right locks can be quickly connected and disassembled;
4. there is no tool for one-person rear maintenance
| Project | parameter | Remark | |
|
BASIC PARAMETER |
pixel pitch | 3.91 mm | |
| pixel structure | 1R1G1B | ||
| pixel density | 65544 /m 2 | ||
| Module resolution | 64 (W)* 64 (H) | ||
| Module size | 250mm*250mm | ||
| Box size | 500mm*500mm | die casting | |
|
OPTIC PARAMETER |
Single point luminance, chromaticity correction | have | |
| white balance brightness | ≥ 1000cd/㎡ | ||
| color temperature | 2000K—12500K adjustable | ||
| Horizontal viewing angle | ≥ 160° | ||
| vertical viewing angle | ≥ 140° | ||
| Visible distance | ≥9m | ||
| Brightness uniformity | ≥97% | ||
| Contrast | ≥3000:1 | ||
|
Proccessing performace |
Signal processing bits | 16 bits*3 | |
| grayscale | 12-14Bit | ||
| control distance | Gigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers | ||
| drive mode | High gray-scale constant current source driver IC | ||
| frame rate | ≥ 60HZ | ||
| refresh rate | ≥1920-3840 Hz | ||
| way to control | Synchronize | ||
| Brightness adjustment range | 0 to 100 stepless adjustment | ||
|
Operation parameter |
Continuous working time | ≥72 hours | |
| Typical life | 50,000 hours | ||
| Protection class | IP20 | ||
| range of working temperature | -20℃ to 50℃ | ||
| Operating humidity range | 10 %- 80% RH non-condensing | ||
| Storage temperature range | -20 ℃ to 60 ℃ | ||
|
Electric parameter |
Operating Voltage | DC 5V | |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | ||
| Maximum power consumption | 70 0W/ ㎡ | ||
| Average power consumption | 260W/ ㎡ | ||
PITICH:
indoor P2.604, P2.97, P3.91
Outdoor P2.97, P3.91, P4.81
Module size:250x250mm
Box size: 500*500mm
Feature Of Indoor Rental LED Screen
- Seamless connection.
- Special design for the mask to realize higher contrast and larger viewing angle.
- Signal backup and power backup.
- Brightness and chromaticity calibration.
- Mixed use of cabinets from different batches
