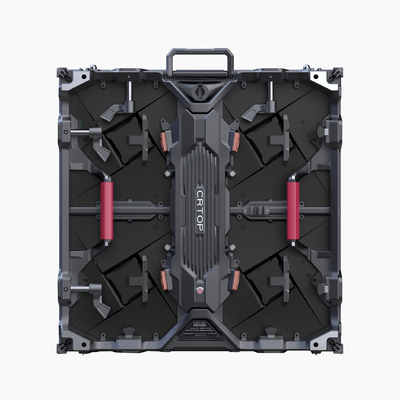

3.91Rental Series500x500mm
Product Details:
Place of Origin: | CHINA |
Brand Name: | CRTOP |
Certification: | CE/FCC/ETL |
Model Number: | P3.91mm |
Detail Information |
|||
Pitch: | P3.91mm | Material: | Die Cast Aluminum Cabinet |
---|---|---|---|
Application: | Outdoor Rental | Brightness: | 4500cd |
Contrast Ratio: | 5000:1 | View Angle: | 140º |
Install: | Fast Easy To Install And Uninstall | Waterproof: | IP65 |
Characteristic: | Without Adding Custom Locks Or Box Assembly Parts | ||
High Light: | IP65 Outdoor Video Screen Rental,1920Hz Outdoor Video Screen Rental,1920Hz P3.91mm Outdoor Advertising Led Screens |
Product Description
Quick detail of Rental LED Screen
1, Pixel Pitch: 3.91
2, SMD LEDs, Wide viewing angle: 140/ 120°.
3, Standard cabinet size: Customized,
4,cabinet weight: 7.8kg/Sqm.
5, Grey Level: 12-14 Bit
6, Recommended minimum viewing distance: 5-7m.
7, Material: Die Casting Aluminum
8, Refresh Rate: 1920-3840Hz
9, IP Rating: IP65
10,Certificate:CE, RoHS,FCC
11,Viewing Distance:≥4m
12,Brightness:800-1000cd/sqm
13,Module Resolution:250x250pixels
14,Screen Dimension: 500x500mm
Feature Of Indoor Rental LED Screen
l High IP Rating IP65, good waterproof and dust resistance, suitable for every condition.
l Wide viewing angle 140° for broader reach, seamless in all direction with same image quality output, suitable for large gatherings.
l Good heat dissipation with fans and using meanwell power supply, long lifespan.
l You can adjust the resolution by change modules directly, this can save your cost and labor.
l 250x250mm module, compatible with various pitches such as PH2.6/PH2.9/PH3.9, high selectivity
l High-precision and ultra-practical design, 500x500/1000mm cabinet, light and easy to assemble
l Customized arc-side locks design, the angle can be adjusted to achieve arc, round and S-shaped splicing.
l High-contrast outdoor pure black light, non-destructive refresh and grayscale. Achieve ultra-high contrast 5000:1, low brightness 800-1000cd adjustable, protect the human eye, meet indoor and outdoor application scenarios
l Configure PWM constant current drive IC to eliminate the "caterpillar" image, low brightness and no color cast, no color block, gray scale is too smooth and no jump, no first line dark phenomenon, refresh ≥ 3840HZ, complete guarantee 12-14bit gray scale, Real color reproduction, high quality display
l The flat spray mask design ensures that the entire screen plane is free of any warping, and the high-quality black protective colloid is used to perfectly realize the full-angle display of the lamp bead.
l Seamless connection.
l Special design for the mask to realize higher contrast and larger viewing angle.
l Signal backup and power backup.
l Brightness and chromaticity calibration.
l Mixed use of cabinets from different batches
l it delivers an image which is super subtle and without getting tired after a longtime watching
l Super High Refresh rate, High frame frequency, No Ghosting &Twisting or smear.
l Front Serviceable module allows easy. maintenance, saving time & spac.
l 12-14 bit grey grade processing, the color transition will be more natural Ultra high definition 2k 4k led display
Application Of Indoor Rental LED Screen
Mobile Truck LED Display is being an important advertising media for outdoor events and advertising campaign on basis of its unique advanced structure feature. It’s known as truck mounted LED display and trailer mounted LED screen. The products are widely used for advertising, shows, square, concert, sporting event, festival, corporate gathering or charitable event, Grand Theater, large song and dance party, fashion show.
· Business organizations
Supermarket, large-scale shopping malls, star -rated hotel, travel agencies.
· Financial organizations
Bank, insurance companies, post offices, hospital, schools
· Public place
Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting room
· Entertainments
Movie theaters, clubs, stages
Suit for advertisement, stadium, exhibition, TV-Show, mansion, video wall, shopping mall, banks, schools, bus station, airport, gym, market, factories, monitoring centers, hospital, bar etc.
Special designs:
1. Electric leakage protection design with wooden floor Non-slip design
a. Led truck screen with anti-vibration, butterfly connector is more anti-vibration,
b. more stable current contact, less info loss,
c. more stable transmission function. Suitable for led screen truck.
2. Reliable design: connect coterminous led cabinet by connecting plate and locating pin.
3. the protection level can reach up to IP65, and applicable to any rainy weather,t hus can used in any outdoor environment.
4. Wider viewing angle: Horizontal≥140º; Vertical≥120º, can attract more audiences' eye, very good for outdoor advertising.
Our Services
1. 7 Years professional led display manufacturer,
2. Shot delivery time: 5-15days.
3. Factory price.
4. OEM and ODM service
5. We can design special product for you.
6. 30% deposit for producing,70% balance to be paid before shipment.
7. EXW, FOB, CIF C&F, FCA, DDU, colorful trade term.
1. After-sales service:
1) Service principles: response in time, solve problems as soon as possible and ensure the use.
2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
4) Under normal use and storage, Our Company will be responsible for the equipment.
2. Pre-sales service:
1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions.
2) Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
Q: What is the brightness, viewing angle and wavelength of the LED? |
A: Luminous Intensity is equal to the amount of luminous flux emitted into a very small solid angle at a defined angular orientation from the light source. The measurement for luminous intensity is the candela. Symbol is Iv. Viewing Angle is the total cone angle in degrees encompassing the central, high luminous intensity portion of the LED beam from the on-axis peak to the off-axis point where the LED intensity is 50% of the on-axis intensity. This off-axis point is known as theta one-half ( 1/2). Two times 1/2 is the LEDs' full viewing angle; however, light is visible beyond the1/2 point. Wavelength is the distance between two points of corresponding phase and is equal to waveform velocity divided by frequency. It defines what color human eyes could recognize |
Q: What is dominant wavelength? Please specify the ranges of wavelength in red, green and blue color respectively. |
A: Dominant wavelength is defined as the best range of wavelength showing the most natural color recognized by human eyes. Researches indicate that fixed colors with wavelength of 620-630nm (red), 520-530nm (green) and 460-470nm (blue), in fact mixed in a particular proportion, can get the pure white. That is, in display field, people use luminous materials with above wavelength to make "compounded" white more natural.In order to get a good balance white led display, we specify the led colors with wavelength within 4nm for each color |
Q: Which chip vendors are you buying from? |
A: It depends on the Customer's requirement. We can purchase from Japan, Korea, Europe, USA. We are using chips mainly from Taiwan |
Q: What is the chip size you're using for outdoor display? How about indoor display? |
A: For outdoor display, we're using 12mil chip for red, 14mil for both green and blue. Regarding indoor display, 9mil for red, 12mil for green and blue are currently adopted |
Q: How much will the brightness of LED drop down after 1000hrs? |
A: Based on the result of aging test, the brightness decay of green LED is around 5%-8%, while blue is around 10%-14% and red is around 5%-8% |
