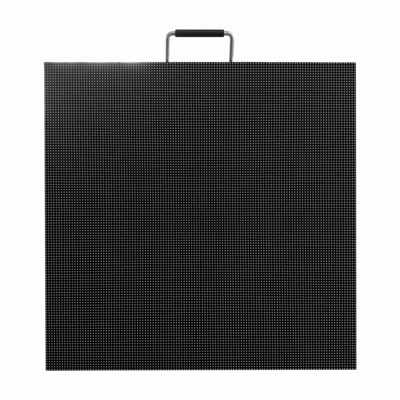

576×576mm Rental Series P3.8
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC/ETL |
| Model Number: | P3.8mm |
|
Detail Information |
|||
| Pitch: | P3.8mm | Material: | Die Cast Aluminum Cabinet |
|---|---|---|---|
| Application: | Outdoor Rental | Brightness: | 4500cd |
| Contrast Ratio: | 5000:1 | View Angle: | 140º |
| Install: | Fast Easy To Install And Uninstall | Waterproof: | IP65 |
| Refresh: | 1920-3840Hz | Characteristic: | Great Sense Of Space And Visual Tension |
| High Light: | IP65 3840Hz Outdoor Rental LED Screen,P3.91mm IP65 Rental Led Display Screen,4500cd Mobile Led Screen Hire |
||
Product Description
3840Hz Outdoor Outdoor Rental LED Screen Die Cast Aluminum Cabinet
High refresh aluminum die cast P3.91mm outdoor rental led display screen led vedio wall
Rental led display,led wall parameter:
1. The overall use of frame-type visual design, the combination of the scattered and orderly appearance of the box, the hidden upper handle and the integrated power box , not only improves the operating experience, but also forms a more differentiated brand symbol characteristics. It has a great sense of space and visual tension in the state, giving people the product characteristics of firmness, stability and strong operability
2. giving people the product characteristics of firmness, stability and strong operability
3. The bump design of the mask enhances the crash resistance of the surface of the module;
PITICH:
indoor P2.8 P3.8 P4.8
Outdoor P3.8 P4.8 P6
Module size:288x288mm
Box size: 576*576mm
| project | parameter | |
|
BASIC PARAMETER |
pixel pitch | 3.8 mm |
| pixel structure | 1R1G1B | |
| pixel density | 67817 / m2 | |
| Module resolution | 75 (W)* 75(H) | |
| Module size | 288mm*288mm | |
| Box size | 576mmX576mm | |
|
OPTIC PARAMETER |
Single point luminance, chromaticity correction | have |
| white balance brightness | ≥4500cd/㎡ | |
| color temperature | 2000K—12500K adjustable | |
| Horizontal viewing angle | ≥ 140° | |
| vertical viewing angle | ≥ 120° | |
| Visible distance | ≥8 meters | |
| Brightness uniformity | ≥97% | |
| Contrast | ≥5000:1 | |
|
Proccessing performace |
Signal processing bits | 16 bits*3 |
| grayscale | 12-14Bit | |
| control distance | Gigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers | |
| drive mode | High gray-scale constant current source driver IC | |
| frame rate | ≥ 60HZ | |
| refresh rate | 1920 -3840Hz | |
| way to control | Synchronize | |
| Brightness adjustment range | 0 to 100 stepless adjustment | |
|
Operation parameter |
Continuous working time | ≥72 hours |
| Typical life | 50,000 hours | |
| Protection class | IP 65 | |
| range of working temperature | -20℃ to 50℃ | |
| Operating humidity range | 10 %- 80% RH non-condensing | |
| Storage temperature range | -20 ℃ to 60 ℃ | |
|
Electric parameter |
Operating Voltage | DC 5V |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | |
| Maximum power consumption | 80 0W/ ㎡ | |
| Average power consumption | 3 6 0W/ ㎡ | |
