P2.97mm Indoor Rental LED Screen Vedio Panel Prive Aluminum Die Cast Box
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC |
| Model Number: | P2.97mm |
|
Detail Information |
|||
| PITCH: | 2.97mm | Module Size: | 250*250mm |
|---|---|---|---|
| Box Size: | 500*500mm | Material: | Aluminum Die Cast Cabinet |
| Brightness: | ≥1000cd | Refresh: | 3840Hz |
| Power Supply: | 100-240V | View Angle: | ≥140º |
| View Distance: | 5m | Characteristic: | Great Sense Of Space And Visual Tension In The State |
| High Light: | P2.97mm 1000cd Indoor Rental LED Screen,5m 3840Hz Indoor Rental LED Screen,P2.97mm Indoor Rental LED Panel |
||
Product Description

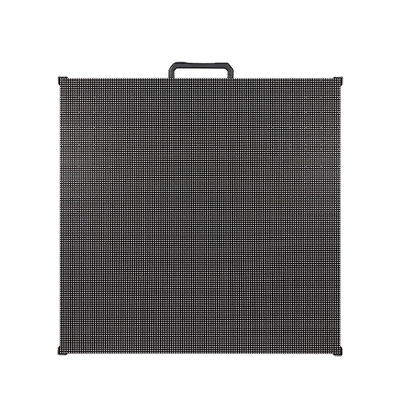

P2.97mm Indoor Rental LED Screen Vedio Panel Prive Aluminum Die Cast Box
Rental led display,led wall parameter:

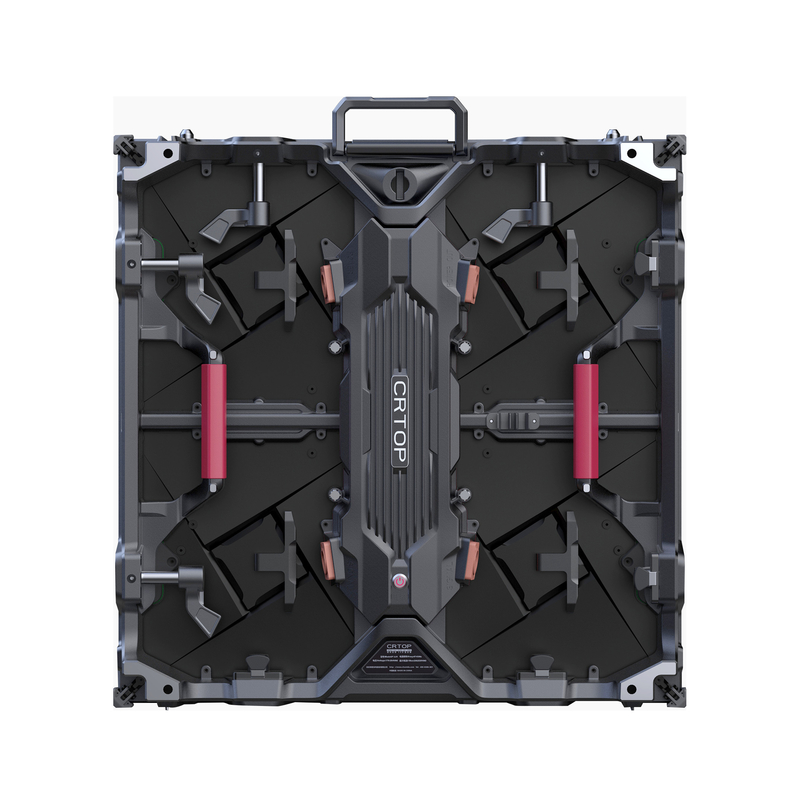

- The overall use of frame-type visual design, the combination of the scattered and orderly appearance of the box, the hidden upper handle and the integrated power box , not only improves the operating experience, but also forms a more differentiated brand symbol characteristics. It has a great sense of space and visual tension in the state, giving people the product characteristics of firmness, stability and strong operability
- The bump design of the mask enhances the crash resistance of the surface of the module; the glue filling process of the lamp feet enhances the thrust; the maintenance cost of the lamp is reduced; the super edge guard LED lamp protection structure , automatic expansion, is especially suitable for multiple disassembly and assembly, safe and convenient; The bottom of the box is specially designed to avoid bumping the lamp surface when the product is transported;
- Arc, corner and various creative shapes can be realized through positioning posts and multi-functional lock connectors ; the standard box can achieve 5° inner arc without adding custom locks or box assembly parts , providing a variety of possibilities for on- site design
4. giving people the product characteristics of firmness, stability and strong operability
5. The bump design of the mask enhances the crash resistance of the surface of the module;
6. the glue filling process of the lamp feet enhances the thrust;
PITICH:
indoor P2.604, P2.97, P3.91
Outdoor P2.97, P3.91, P4.81
Module size:250x250mm
Box size: 500*500mm
| project | parameter | Remark | |
|
BASIC PARAMETER |
pixel pitch | 2.97mm _ | |
| pixel structure | 1R1G1B | ||
| pixel density | 113367 /m 2 | ||
| Module resolution | 8 4 (W) * 8 4 (H) | ||
| Module size | 250mm*250mm | ||
| cabinet size | 500mm*500mm | die casting | |
|
OPTIC PARAMETER |
Single point luminance, chromaticity correction | have | |
| white balance brightness | ≥ 1000cd/㎡ | ||
| color temperature | 2000K—12500K adjustable | ||
| Horizontal viewing angle | ≥ 160° | ||
| vertical viewing angle | ≥ 140° | ||
| Visible distance | ≥9m | ||
| Brightness uniformity | ≥97% | ||
| Contrast | ≥5000:1 | ||
|
Proccessing performace |
Signal processing bits | 16 bits*3 | |
| grayscale | 12-14Bit | ||
| control distance | Gigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers | ||
| drive mode | High gray-scale constant current source driver IC | ||
| frame rate | ≥ 60HZ | ||
| refresh rate | ≥1920-3840 Hz | ||
| way to control | Synchronize | ||
| Brightness adjustment range | 0 to 100 stepless adjustment | ||
|
Operation parameter |
Continuous working time | ≥72 hours | |
| Typical life | 50,000 hours | ||
| Protection class | IP20 | ||
| range of working temperature | -20℃ to 50℃ | ||
| Operating humidity range | 10 %- 80% RH non-condensing | ||
| Storage temperature range | -20 ℃ to 60 ℃ | ||
|
Electric parameter |
Operating Voltage | DC 5V | |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | ||
| Maximum power consumption | 700W/ ㎡ | ||
| Average power consumption | 260W/ ㎡ | ||
