High Refresh 3840Hz Stage Rental LED Screen Video Wall Hire
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC/ETL |
| Model Number: | P3.91mm |
|
Detail Information |
|||
| Pitch: | 3.91mm | Module Size:: | 250*250mm |
|---|---|---|---|
| Box Size:: | 500*500mm | Brightness: | 1800cd |
| Waterproof: | IP20 | MASK: | PC |
| Installation Mode: | Face Shield Special Design | Characteristic: | High Wear Resistance And Flexibility |
| Refrsh: | 3840Hz | Veiw Angel: | 120² |
| High Light: | 3840Hz Stage Rental LED Screen,SMD1516 lamp Stage Rental LED Screen,1800cd LED Video Wall Hire |
||
Product Description
High Refresh 3840Hz Stage Rental LED Screen Video Wall Hire
stage indoor P3.91mm brick floor high refresh led display led panel

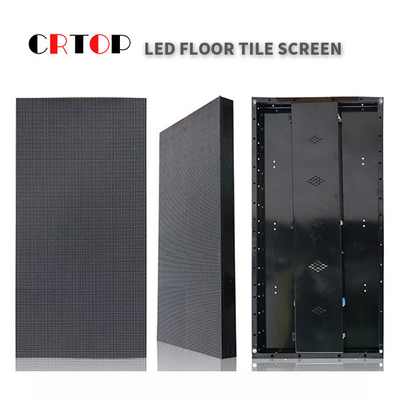

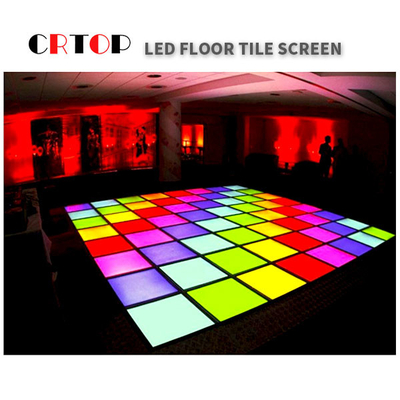

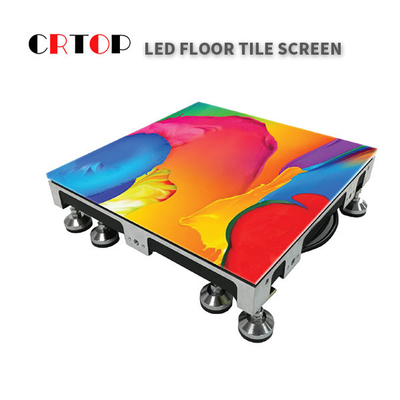

Brick /floor Stage led display
1. The bottom case, face shield, power cord and signal line of the LED floor tile screen module are specially designed and equipped with waterproof and moisture-proof materials. They are made of raw materials with low moisture absorption coefficient. The front and rear of the body can reach the waterproof level of IP 65 .
2. The LED intelligent interactive floor tile screen mask is made of imported PC material, which has high wear resistance and flexibility, as well as good high and low temperature resistance. And it is designed according to the mechanical principle, with good anti-skid and load-bearing functions.
3. Intelligent induction design to create an immersive experience scene. No need for external interactive devices, easy installation (FDQ
unique )
4. lamp:SMD1516/SMD1921
5. MODULE SIZE:250X250mm
Pitch:.
Indoor P2.97 P3.91 P4.81
Module size: 250x250mm
Outdoor P3.91 P4.81

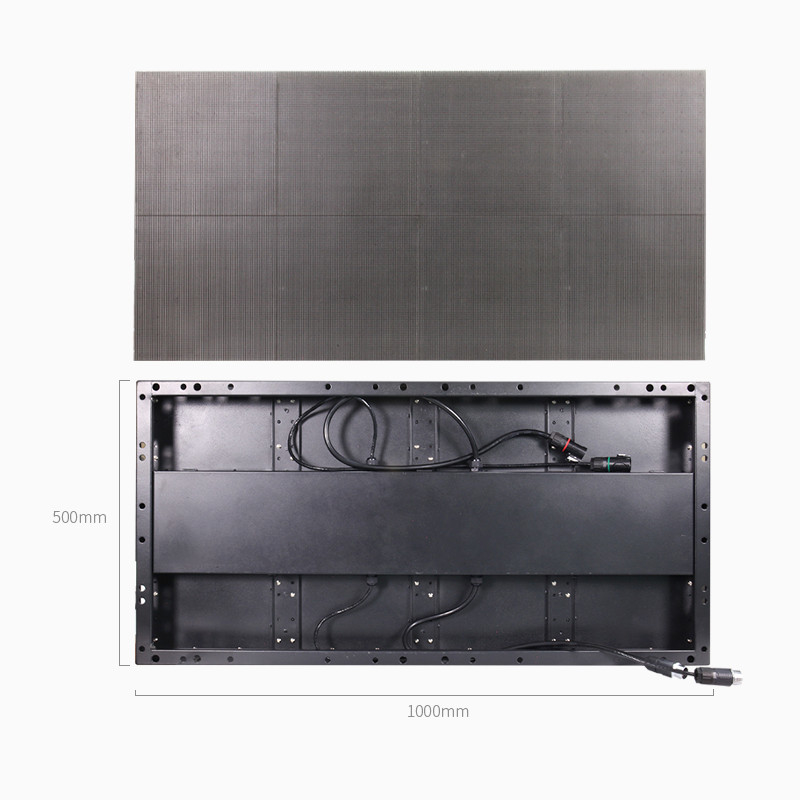

Box size: 500*500 500*1000
| P 3.91 indoor floor tile screen parameter table | |||
| serial number | name | project | Technical indicators |
| 1 | LED tube | Lamp bead shape | SMD1921 |
| 2 | pixel composition | Arrangement | vertical |
| 3 | Pixel tube spacing | 3.91 mm | |
| 4 | pixel composition | 1R1G1B | |
| 5 | base color composition | Red, green, blue three primary colors | |
| 6 | physical density | 65410 points/㎡ | |
| 7 |
module Box size |
Module size | 250×250X15 height mm (length X width X thickness) |
| 8 | Module resolution | 64 width × 64 height (dots) | |
| 9 | Box size | Iron box foot installation 1000x500mm | |
| 10 | runaway point | ≤4/100000 | |
| 11 | Unit module seam | The size of the gap between the unit plates is the same, and ≤1 mm | |
| 12 | best distance | 7-20m | |
| 13 | perspective | Horizontal 120°, Vertical 120° | |
| 14 | Surface roughness | Maximum error ≤ 1 mm | |
| 15 | Screen surface ink color | consistent ink color | |
| 16 | uniformity | Module brightness is uniform | |
| 17 | Use environment | ambient temperature | -20°～50° |
| 18 | Relative humidity | 25°～95° | |
| 19 | powered supply | Input voltage (AC) | 220V, ±10% |
| 20 | Earth leakage current | < 3Ma | |
| 21 | input frequency | 50/60HZ | |
| 22 | average power | 3 5 0W/㎡ | |
| 23 | peak power | 800W/㎡ | |
| 25 | way to control | Sync with computer VGA (monitor sync) | |
| 26 | Control System | DVI graphics card + full color control card + optical fiber transmission | |
| 27 | Input | Computer and other peripherals, VGA, HDMI, DVI, etc. | |
| 29 | refresh rate | 1920hz | |
| 30 | Grayscale/Color | Level 8192 | |
| 31 | Full screen brightness | 18 00cd/㎡ | |
| 32 | service life | More than 100,000 hours | |
| 33 | Display content | Video DVD, VCD, TV, images, text, animation, and others. | |
| 34 | Continuous trouble-free working time | ≥10000 hours | |
| 35 | interface | Standard Ethermer network interface (Gigabit) | |
| 36 | Communication medium, control distance | Multimode fiber < 500m, single mode fiber transmission < 30km, Category 5 cable < 100m | |
| 37 | protection technology | Waterproof, moisture-proof, dust-proof, anti-corrosion, anti-static, lightning-proof, with over-current/short-circuit, over-voltage, under-voltage protection functions at the same time | |
Our Services
1. 27 Years professional led display manufacturer,
2. Shot delivery time: 5-15days.
3. Factory price.
4. OEM and ODM service
5. We can design special product for you.
6. 30% deposit for producing,70% balance to be paid before shipment.
7. EXW, FOB, CIF C&F, FCA, DDU, colorful trade term.
1. After-sales service:
1) Service principles: response in time, solve problems as soon as possible and ensure the use.
2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
4) Under normal use and storage, Our Company will be responsible for the equipment.
2. Pre-sales service:
1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions.
2) Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
| Q: What is the brightness, viewing angle and wavelength of the LED? |
|
A: Luminous Intensity is equal to the amount of luminous flux emitted into a very small solid angle at a defined angular orientation from the light source. The measurement for luminous intensity is the candela. Symbol is Iv. Viewing Angle is the total cone angle in degrees encompassing the central, high luminous intensity portion of the LED beam from the on-axis peak to the off-axis point where the LED intensity is 50% of the on-axis intensity. This off-axis point is known as theta one-half ( 1/2). Two times 1/2 is the LEDs' full viewing angle; however, light is visible beyond the1/2 point. Wavelength is the distance between two points of corresponding phase and is equal to waveform velocity divided by frequency. It defines what color human eyes could recognize |
| Q: What is dominant wavelength? Please specify the ranges of wavelength in red, green and blue color respectively. |
| A: Dominant wavelength is defined as the best range of wavelength showing the most natural color recognized by human eyes. Researches indicate that fixed colors with wavelength of 620-630nm (red), 520-530nm (green) and 460-470nm (blue), in fact mixed in a particular proportion, can get the pure white. That is, in display field, people use luminous materials with above wavelength to make "compounded" white more natural.In order to get a good balance white led display, we specify the led colors with wavelength within 4nm for each color |
| Q: Which chip vendors are you buying from? |
| A: It depends on the Customer's requirement. We can purchase from Japan, Korea, Europe, USA. We are using chips mainly from Taiwan |
| Q: What is the chip size you're using for outdoor display? How about indoor display? |
| A: For outdoor display, we're using 12mil chip for red, 14mil for both green and blue. Regarding indoor display, 9mil for red, 12mil for green and blue are currently adopted |
| Q: How much will the brightness of LED drop down after 1000hrs? |
| A: Based on the result of aging test, the brightness decay of green LED is around 5%-8%, while blue is around 10%-14% and red is around 5%-8% |
