Full Color P4.81mm Stage Rental LED Display 120 Degree Veiw Angel
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC/ETL |
| Model Number: | P4.81mm |
|
Detail Information |
|||
| Pitch: | 4.81mm | Box Size:: | 500*500mm |
|---|---|---|---|
| Brightness: | 1800cd | Waterproof: | IP20 |
| MASK: | PC | Refrsh: | 3840Hz |
| Veiw Angel: | 120 Degree | Installation: | Guide Rail Installation |
| View Distance: | 5m | Characteristic: | Create An Immersive Experience Scene |
| High Light: | P4.81mm Stage Rental LED Display,IP20 Stage Rental LED Display,P4.81mm Full Color LED Display |
||
Product Description
Full Color P4.81mm Stage Rental LED Display 120 Degree Veiw Angel
big culture actvity indoor P4.81mm full color floor high refresh led display led panel

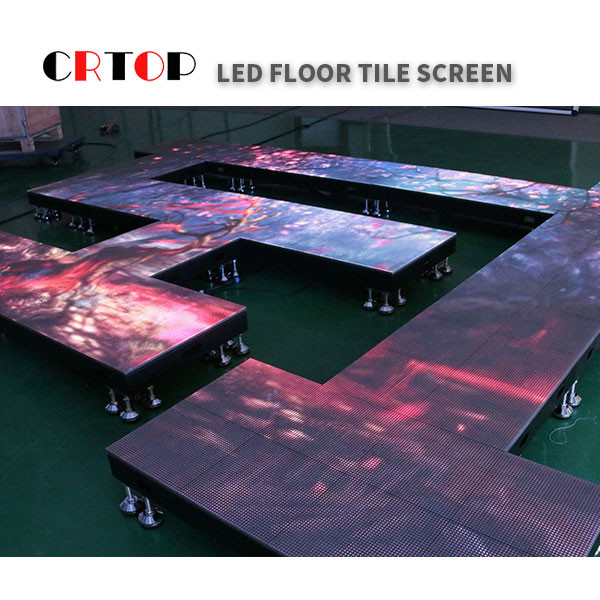

Brick /floor Stage led display
1. The bottom case, face shield, power cord and signal line of the LED floor tile screen module are specially designed and equipped with waterproof and moisture-proof materials. They are made of raw materials with low moisture absorption coefficient. The front and rear of the body can reach the waterproof level of IP 65 .
2. The LED intelligent interactive floor tile screen mask is made of imported PC material, which has high wear resistance and flexibility, as well as good high and low temperature resistance. And it is designed according to the mechanical principle, with good anti-skid and load-bearing functions.
3. Intelligent induction design to create an immersive experience scene. No need for external interactive devices, easy installation (FDQ
unique )
4. Intelligent induction design to create an immersive experience scene. No need for external interactive devices, easy installation (FDQ
unique )
12.brightness:18 00cd/㎡
Pitch:.
Indoor P2.97 P3.91 P4.81
Module size: 250x250mm
Outdoor P3.91 P4.81
Box size: 500*500 500*1000
| P 4.81 Indoor floor tile screen parameter table | |||
| serial number | name | project | Technical indicators |
| 1 | LED tube | Lamp bead shape | SMD1 921 |
| 2 | pixel composition | Arrangement | vertical |
| 3 | Pixel tube spacing | 4.81 mm | |
| 4 | pixel composition | 1R1G1B | |
| 5 | base color composition | Red, green, blue three primary colors | |
| 6 | physical density | 43264 points/㎡ | |
| 7 |
module Box size |
Module size | 250×250X15 height mm (length X width X thickness) |
| 8 | Module resolution | 52 width × 52 height (dots) | |
| 9 | Box size | Iron box foot installation 1000x500mm | |
| 10 | runaway point | ≤4/100000 | |
| 11 | Unit module seam | The size of the gap between the unit plates is the same, and ≤1 mm | |
| 12 | best distance | 7-20m | |
| 13 | perspective | Horizontal 120°, Vertical 120° | |
| 14 | Surface roughness | Maximum error ≤ 1 mm | |
| 15 | Screen surface ink color | consistent ink color | |
| 16 | uniformity | Module brightness is uniform | |
| 17 | Use environment | ambient temperature | -20°～50° |
| 18 | Relative humidity | 25°～95° | |
| 19 | powered supply | Input voltage (AC) | 220V, ±10% |
| 20 | Earth leakage current | < 3Ma | |
| 21 | input frequency | 50/60HZ | |
| 22 | average power | 3 5 0W/㎡ | |
| 23 | peak power | 800W/㎡ | |
| 25 | way to control | Sync with computer VGA (monitor sync) | |
| 26 | Control System | DVI graphics card + full color control card + optical fiber transmission | |
| 27 | Input | Computer and other peripherals, VGA, HDMI, DVI, etc. | |
| 29 | refresh rate | 1920hz | |
| 30 | Grayscale/Color | Level 8192 | |
| 31 | Full screen brightness | 18 00cd/㎡ | |
| 32 | service life | More than 100,000 hours | |
| 33 | Display content | Video DVD, VCD, TV, images, text, animation, and others. | |
| 34 | Continuous trouble-free working time | ≥10000 hours | |
| 35 | interface | Standard Ethermer network interface (Gigabit) | |
| 36 | Communication medium, control distance | Multimode fiber < 500m, single mode fiber transmission < 30km, Category 5 cable < 100m | |
| 37 | protection technology | Waterproof, moisture-proof, dust-proof, anti-corrosion, anti-static, lightning-proof, with over-current/short-circuit, over-voltage, under-voltage protection functions at the same time | |
