waterproof IP20 Stage Video Wall 1800cd High Brightness Led Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC/ETL |
| Model Number: | P2.97mm |
|
Detail Information |
|||
| Pitch: | 2.97mm | Module Size: | 250*250mm |
|---|---|---|---|
| Box Size: | 500*500mm | Brightness: | 1800cd |
| Waterproof: | IP20 | MASK: | PC |
| Installation Mode: | Face Shield Special Design | Characteristic: | Equipped With Waterproof And Moisture-proof Materials |
| Refrsh: | 3840Hz | ||
| High Light: | IP20 Stage Video Wall,1800cd Stage Video Wall,1800cd High Brightness Led Display |
||
Product Description
Waterproof IP20 Stage Video Wall 1800cd High Brightness Led Display
source manufacturer indoor P2.97mm stage floor PC mask led display

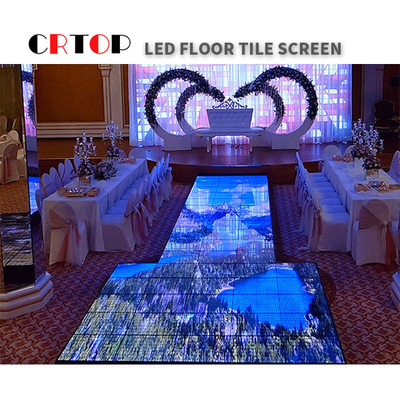

Brick /floor Stage led display

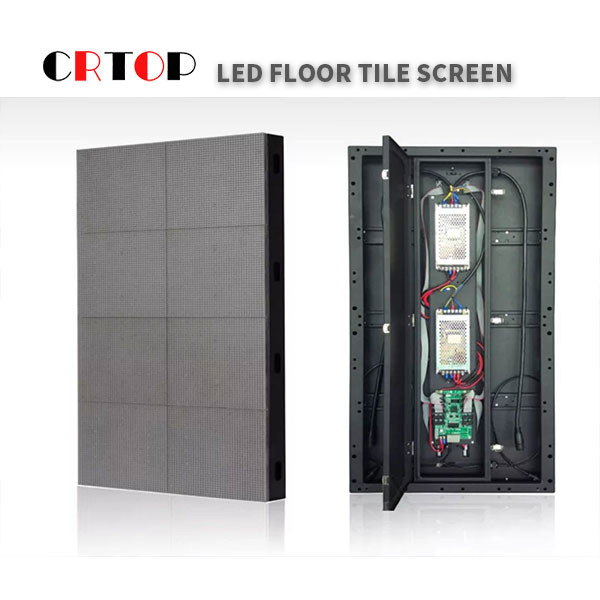

1. The bottom case, face shield, power cord and signal line of the LED floor tile screen module are specially designed and equipped with waterproof and moisture-proof materials. They are made of raw materials with low moisture absorption coefficient. The front and rear of the body can reach the waterproof level of IP 65 .
2. The LED intelligent interactive floor tile screen mask is made of imported PC material, which has high wear resistance and flexibility, as well as good high and low temperature resistance. And it is designed according to the mechanical principle, with good anti-skid and load-bearing functions.
3. Floor mopping installation, guide rail installation, steel frame installation, ground raised installation and embedded installation , suitable for various occasions,
Pitch:.
Indoor P2.97 P3.91 P4.81
Module size: 250x250mm
Outdoor P3.91 P4.81
Box size: 500*500 500*1000
| P 2.97 Indoor floor tile screen parameter table | |||
| serial number | name | project | Technical indicators |
| 1 | LED tube | Lamp bead shape | SMD 1516 |
| 2 | pixel composition | Arrangement | vertical |
| 3 | Pixel tube spacing | 2.976mm _ | |
| 4 | pixel composition | 1R1G1B | |
| 5 | base color composition | Red, green, blue three primary colors | |
| 6 | physical density | 112896 points/㎡ | |
| 7 |
module Box size |
Module size | 2 5 0×2 5 0X15 height mm (length X width X thickness) |
| 8 | Module resolution | 84 width × 84 height (dots) | |
| 9 | Box size | Iron box foot installation 1000x500mm | |
| 10 | runaway point | ≤4/100000 | |
| 11 | Unit module seam | The size of the gap between the unit plates is the same, and ≤1 mm | |
| 12 | best distance | 7-20m | |
| 13 | perspective | Horizontal 120°, Vertical 120° | |
| 14 | Surface roughness | Maximum error ≤ 1 mm | |
| 15 | Screen surface ink color | consistent ink color | |
| 16 | uniformity | Module brightness is uniform | |
| 17 | Use environment | ambient temperature | -20°～50° |
| 18 | Relative humidity | 25°～95° | |
| 19 | Power supply | Input voltage (AC) | 220V, ±10% |
| 20 | Earth leakage current | < 3Ma | |
| 21 | input frequency | 50/60HZ | |
| 22 | average power | 3 5 0W/㎡ | |
| 23 | peak power | 800W/㎡ | |
| 25 | way to control | Sync with computer VGA (monitor sync) | |
| 26 | Control System | DVI graphics card + full color control card + optical fiber transmission | |
| 27 | Input | Computer and other peripherals, VGA, HDMI, DVI, etc. | |
| 29 | refresh rate | 1920hz | |
| 30 | Grayscale/Color | Level 8192 | |
| 31 | Full screen brightness | 18 00cd/㎡ | |
| 32 | service life | More than 100,000 hours | |
| 33 | Display content | Video DVD, VCD, TV, images, text, animation, and others. | |
| 34 | Continuous trouble-free working time | ≥10000 hours | |
| 35 | interface | Standard Ethermer network interface (Gigabit) | |
| 36 | Communication medium, control distance | Multimode fiber < 500m, single mode fiber transmission < 30km, Category 5 cable < 100m | |
| 37 | protection technology | Waterproof, moisture-proof, dust-proof, anti-corrosion, anti-static, lightning-proof, with over-current/short-circuit, over-voltage, under-voltage protection functions at the same time | |
