Vertical P3.91mm Stage Rental LED Screen Video Wall SMD1921 Lamp
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC/ETL |
| Model Number: | P3.91mm |
|
Detail Information |
|||
| Pitch: | 3.91mm | Module Size: | 250*250mm |
|---|---|---|---|
| Box Size: | 500*500mm | Brightness: | 1800cd |
| Waterproof: | IP20 OR IP65 | MASK: | PC |
| Installation Mode: | Ground Drag Installation, Rail Installation, Steel Installation, Ground Raised Installation And Embedded Installation | Characteristic: | Intelligent Sensing Design Creates Immersive Experience Scenes |
| High Light: | P3.91mm Stage Rental LED Screen,SMD1921 Stage Rental LED Screen,SMD1921 Lamp Led Video Wall Rental |
||
Product Description
Vertical P3.91mm Stage Rental LED Screen Video Wall SMD1921 Lamp
source manufacturere P3.91mm stage floor brick led display used in stage activity etc
Brick /floor Stage led display
1. The bottom case, face shield, power cord and signal line of the LED floor tile screen module are specially designed and equipped with waterproof and moisture-proof materials. They are made of raw materials with low moisture absorption coefficient. The front and rear of the body can reach the waterproof level of IP 65 .
2. The LED intelligent interactive floor tile screen mask is made of imported PC material, which has high wear resistance and flexibility, as well as good high and low temperature resistance. And it is designed according to the mechanical principle, with good anti-skid and load-bearing functions.
3. Floor mopping installation, guide rail installation, steel frame installation, ground raised installation and embedded installation , suitable for various occasions,
4. Intelligent induction design to create an immersive experience scene. No need for external interactive devices, easy installation (FDQ
unique )
Pitch:.
Indoor P2.97 P3.91 P4.81

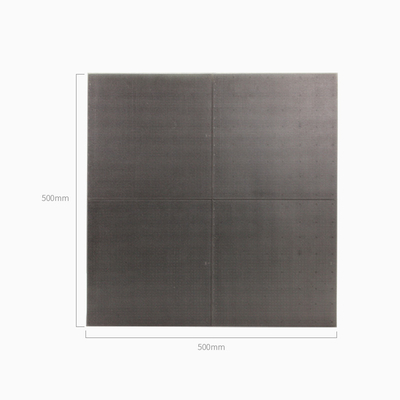

Module size: 250x250mm
Outdoor P3.91 P4.81

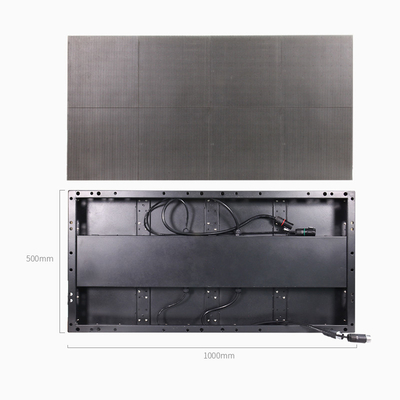

Box size: 500*500 500*1000
| P 3.91 indoor floor tile screen parameter table | ||||
| serial number | name | project | Technical indicators | |
| 1 | LED tube | Lamp bead shape | SMD1921 | |
| 2 | pixel composition | Arrangement | vertical | |
| 3 | Pixel tube spacing | 3.91 mm | ||
| 4 | pixel composition | 1R1G1B | ||
| 5 | base color composition | Red, green, blue three primary colors | ||
| 6 | physical density | 65410 points/㎡ | ||
| 7 |
module Box size |
Module size | 250×250X15 height mm (length X width X thickness) | |
| 8 | Module resolution | 64 width × 64 height (dots) | ||
| 9 | Box size | Iron box foot installation 1000x500mm | ||
| 10 | runaway point | ≤4/100000 | ||
| 11 | Unit module seam | The size of the gap between the unit plates is the same, and ≤1 mm | ||
| 12 | best distance | 7-20m | ||
| 13 | perspective | Horizontal 120°, Vertical 120° | ||
| 14 | Surface roughness | Maximum error ≤ 1 mm | ||
| 15 | Screen surface ink color | consistent ink color | ||
| 16 | uniformity | Module brightness is uniform | ||
| 17 | Use environment | ambient temperature | -20°～50° | |
| 18 | Relative humidity | 25°～95° | ||
| 19 | powered supply | Input voltage (AC) | 220V, ±10% | |
| 20 | Earth leakage current | < 3Ma | ||
| twenty one | input frequency | 50/60HZ | ||
| twenty two | average power | 3 5 0W/㎡ | ||
| twenty three | peak power | 800W/㎡ | ||
| 25 | way to control | Sync with computer VGA (monitor sync) | ||
| 26 | Control System | DVI graphics card + full color control card + optical fiber transmission | ||
| 27 | Input | Computer and other peripherals, VGA, HDMI, DVI, etc. | ||
| 29 | refresh rate | 1920hz | ||
| 30 | Grayscale/Color | Level 8192 | ||
| 31 | Full screen brightness | 18 00cd/㎡ | ||
| 32 | service life | More than 100,000 hours | ||
| 33 | Display content | Video DVD, VCD, TV, images, text, animation, and others. | ||
| 34 | Continuous trouble-free working time | ≥10000 hours | ||
| 35 | interface | Standard Ethermer network interface (Gigabit) | ||
| 36 | Communication medium, control distance | Multimode fiber < 500m, single mode fiber transmission < 30km, Category 5 cable < 100m | ||
| 37 | protection technology | Waterproof, moisture-proof, dust-proof, anti-corrosion, anti-static, lightning-proof, with over-current/short-circuit, over-voltage, under-voltage protection functions at the same time | ||
