1R1G1B 2500cd Car LED Advertising Screen With Strong Flexibility
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC/ETL |
| Model Number: | P2.6 -P5.2mm |
| Detail Information | |||
| Product Number: | P2.6 -P5.2 | Module Size: | W 156mm * H 249.6mm |
|---|---|---|---|
| Physical Point Spacing: | W5.2mm*H P2.6mm | Pixel Density: | 73 964 Pixels/m² |
| Module Resolution: | 30 (W)* 96 (H) | Refresh Rate: | ≥1920Hz |
| White Balance Brightness: | 2500cd | Protection Class: | IP30 |
| Cabinet Resolution: | W1 5 0*H 96 Dots | Drive Mode: | Constant Current Drive |
| Grayscale/Color: | Class 16384 | ||
| High Light: | 1R1G1B Car LED Advertising Screen,2500cd Car LED Advertising Screen,2500cd Car LED Sign Display | ||
Product Description

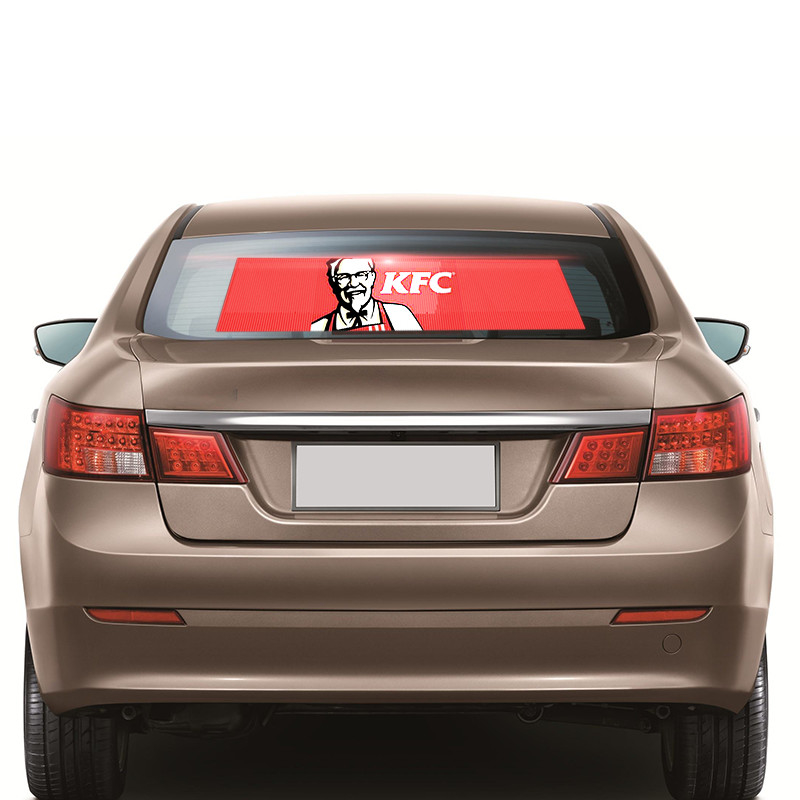

1R1G1B 2500cd Car LED Advertising Screen With Strong Flexibility
Strong flexibility and stable performance P2.6 -P5.2mm car LED Advertising Screen
1. Where the car is , where is the screen . The on- board screen accompanies the vehicle to flow to cities , towns , and villages , and can still continuously receive , store , and display information during the flow , so it has a wide range of publications and can be targeted for For vehicle functionality , combined with big data , targeted , fixed- area , and timed delivery of response content ( especially advertising content ) , to efficiently and accurately reflect the core demands of content providers . Reach the most valuable audience .
2. Series also supports WiFi i A P connection (you can use the phone directly APP _ control screen ), support 4G _ module , support USB direct connection PC , support remote centralized publishing and monitoring , support stereo audio output , support U _ The disc program is imported and played . The screen control methods are diversified , and can be adjusted and managed according to the actual application . Among them , the cluster control screen cloud platform has set multi -level permissions to ensure the security of the content played on the screen .
3. The P2.6 car transparent screen, the basic white balance brightness is above 2500cd , so it can easily adapt to various weather conditions, the picture is always bright and clear, all-weather display.
|









 module
 | project | parameter |
| Product number | P2.6 -P5.2 | |
| Module size | W 156mm * H 249.6mm | |
| Physical point spacing | W5.2mm*H P2.6mm | |
| pixel density | 73 964 pixels/m² | |
| Glowing point color | 1R1G1B | |
| LED package | SMD1921 | |
| Module Resolution | 30 (W)* 96 (H) | |
| drive mode | Constant current drive | |
| white balance brightness | 2500cd/m 2 | |
| refresh rate | ≥1920Hz | |
|






 LED Box | Dimensions of the outer edge of the box | W 786.4 mm*H 256 mm |
| Display area size
 | W 780mm * H 249.6mm | |
| Number of single modules | 5pcs _ | |
| Power supply | Vehicle power supply | |
| Cabinet resolution | W1 5 0*H 96 dots | |
| box material quality | Acrylic whole board | |
| Closest viewing distance | 4m |
|




 LED box | perspective | 140°(W) 140°(H) |
| ambient temperature | -20℃~+ 70 ℃ | |
| Relative humidity | 10%-75% non-condensing | |
| Protection class | IP3 0 ( This product is strictly waterproof , can not get wet , can not be washed ) | |
| Overall thickness | 55 mm (including power supply) | |
| match system card | Carlette / Xixun | |
|


 The main technical parameters | Operating Voltage | AC 12V (vehicle light modification) |
| Average power consumption | < 45W _ | |
| Maximum power consumption | < 100W _ | |
| way to control
 | Default asynchronous control | |
|
 Grayscale/Color | Class 16384 | |
| MTBF | >9000hours |
