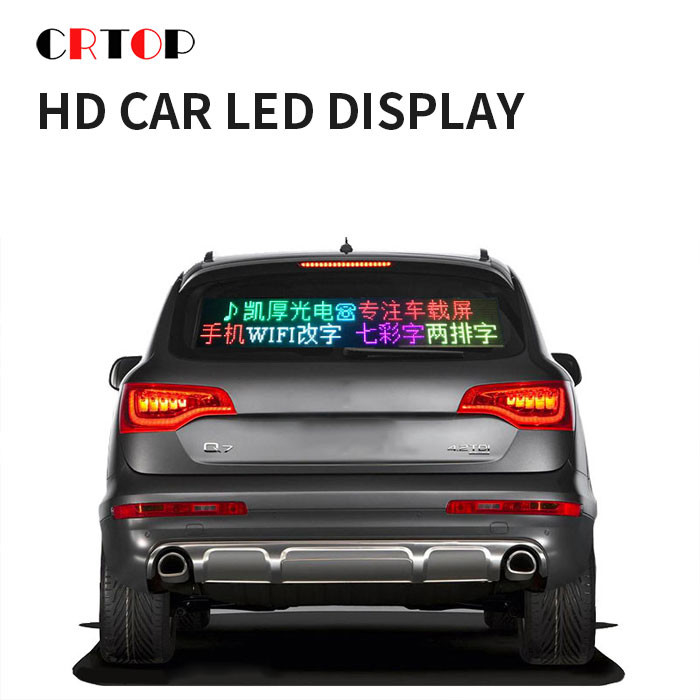

1R1G1B Transparent Car Rear Window LED Display Energy Saving
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC/ETL |
| Model Number: | P2.6 -P5.2mm |
|
Detail Information |
|||
| Product Number: | P2.6 -P5.2mm | Pixel Density: | 73 964 Pixels/m² |
|---|---|---|---|
| Power Supply: | Vehicle Power Supply | Cabinet Resolution: | W1 5 0*H 96 Dots |
| Closest Viewing Distance: | 4m | Ambient Temperature: | -20℃～+ 70 ℃ |
| Relative Humidity: | 10%-75% Non-condensing | Overall Thickness: | 55 Mm (including Power Supply) |
| High Light: | 1R1G1B Car Rear Window LED Display,2500cd Car Rear Window LED Display,1R1G1B Led Sign Back Window |
||
Product Description
1R1G1B Transparent Car Rear Window LED Display Energy Saving
Energy saving P2.6 -P5.2mm transparent Car Led screen
1. The screen is designed with light bar grid, with good light transmission
Between the LED transparent screen light strips is a physical hollowed-out light-transmitting area, with a light transmittance of about 50%, so it will not completely block the lighting and will not affect the driver's safe driving.
2. High brightness, self-adjusting, all-weather application
When the brightness of the display device is lower than the ambient brightness, the picture will be difficult to see, and the brightness of display devices such as car projection is only 200-1000nits, so if it is applied to the rear window of the car, it can only be used on cloudy days or in the evening.
3. Strong flexibility, wide release and high communication rate
Where the car is , where is the screen . The on- board screen accompanies the vehicle to flow to cities , towns , and villages , and can still continuously receive , store , and display information during the flow , so it has a wide range of publications and can be targeted for For vehicle functionality , combined with big data , targeted , fixed- area , and timed delivery of response content ( especially advertising content ) , to efficiently and accurately reflect the core demands of content providers . Reach the most valuable audience .
Cabinet resolution :W1 5 0*H 96 dots
box material quality: Acrylic whole board
Closest viewing distance: 4m
Average power consumption :< 45W
Maximum power consumption: < 100W
|
module
|
project | parameter |
| Product number | P2.6 -P5.2 | |
| Module size | W 156mm * H 249.6mm | |
| Physical point spacing | W5.2mm*H P2.6mm | |
| pixel density | 73 964 pixels/m² | |
| Glowing point color | 1R1G1B | |
| LED package | SMD1921 | |
| Module Resolution | 30 (W)* 96 (H) | |
| drive mode | Constant current drive | |
| white balance brightness | 2500cd/m 2 | |
| refresh rate | ≥1920Hz | |
|
LED Box |
Dimensions of the outer edge of the box | W 786.4 mm*H 256 mm |
|
Display area size
|
W 780mm * H 249.6mm | |
| Number of single modules | 5pcs _ | |
| Power supply | Vehicle power supply | |
| Cabinet resolution | W1 5 0*H 96 dots | |
| box material quality | Acrylic whole board | |
| Closest viewing distance | 4m |
|
LED box |
perspective | 140°(W) 140°(H) |
| ambient temperature | -20℃～+ 70 ℃ | |
| Relative humidity | 10%-75% non-condensing | |
| Protection class | IP3 0 ( This product is strictly waterproof , can not get wet , can not be washed ) | |
| Overall thickness | 55 mm (including power supply) | |
| match system card | Carlette / Xixun | |
|
The main technical parameters |
Operating Voltage | AC 12V (vehicle light modification) |
| Average power consumption | < 45W _ | |
| Maximum power consumption | < 100W _ | |
|
way to control
|
Default asynchronous control | |
|
Grayscale/Color |
Class 16384 | |
| MTBF | >9000hours |
