High Protection P5.2 Car LED Advertising Screen Good Light Transmission
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC/ETL |
| Model Number: | P2.6 -P5.2mm |
|
Detail Information |
|||
| Product Number: | P2.6 -P5.2 | Module Size: | W 156mm * H 249.6mm |
|---|---|---|---|
| Physical Point Spacing: | W5.2mm*H P2.6mm | Pixel Density: | 73 964 Pixels/m² |
| Module Resolution: | 30 (W)* 96 (H) | Refresh Rate: | ≥1920Hz |
| White Balance Brightness: | 2500cd/m 2 | Protection Class: | IP30 |
| Box Material Quality: | Acrylic Whole Board | Drive Mode: | Constant Current Drive |
| High Light: | P5.2mm Car LED Advertising Screen,P2.6mm Car LED Advertising Screen,P5.2mm Car Transparent Screen |
||
Product Description

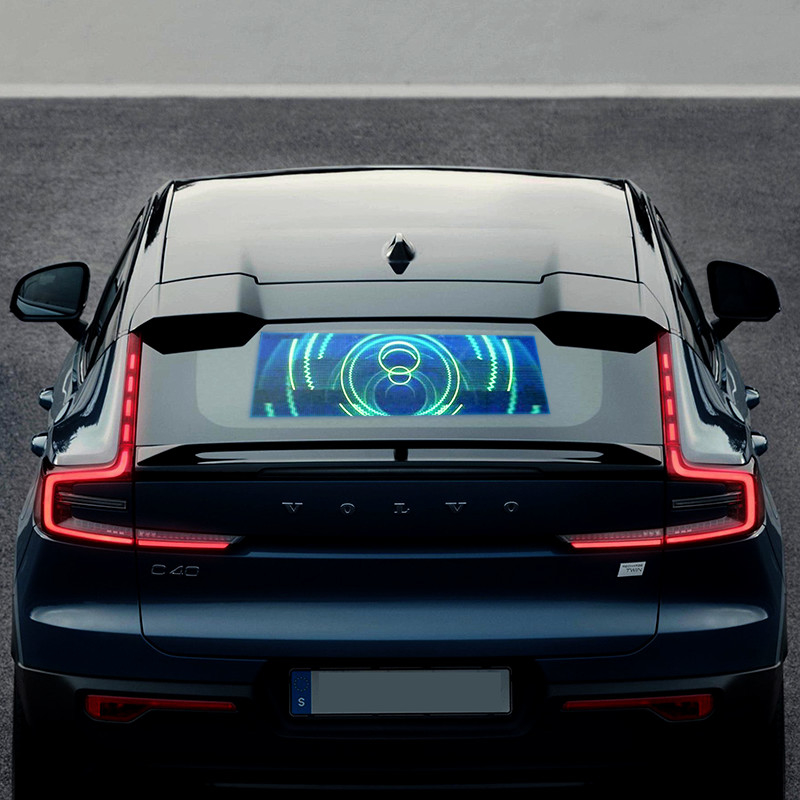

High Protection P5.2 Car LED Advertising Screen Good Light Transmission
good light transmission and high protection P2.6 -P5.2mm car transparent screen
1. Between the LED transparent screen light strips is a physical hollowed-out light-transmitting area, with a light transmittance of about 50%, so it will not completely block the lighting and will not affect the driver's safe driving.
2. P 5.2- P2. 6 All the wires are gathered insulation protection , and the back of the screen is made of a full-face acrylic board , which is a two-way protection for the screen and passengers . Passengers can not directly touch the screen body , eliminating the need for Except for the safety hazard .
3.The P2.6 car transparent screen, the basic white balance brightness is above 2500cd , so it can easily adapt to various weather conditions, the picture is always bright and clear, all-weather display.
|
module
|
project | parameter |
| Product number | P2.6 -P5.2 | |
| Module size | W 156mm * H 249.6mm | |
| Physical point spacing | W5.2mm*H P2.6mm | |
| pixel density | 73 964 pixels/m² | |
| Glowing point color | 1R1G1B | |
| LED package | SMD1921 | |
| Module Resolution | 30 (W)* 96 (H) | |
| drive mode | Constant current drive | |
| white balance brightness | 2500cd/m 2 | |
| refresh rate | ≥1920Hz | |
|
LED Box |
Dimensions of the outer edge of the box | W 786.4 mm*H 256 mm |
|
Display area size
|
W 780mm * H 249.6mm | |
| Number of single modules | 5pcs _ | |
| Power supply | Vehicle power supply | |
| Cabinet resolution | W1 5 0*H 96 dots | |
| box material quality | Acrylic whole board | |
| Closest viewing distance | 4m |
|
LED box |
perspective | 140°(W) 140°(H) |
| ambient temperature | -20℃～+ 70 ℃ | |
| Relative humidity | 10%-75% non-condensing | |
| Protection class | IP3 0 ( This product is strictly waterproof , can not get wet , can not be washed ) | |
| Overall thickness | 55 mm (including power supply) | |
| match system card | Carlette / Xixun | |
|
The main technical parameters |
Operating Voltage | AC 12V (vehicle light modification) |
| Average power consumption | < 45W _ | |
| Maximum power consumption | < 100W _ | |
|
way to control
|
Default asynchronous control | |
|
Grayscale/Color |
Class 16384 | |
| MTBF | >9000hours |
