COB Fine Pixel Pitch Series P1.25mm
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE Rohs FCC EMC ETL RSE |
| Model Number: | P1.25mm |
|
Detail Information |
|||
| PITCH: | 1.25mm | Cabinet: | Die Cast Aluminum |
|---|---|---|---|
| Strength: | Low Blue Ray | View Angle: | 140º |
| Refresh: | 3840Hz | Maintain Mode: | Front Maintain |
| Box Size: | 600*337.5mm | Brightness: | ≥600cd |
| Characteristic: | Energy Efficiency Conversion Is Up To 95% | ||
| High Light: | P2.5mm Fine Pitch LED Screen,480*480mm Box Fine Pitch LED Screen,600cd Advertising LED Screen |
||
Product Description
Product features:

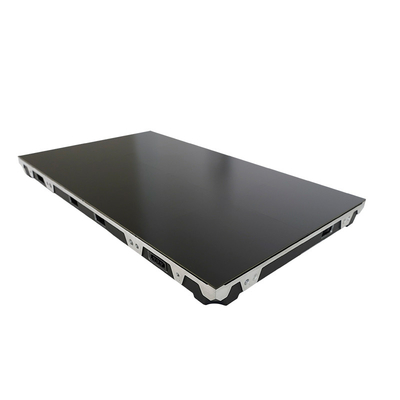

- Ultra light and thin die-cast aluminium cabinet with high flatness, only 28mm thick and weighing only 3.2KG.
- Ultra High Reliability.There are no exposed pins and anti-static breakdown, which improves the reliability
- and stability of the display.
- High IP Grade and Easy to Clean.COB Truly Fully Sealed structure enables it moisture resistance, anti-collision,
- prevention of pollution damage, and easier cleaning of the device surface.
- High Brightness and Anti Glare. Can effectively control the brightness of the pixel center, reduce the intensity of
- light radiation, inhibit moiré, glare and glare to the retina.
- Wide Viewing Angle. The viewing angle can be up to 175° horizontally and vertically. No color deviation from
- any direction.
- Better Heat Dissipation. COB packaged LED display encapsulates the LEDs on the PCB board, so the heat is easy
- to be dissipated, hardly causing light attenuation, greatly extending the life of the display.
- Adopts Common Cathode design, lower power consumption, can effectively reduce power consumption by 25% to
- 50%. Environmental protection and energy saving, additionally extend the life span of the screen.
- High refresh rate 3840Hz, dynamic ghostless, no smearing, wider color gamut, uniform brightness, broadcast-grade
- grayscale processing, bringing realistic and natural picture transitions.
Parameter:
| Item | Parameter | ||
| Basic Parameter | |||
| Pixel Pitch | 0.9375mm | 1.25mm | 1.56mm |
| Pixel Structure | Flip Chip COB | Flip Chip COB | Flip Chip COB |
| Pixel Density | 1137777 dots/m2 | 640000 dots/m2 | 409600 dots/m2 |
| Module Resolution | 320*180 | 240*135 | 192*108 |
| Module Size(WXH) | 300X168.75mm | 300X168.75mm | 300X168.75mm |
| Cabinet Size(WXH) | 600X337.5mm | 600X337.5mm | 600X337.5mm |
| Cabinet Resolution | 640X360 | 480X270 | 384X216 |
| Optical Parameter | |||
|
Single Point Brightness, Chroma Correction |
support | support | support |
| White Balance Brightness | ≥600cd/㎡ | ≥600cd/㎡ | ≥600cd/㎡ |
| Color Temperature | 2000—12500K | 2000—12500K | 2000—12500K |
| Horizontal Viewing Angle | 175 Deg. | 175 Deg. | 175 Deg. |
| Vertical Viewing Angle | 175 Deg. | 175 Deg. | 175 Deg. |
| Visible Distance | 1 meters | 2 meters | 3 meters |
| Brightness Uniformity | ≥97% | ≥97% | ≥97% |
| Contrast Ratio | ≥20000:1 | ≥20000:1 | ≥20000:1 |
| Process Performance | |||
| Signal processing bits | 16bits*3 | 16bits*3 | 16bits*3 |
| Gray scale | 16Bit | 16Bit | 16Bit |
| Control Distance |
Cable: 100 m,Optical Fiber:10km |
Cable: 100 m,Optical Fiber:10km |
Cable: 100 m,Optical Fiber:10km |
| Drive Mode | constant current source driver | constant current source driver | constant current source driver |
| Frame Rate | ≥60HZ | ≥60HZ | ≥60HZ |
| Refresh Rate | 3840HZ | 3840HZ | 3840HZ |
| Way to Control | Synchronize | Synchronize | Synchronize |
| Brightness Adjustment Range | 0-100 Stepless Adjustment | 0-100 Stepless Adjustment | 0-100 Stepless Adjustment |
| Usage Parameter | |||
| Continuous Operation Time | ≥72Hours | ≥72Hours | ≥72Hours |
| Expected LED Lifetime(Max) | >100,000 Hours | >100,000 Hours | >100,000 Hours |
| IP Rating | IP65/IP20 | IP65/IP20 | IP65/IP20 |
| Operating Temperature | -20 ℃ to 50 ℃ | -20 ℃ to 50 ℃ | -20 ℃ to 50 ℃ |
| Operating Humidity | 10 %- 90% RH | 10 %- 90% RH | 10 %- 90% RH |
| Storage Temperature | -20 ℃ to 60 ℃ | -20 ℃ to 60 ℃ | -20 ℃ to 60 ℃ |
| Electrical Parameter | |||
| Operating Voltage | DC: 4.2-5V | DC: 4.2-5V | DC: 4.2-5V |
| Power Input | AC110-240V,50/60Hz | AC110-240V,50/60Hz | AC110-240V,50/60Hz |
| Maximum power consumption | 500W/㎡ | 500W/㎡ | 500W/㎡ |
| Average power consumption | 260W/㎡ | 260W/㎡ | 260W/㎡ |
Our Services
1. 27 Years professional led display manufacturer,
2. Shot delivery time: 5-15days.
3. Factory price.
4. OEM and ODM service
5. We can design special product for you.
6. 30% deposit for producing,70% balance to be paid before shipment.
7. EXW, FOB, CIF C&F, FCA, DDU, colorful trade term.
1. After-sales service:
1) Service principles: response in time, solve problems as soon as possible and ensure the use.
2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
4) Under normal use and storage, Our Company will be responsible for the equipment.
2. Pre-sales service:
1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions.
2) Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
| Q: What is the brightness, viewing angle and wavelength of the LED? |
|
A: Luminous Intensity is equal to the amount of luminous flux emitted into a very small solid angle at a defined angular orientation from the light source. The measurement for luminous intensity is the candela. Symbol is Iv. Viewing Angle is the total cone angle in degrees encompassing the central, high luminous intensity portion of the LED beam from the on-axis peak to the off-axis point where the LED intensity is 50% of the on-axis intensity. This off-axis point is known as theta one-half ( 1/2). Two times 1/2 is the LEDs' full viewing angle; however, light is visible beyond the1/2 point. Wavelength is the distance between two points of corresponding phase and is equal to waveform velocity divided by frequency. It defines what color human eyes could recognize |
| Q: What is dominant wavelength? Please specify the ranges of wavelength in red, green and blue color respectively. |
| A: Dominant wavelength is defined as the best range of wavelength showing the most natural color recognized by human eyes. Researches indicate that fixed colors with wavelength of 620-630nm (red), 520-530nm (green) and 460-470nm (blue), in fact mixed in a particular proportion, can get the pure white. That is, in display field, people use luminous materials with above wavelength to make "compounded" white more natural.In order to get a good balance white led display, we specify the led colors with wavelength within 4nm for each color |
| Q: Which chip vendors are you buying from? |
| A: It depends on the Customer's requirement. We can purchase from Japan, Korea, Europe, USA. We are using chips mainly from Taiwan |
| Q: What is the chip size you're using for outdoor display? How about indoor display? |
| A: For outdoor display, we're using 12mil chip for red, 14mil for both green and blue. Regarding indoor display, 9mil for red, 12mil for green and blue are currently adopted |
| Q: How much will the brightness of LED drop down after 1000hrs? |
| A: Based on the result of aging test, the brightness decay of green LED is around 5%-8%, while blue is around 10%-14% and red is around 5%-8% |
