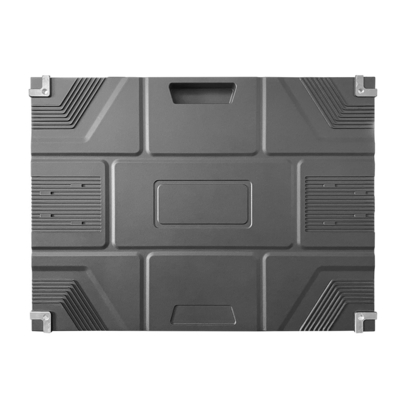

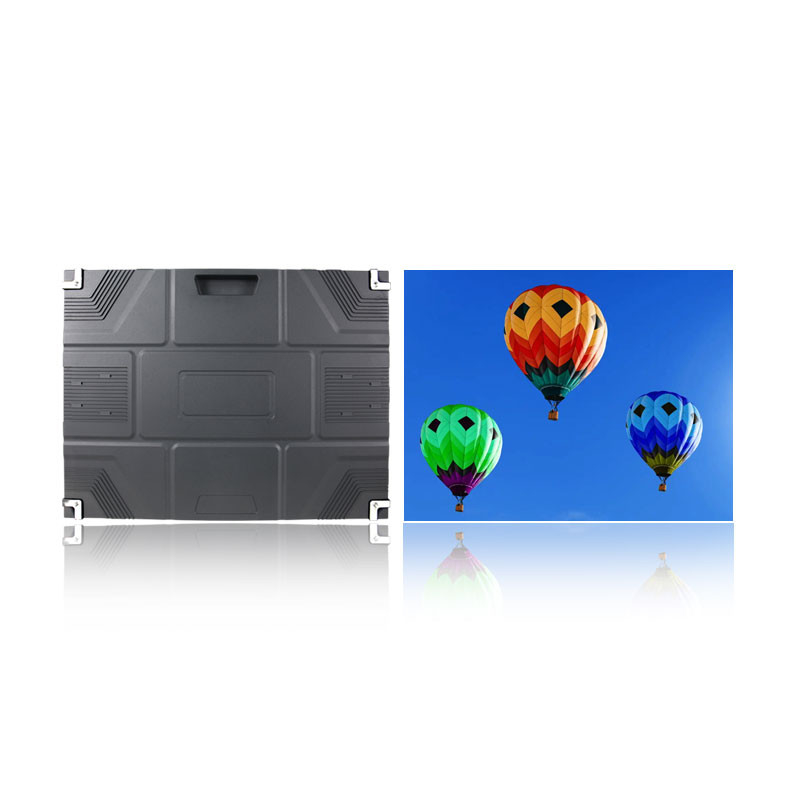

P1.538mm Indoor Fixed Series 640*480mm
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE Rohs FCC EMC ETL RSE |
| Model Number: | P1.538mm |
|
Detail Information |
|||
| PITCH: | 1.538mm | Cabinet: | Die Cast Aluminum |
|---|---|---|---|
| Contast Ratio: | 5000:1 | Strength: | Low Blue Ray |
| View Angle: | 140º | Refresh: | 3840Hz |
| Maintain Mode: | Front Maintain | Cabinets Size: | 640*480mm |
| Brightness: | ≥600cd | Characteristic: | 140° Ultra-wide Viewing Angle |
| High Light: | P1.538mm Fine Pitch LED Screen,640*480mm Box Fine Pitch LED Screen,600cd P1.538mm Industrial Led Display |
||
Product Description
Product features:
| project | parameter | |
|
BASIC PARAMETER |
pixel pitch | 1.538 mm |
| pixel structure | 1R1G1B | |
| pixel density | 422753 /m 2 | |
| Module resolution | 208 (W)* 104 (H) | |

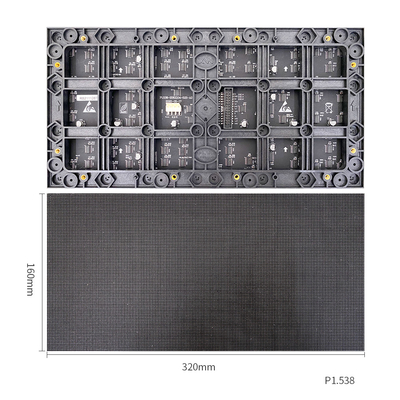

| Module size | 320mm * 160mm * 15mm | |
|
OPTIC PARAMETER |
Single point luminance, chromaticity correction | have |
| white balance brightness | ≥600 cd/㎡ | |
| color temperature | 2000K—12500K adjustable | |
| Horizontal viewing angle | ≥ 140° | |
| vertical viewing angle | ≥ 120° | |
| Visible distance | ≥3 meters | |
| Brightness uniformity | ≥97% | |
| Contrast | ≥5000:1 | |
|
PROCCESSING PERFORMANCE |
Signal processing bits | 16 bits*3 |
| grayscale | 65536 | |
| control distance | Network cable: 100 meters, Optical fiber: 10 kilometers | |
| drive mode | High gray-scale constant current source driver IC | |
| frame rate | ≥ 60HZ | |
| refresh rate | 1920-3840 Hz | |
| way to control | Synchronize | |
| Brightness adjustment range | 0 to 100 stepless adjustment | |
|
OPERATION PERFORMANCE |
Continuous working time | ≥72 hours |
| Typical life | 50,000 hours | |
| Protection class | IP20 | |
| range of working temperature | -20℃ to 50℃ | |
| Operating humidity range | 10 %- 80% RH non-condensing | |
| Storage temperature range | -20 ℃ to 60 ℃ | |
|
ELECTRIC PARAMETER |
Operating Voltage | DC: 4.2-5V |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | |
| Maximum power consumption | 680W / ㎡ _ | |
| Average power consumption | 270W / ㎡ _ | |
