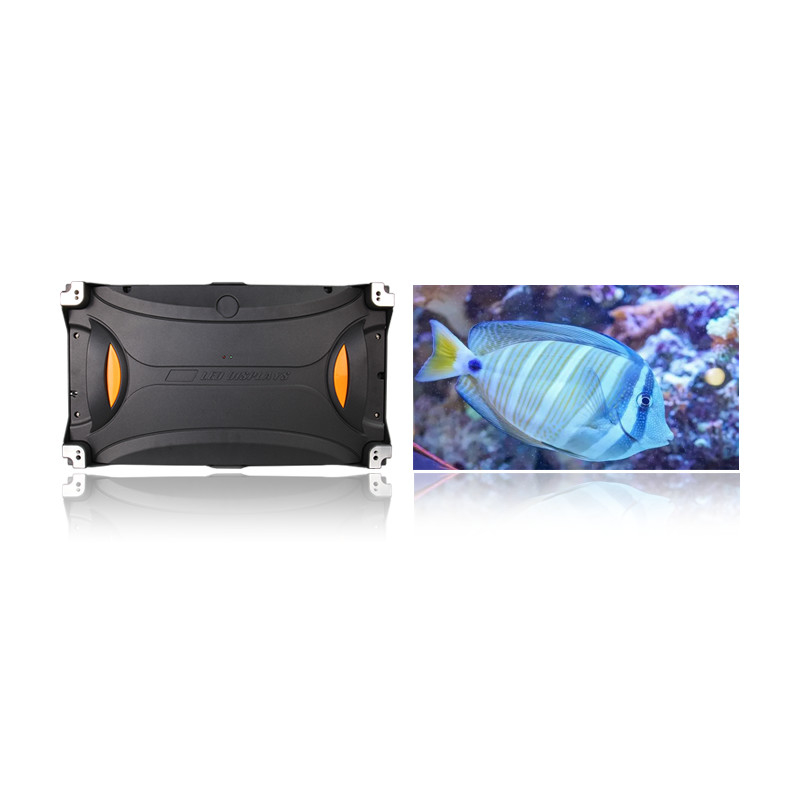

Front Maintain P1.875mm Fine Pitch LED Screen Die Cast Aluminum Cabinet
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE Rohs FCC EMC ETL RSE |
| Model Number: | P0.9375mm p1.25mm p1.44mm p1.5mm p1.538mm p1.5625mm p1.667mm p1.839mm p1.86mm |
|
Detail Information |
|||
| PITCH: | 1.875mm | Cabinet: | Die Cast Aluminum |
|---|---|---|---|
| Contast Ratio: | 20000:1 | Strength: | Low Blue Ray |
| View Angle: | 180º | Refresh: | 3840Hz |
| Maintain Mode: | Front Maintain | Box Size: | 600*337.5mm |
| Brightness: | ≥600cd | Characteristic: | The Color Dynamic Range Is Greater Than 4%, |
| High Light: | P1.875mm Fine Pitch LED Screen,600*337.5mm Box Fine Pitch LED Screen,P1.875mm Indoor Led Display Screen |
||
Product Description
Front Maintain P1.875mm Fine Pitch LED Screen Die Cast Aluminum Cabinet
Source manufacturer P1.875mm fine pitch HD 16:9 ratio led display led screen led panel Led Video
Fine pitch led display led panel
Product features:
1, die cast aluminum box flatness is high, pure before maintenance
2, high refresh rate, high gray scale
3, all black light, high contrast
4, TUV low blue light certification to ensure long-term viewing. Comfortable, healthy eye protection
5, 180° ultra-wide viewing angle, any position is a C-position viewing angle, and every place is unobstructed.
6, The box is integrally formed, fully dust-proof, moisture-proof, anti-static, anti-blue light, anti-theft ,
7, comprehensively improves the structure of the box module ;
parameter:
Cabiet size choice:
600x337.5mm
Customize
Pitch:
P0.9375 p1.04 p1.25 p1.388 p1.45 p1.44 p1.5625 p1.667 p1.875 p1.923 p2.5
Brightiness:≥600cd
Contrast:5000:1/3000:1
Maintain: front maintain mode
View angle:160°
Refresh rate:3840
Power consumption:max:600w ave:270w
Life time:100000 hours
Working temperature:-30℃-60℃
Store temperature:-20℃-80℃
Humidity:10%-80%
| project | parameter | |
|
BASIC PARAMETER |
pixel pitch | 1.875mm _ |
| pixel structure | 1R1G1B | |
| pixel density | 284089 /m 2 | |
| Module resolution | 160 (W)* 90 (H) | |
| Module size | 300mm * 168.75mm * 15mm | |
| Box size | 600mm * 337.5mm * 75mm | |
| Box weight | 6.5Kg | |
|
OPTIC PARAMETER |
Single point luminance, chromaticity correction | have |
| white balance brightness | ≥600 cd/㎡ | |
| color temperature | 3200K—9300K adjustable | |
| Horizontal viewing angle | ≥ 140° | |
| vertical viewing angle | ≥ 120° | |
| Visible distance | ≥3 meters | |
| Brightness uniformity | ≥97% | |
| Contrast | ≥3000:1 | |
|
PROCCESSING PERFORMANCE |
Signal processing bits | 16 bits*3 |
| grayscale | 65536 | |
| control distance | Network cable: 100 meters, Optical fiber: 10 kilometers | |
| drive mode | High gray-scale constant current source driver IC | |
| frame rate | ≥ 60HZ | |
| refresh rate | ≥ 384 0 Hz | |
| way to control | Synchronize | |
| Brightness adjustment range | 0 to 100 stepless adjustment | |
|
OPERATION PERFORMANCE |
Continuous working time | ≥72 hours |
| Typical life | 50,000 hours | |
| Protection class | IP20 | |
| range of working temperature | -20℃ to 50℃ | |
| Operating humidity range | 10 %- 80% RH non-condensing | |
| Storage temperature range | -20 ℃ to 60 ℃ | |
|
ELECTRIC PARAMETER |
Operating Voltage | DC: 4.2-5V |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | |
| Maximum power consumption | 680W / ㎡ _ | |
| Average power consumption | 270W / ㎡ _ | |
