Refresh Rate 1920HZ Outdoor Full Color LED Display Explosion Proof
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC |
| Model Number: | P4mm |
|
Detail Information |
|||
| Light: | Normal1921 | Refresh Rate: | ≥1920-3840HZ |
|---|---|---|---|
| Box Size: | 960mm*960mm | Color Temperature: | 3200K—9300K Adjustable |
| Visible Distance: | ≥32 Meters | Contrast: | ≥5000:1 |
| High Light: | 9300K Full Color LED Display,1920HZ Full Color LED Display,Explosion Proof Outdoor LED Advertising Screen |
||
Product Description
Refresh Rate 1920HZ Outdoor Full Color LED Display Explosion Proof
Insulation explosion-proof P4mm Outdoor advertising display
1. Support 4.2V~5V and 2.8V/3.8V power supply mode, the power supply selection is more flexible, and there is no risk of burning the module with mixed power supply
2. Diversely used in commercial real estate, shopping malls, large squares, outdoor advertising screens, traffic screens and other field
3, Standard 1920Hz refresh rate, the video picture is more delicate and smooth; 9000:1 high contrast ratio, improve the contrast between light and dark, enhance the picture details, restore the true color
4, Diversely used in commercial real estate, shopping malls, large squares, outdoor advertising screens, traffic screens and other fields

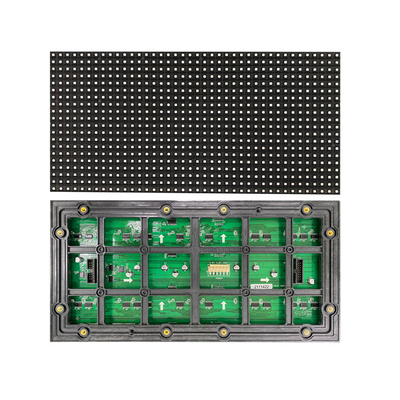

Module resolution :80 (W)* 40 (H)
Horizontal viewing angle: ≥120°
vertical viewing angle: ≥120°
Visible distance :≥32 meters
Brightness uniformity :≥97%
Contrast :≥3000:1
grayscale :16Bit
frame rate: ≥60HZ
Protection class: Front IP65, back IP43
Pitch:P2.5, P3, P3.07, P3.91, P4, P5, P5.33, P6.66, P8, P10
Module size:192x192mm,160x160mm,320x160mm,250x250mm,256x128mm
Cabinet size:640x640mm,768x768mm,960*960mm,500x500mm,1024x768mm 1024x768mm,
| project | Parameter | Remark | |
|
Basic parameters |
pixel pitch | 4 mm | |
| pixel structure | 1R1G1B | ||
| pixel density | 62500/m 2 | ||
| Module resolution | 80 (W)* 40 (H) | ||
| Module size | 320mm*160mm | ||

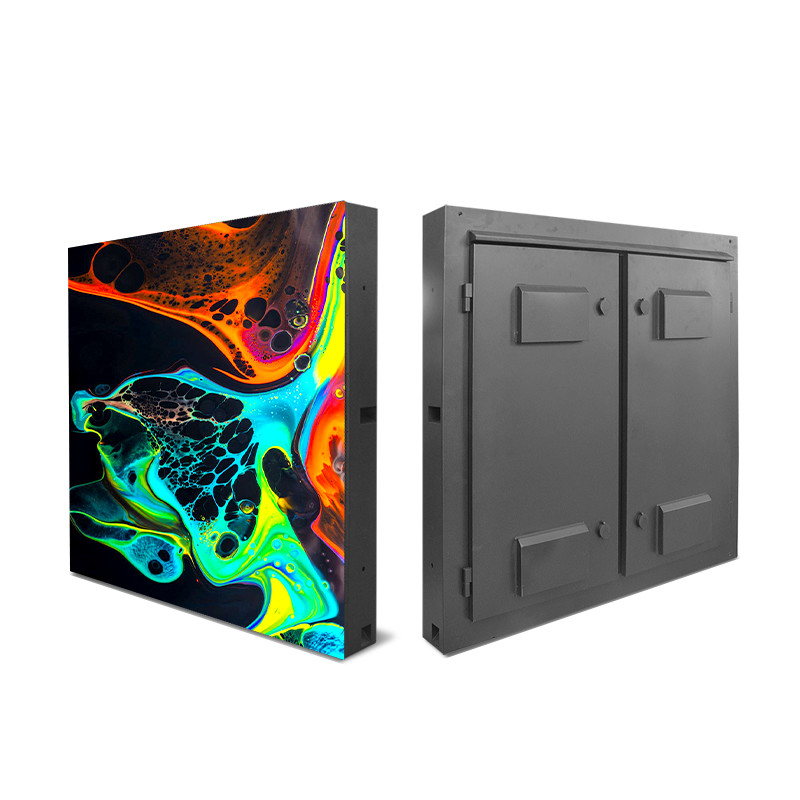

| Box size | 960mm*960mm | ||
|
Optical parameters |
Single point luminance, chromaticity correction | have | |
| white balance brightness | ≥6000cd/㎡ | ||
| color temperature | 3200K—9300K adjustable | ||
| Horizontal viewing angle | ≥120° | ||
| vertical viewing angle | ≥120° | ||
| Visible distance | ≥32 meters | ||
| Brightness uniformity | ≥97% | ||
| Contrast | ≥3000:1 | ||
|
Processing performance |
Signal processing bits | 16 bits*3 | |
| grayscale | 16Bit | ||
| control distance | Gigabit Ethernet cable: 100 meters, Fiber: 10 kilometers | ||
| drive mode | High gray-scale constant current source driver IC | ||
| frame rate | ≥60HZ | ||
| refresh rate | ≥1920HZ | ||
| way to control | Synchronize | ||
| Brightness adjustment range | 0 to 100 infinitely adjustable | ||
|
Use parameters |
Continuous working time | ≥72 hours | |
| Typical life | 50,000 hours | ||
| Protection class | Front IP65, back IP43 | ||
| range of working temperature | -20℃ to 50℃ | ||
| Operating humidity range | 10 %- 80% RH non-condensing | ||
| Storage temperature range | -20 ℃ to 60 ℃ | ||
| Electrical parameters | Operating Voltage | DC 5V | |
| Power Requirements |
AC: 220×(1±10%) V, 50×(1±5%) Hz |
||
| Maximum power consumption | 600W/㎡ | ||
| Average power consumption | 230W/㎡ | ||
Our Services
1. 27 Years professional led display manufacturer,
2. Shot delivery time: 5-15days.
3. Factory price.
4. OEM and ODM service
5. We can design special product for you.
6. 30% deposit for producing,70% balance to be paid before shipment.
7. EXW, FOB, CIF C&F, FCA, DDU, colorful trade term.
1. After-sales service:
1) Service principles: response in time, solve problems as soon as possible and ensure the use.
2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
4) Under normal use and storage, Our Company will be responsible for the equipment.
2. Pre-sales service:
1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions.
2) Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection
FAQ
| Q: What is the brightness, viewing angle and wavelength of the LED? |
|
A: Luminous Intensity is equal to the amount of luminous flux emitted into a very small solid angle at a defined angular orientation from the light source. The measurement for luminous intensity is the candela. Symbol is Iv. Viewing Angle is the total cone angle in degrees encompassing the central, high luminous intensity portion of the LED beam from the on-axis peak to the off-axis point where the LED intensity is 50% of the on-axis intensity. This off-axis point is known as theta one-half ( 1/2). Two times 1/2 is the LEDs' full viewing angle; however, light is visible beyond the1/2 point. Wavelength is the distance between two points of corresponding phase and is equal to waveform velocity divided by frequency. It defines what color human eyes could recognize |
| Q: What is dominant wavelength? Please specify the ranges of wavelength in red, green and blue color respectively. |
| A: Dominant wavelength is defined as the best range of wavelength showing the most natural color recognized by human eyes. Researches indicate that fixed colors with wavelength of 620-630nm (red), 520-530nm (green) and 460-470nm (blue), in fact mixed in a particular proportion, can get the pure white. That is, in display field, people use luminous materials with above wavelength to make "compounded" white more natural.In order to get a good balance white led display, we specify the led colors with wavelength within 4nm for each color |
| Q: Which chip vendors are you buying from? |
| A: It depends on the Customer's requirement. We can purchase from Japan, Korea, Europe, USA. We are using chips mainly from Taiwan |
| Q: What is the chip size you're using for outdoor display? How about indoor display? |
| A: For outdoor display, we're using 12mil chip for red, 14mil for both green and blue. Regarding indoor display, 9mil for red, 12mil for green and blue are currently adopted |
| Q: How much will the brightness of LED drop down after 1000hrs? |
| A: Based on the result of aging test, the brightness decay of green LED is around 5%-8%, while blue is around 10%-14% and red is around 5%-8% |
