Waterproof Outdoor LED Advertising Screen Environmental Protection
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC/ETL |
| Model Number: | P10mm |
|
Detail Information |
|||
| Pixel Pitch: | 10mm | Module Resolution: | 32(W)X16(H) |
|---|---|---|---|
| Module Size: | 320mmX160mm | Refresh Rate: | Normal Refresh |
| Contrast: | ≥3000:1 | Protection Class: | Front IP65, Back IP43 |
| White Balance Brightness: | ≥ 7200cd/㎡(static)/ ≥ 6000cd/㎡(2S) | Single Point Luminance, Chromaticity Correction: | Have |
| Grayscale: | 16Bit | Color Temperature: | 3200K—9300K Adjustable |
| Horizontal Viewing Angle: | ≥ 120° | Vertical Viewing Angle: | ≥ 120° |
| Light: | Nation Star Copper Wire | ||
| High Light: | P10 Outdoor LED Advertising Screen,IP65 Outdoor LED Advertising Screen,IP65 P10 Outdoor LED Display |
||
Product Description

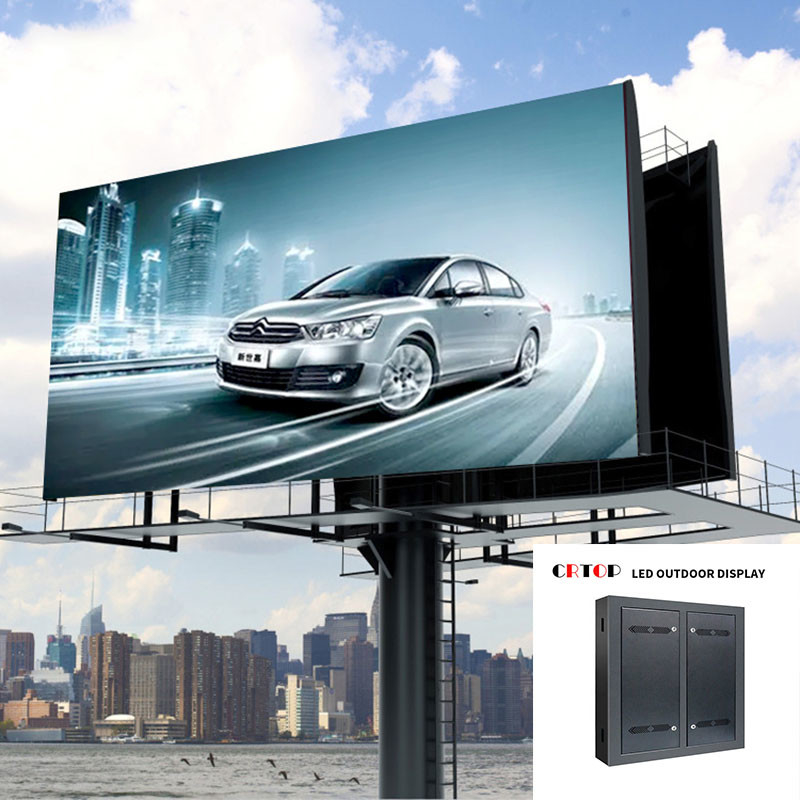

Waterproof Outdoor LED Advertising Screen Environmental Protection
P10 Energy conservation and environmental protection Outdoor Led Wall
1. The main light-emitting device of outdoor LED display is LED lamp bead, which is made of non-toxic material. Unlike fluorescent lamp, aquiferous silver will cause pollution, and LED can also be recycled.
2. Energy saving and environmental protection, all-weather work
3. The system has the advantages of stable and reliable operation, strong anti-interference ability and long screen life.
Pitch: P2.5, P3, P3.07, P3.91, P4, P5, P5.33, P6.66, P8, P10
Module size:192x192mm,160x160mm,320x160mm,250x250mm,256x128mm
Cabinet size:640x640mm,768x768mm,960*960mm,500x500mm,1024x768mm 1024x768mm
| project | parameter | Remark | |
|
BASIC PARAMETER |
pixel pitch | 10mm | |
| pixel structure | 1R1G1B | ||
| pixel density | 10000/m 2 | ||
| Module resolution | 32(W)X16(H) | ||

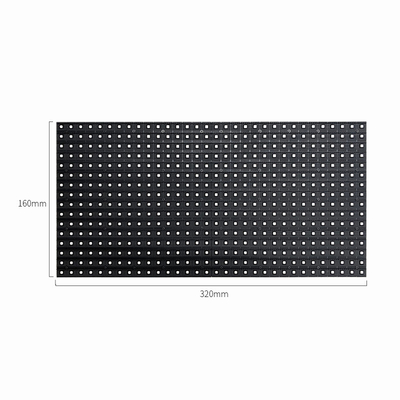

| Module size | 320mmX160mm | ||

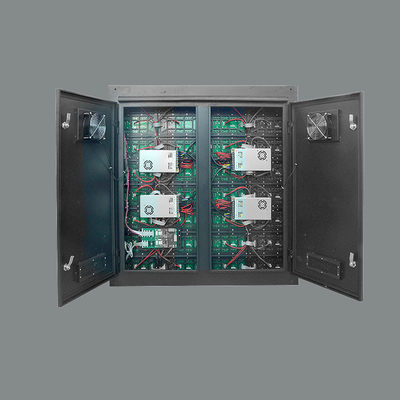

| Box size | 960mm*960mm | ||
|
OPTIC PARAMETER |
Single point luminance, chromaticity correction | have | |
| white balance brightness | ≥ 7200cd/㎡(static)/ ≥ 6000cd/㎡(2S) | ||
| color temperature | 3200K—9300K adjustable | ||
| Horizontal viewing angle | ≥ 120° | ||
| vertical viewing angle | ≥ 120° | ||
| Visible distance | ≥20m | ||
| Brightness uniformity | ≥97% | ||
| Contrast | ≥3000:1 | ||
|
Proccessing Performance |
Signal processing bits | 16 bits*3 | |
| grayscale | 16Bit | ||
| control distance | Gigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers | ||
| drive mode | High gray-scale constant current source driver IC | ||
| frame rate | ≥ 60HZ | ||
| refresh rate | ≥ 1920 Hz _ | ||
| way to control | Synchronize | ||
| Brightness adjustment range | 0 to 100 stepless adjustment | ||
|
Operation performance |
Continuous working time | ≥72 hours | |
| Typical life | 50,000 hours | ||
| Protection class | Front IP65, back IP43 | ||
| range of working temperature | -20℃ to 50℃ | ||
| Operating humidity range | 10 %- 80% RH non-condensing | ||
| Storage temperature range | -20 ℃ to 60 ℃ | ||
|
Electric parameter |
Operating Voltage | DC 5V | |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | ||
| Maximum power consumption | 900W/ ㎡ (static)/ 1000W/ ㎡ (2S) | ||
| Average power consumption | 400W/ ㎡ (static)/ 450W/ ㎡ (2S) | ||
