P8mm Outdoor LED Wall 320mm*160mm Module For Office Buildings
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC/ETL |
| Model Number: | P8mm |
|
Detail Information |
|||
| Pixel Pitch: | 8mm | Module Resolution: | 48 (W)* 24(H) |
|---|---|---|---|
| Module Size: | 320mm*160mm | Refresh Rate: | Normal Refresh |
| Contrast: | ≥3000:1 | Protection Class: | Front IP65, Back IP43 |
| White Balance Brightness: | ≥ 55 00cd/㎡ | Single Point Luminance, Chromaticity Correction: | Have |
| Grayscale: | 16Bit | Color Temperature: | 3200K—9300K Adjustable |
| Horizontal Viewing Angle: | ≥ 120° | Vertical Viewing Angle: | ≥ 120° |
| Brightness Adjustment Range: | 0 To 100 Stepless Adjustment | ||
| High Light: | P8mm Outdoor LED Wall,320mm*160mm Module Outdoor LED Wall,320mm*160mm Advertising Led Display Screen |
||
Product Description
P8mm Outdoor LED Wall 320mm*160mm Module For Office Buildings
P8 Common negative energy saving Outdoor Led Wall for Office buildings and market
1. Energy saving and environmental protection, outdoor LED display is not only energy saving and environmental protection, all-weather work
2. Support 4.2V~5V and 2.8V/3.8V power supply mode, the power supply selection is more flexible, and there is no risk of burning the module with mixed power supply
3. a variety of module sizes , flexible collocation, more considerate upgrades , strict material selection
Pitch:P2.5, P3, P3.07, P3.91, P4, P5, P5.33, P6.66, P8, P10
Module size:192x192mm,160x160mm,320x160mm,250x250mm,256x128mm
Cabinet size:640x640mm,768x768mm,960*960mm,500x500mm,1024x768mm 1024x768mm
| project | parameter | Remark | |
BASIC PARAMETER | pixel pitch | 8mm | |
| pixel structure | 1R1G1B | ||
| pixel density | 15625/m 2 | ||
| Module resolution | 40(W)*20(H) | ||
| Module size | 320mm*160mm | ||

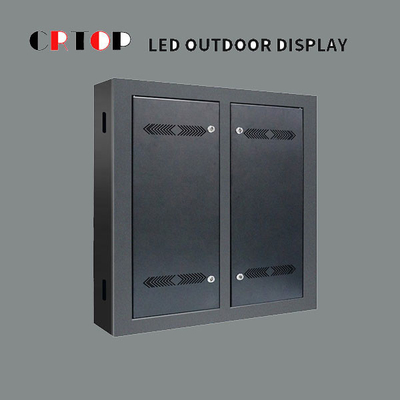

| Box size | 960mm*960mm | ||
OPTIC PARAMETER | Single point luminance, chromaticity correction | have | |
| white balance brightness | ≥ 55 00cd/㎡ | ||
| color temperature | 3200K—9300K adjustable | ||
| Horizontal viewing angle | ≥ 120° | ||
| vertical viewing angle | ≥ 120° | ||
| Visible distance | ≥16 meters | ||
| Brightness uniformity | ≥97% | ||
| Contrast | ≥3000:1 | ||
Proccessing Performance | Signal processing bits | 16 bits*3 | |
| grayscale | 16Bit | ||
| control distance | Gigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers | ||
| drive mode | High gray-scale constant current source driver IC | ||
| frame rate | ≥ 60HZ | ||
| refresh rate | ≥ 1920 Hz | ||
| way to control | Synchronize | ||
| Brightness adjustment range | 0 to 100 stepless adjustment | ||
Operation performance | Continuous working time | ≥72 hours | |
| Typical life | 50,000 hours | ||
| Protection class | Front IP65, back IP43 | ||
| range of working temperature | -20℃ to 50℃ | ||
| Operating humidity range | 10 %- 80% RH non-condensing | ||
| Storage temperature range | -20 ℃ to 60 ℃ | ||
Electric parameter | Operating Voltage | DC 5V | |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | ||
| Maximum power consumption | 850W/ ㎡ | ||
| Average power consumption | 360W/ ㎡ | ||
