Moistureproof Outdoor LED Advertising Screen High Temperature Resistant
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC/ETL |
| Model Number: | P8mm |
|
Detail Information |
|||
| Pixel Pitch: | 8mm | Module Resolution: | 40(W)*20(H) |
|---|---|---|---|
| Module Size: | 320mm*160mm | Refresh Rate: | Normal Refresh |
| Protection Class: | Front IP65, Back IP43 | White Balance Brightness: | ≥ 55 00cd/㎡ |
| Grayscale: | 16Bit | Contrast: | ≥3000:1 |
| Color Temperature: | 3200K—9300K Adjustable | Single Point Luminance, Chromaticity Correction: | Have |
| High Light: | IP43 Outdoor LED Advertising Screen,16Bit Outdoor LED Advertising Screen,P8mm Digital Advertising Display Screens |
||
Product Description
Moistureproof Outdoor LED Advertising Screen High Temperature Resistant
P8 Moisture Proof High-Temperature Resistant Outdoor Led Wall
1. The AC fan with large exhaust air volume is adopted, and the components are reasonably arranged to improve the uniformity of heat dissipation.
2. Support 4.2V~5V and 2.8V/3.8V power supply mode, the power supply selection is more flexible, and there is no risk of burning the module with mixed power supply
3. The display system meets the requirements of water-proof, moisture-proof, corrosion-proof, wind-proof, high temperature-proof, anti-static, fire-proof, flame-proof and earthquake-proof
Pitch:P2.5, P3, P3.07, P3.91, P4, P5, P5.33, P6.66, P8, P10
Module size:192x192mm,160x160mm,320x160mm,250x250mm,256x128mm
Cabinet size:640x640mm,768x768mm,960*960mm,500x500mm,1024x768mm 1024x768mm
| project | parameter | Remark | |
|
BASIC PARAMETER |
pixel pitch | 8mm | |
| pixel structure | 1R1G1B | ||
| pixel density | 15625/m 2 | ||
| Module resolution | 40(W)*20(H) | ||
| Module size | 320mm*160mm | ||

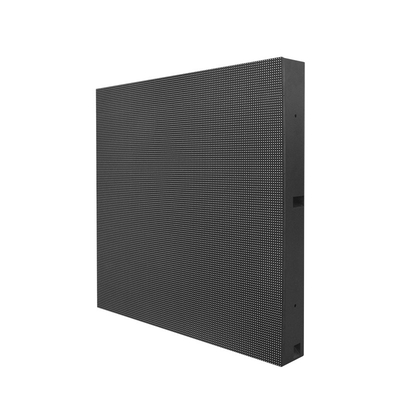

| Box size |
960mm*960mm |
||
|
OPTIC PARAMETER |
Single point luminance, chromaticity correction | have | |
| white balance brightness | ≥ 55 00cd/㎡ | ||
| color temperature | 3200K—9300K adjustable | ||
| Horizontal viewing angle | ≥ 120° | ||
| vertical viewing angle | ≥ 120° | ||
| Visible distance | ≥16 meters | ||
| Brightness uniformity | ≥97% | ||
| Contrast | ≥3000:1 | ||
|
Proccessing Performance |
Signal processing bits | 16 bits*3 | |
| grayscale | 16Bit | ||
| control distance | Gigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers | ||
| drive mode | High gray-scale constant current source driver IC | ||
| frame rate | ≥ 60HZ | ||
| refresh rate | ≥ 1920 Hz | ||
| way to control | Synchronize | ||
| Brightness adjustment range | 0 to 100 stepless adjustment | ||
|
Operation performance |
Continuous working time | ≥72 hours | |
| Typical life | 50,000 hours | ||
| Protection class | Front IP65, back IP43 | ||
| range of working temperature | -20℃ to 50℃ | ||
| Operating humidity range | 10 %- 80% RH non-condensing | ||
| Storage temperature range | -20 ℃ to 60 ℃ | ||
|
Electric parameter |
Operating Voltage | DC 5V | |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | ||
| Maximum power consumption | 850W/ ㎡ | ||
| Average power consumption | 360W/ ㎡ | ||
