P6.66 energy saving Outdoor Led Screen for shopping center， large squares
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC/ETL |
| Model Number: | P6.66mm |
|
Detail Information |
|||
| Pixel Pitch: | 6.66mm | Module Resolution: | 48 (W)* 24 (H) |
|---|---|---|---|
| Module Size: | 320mm * 1 60mm | Refresh Rate: | ≥ 1920 Hz |
| Protection Class: | Front IP65, Back IP43 | White Balance Brightness: | ≥ 5 00cd/㎡ |
| Grayscale: | 16Bit | Contrast: | ≥3000:1 |
| Single Point Luminance, Chromaticity Correction: | Have | Brightness Adjustment Range: | 0 To 100 Stepless Adjustment |
Product Description

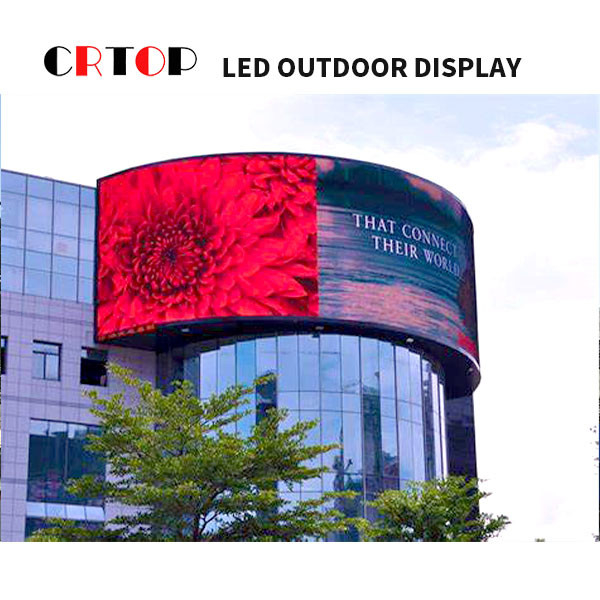

P6.66 energy saving Outdoor Led Screen for shopping center, large squares
1. Using high-grade chip packaged LED lights, low gray and high brightness, fully guarantees the service life and display quality of the display screen.
2.The advantage of this driver chip is that it can reduce the voltage falling on the output terminals of the IC. Reduce the power consumption, improve the power loss of the IC, and then achieve the effect of energy saving.
3.Support 4.2V~5V and 2.8V/3.8V power supply mode, the power supply selection is more flexible, and there is no risk of burning the module with mixed power supply
Pitch:P2.5, P3, P3.07, P3.91, P4, P5, P5.33, P6.66, P8, P10
Module size:192x192mm,160x160mm,320x160mm,250x250mm,256x128mm
Cabinet size:640x640mm,768x768mm,960*960mm,500x500mm,1024x768mm 1024x768mm
| project | parameter | Remark | |
|
BASIC PARAMETER |
pixel pitch | 6.66mm _ _ | |
| pixel structure | 1R1G1B | ||
| pixel density | 22545 / m2 | ||
| Module resolution | 48 (W)* 24 (H) | ||

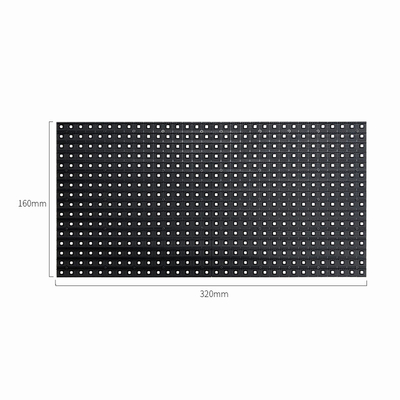

| Module size | 320mm * 1 60mm | ||
| Box size | 960mm*960mm | ||
|
OPTIC PARAMETER |
Single point luminance, chromaticity correction | have | |
| white balance brightness | ≥ 5 00cd/㎡ | ||
| color temperature | 3200K—9300K adjustable | ||
| Horizontal viewing angle | ≥ 120° | ||
| vertical viewing angle | ≥ 120° | ||
| Visible distance | ≥12m | ||
| Brightness uniformity | ≥97% | ||
| Contrast | ≥3000:1 | ||
|
Proccessing Performance |
Signal processing bits | 16 bits*3 | |
| grayscale | 16Bit | ||
| control distance | Gigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers | ||
| drive mode | High gray-scale constant current source driver IC | ||
| frame rate | ≥ 60HZ | ||
| refresh rate | ≥ 1920 Hz | ||
| way to control | Synchronize | ||
| Brightness adjustment range | 0 to 100 stepless adjustment | ||
|
Operation performance |
Continuous working time | ≥72 hours | |
| Typical life | 50,000 hours | ||
| Protection class | Front IP65, back IP43 | ||
| range of working temperature | -20℃ to 50℃ | ||
| Operating humidity range | 10 %- 80% RH non-condensing | ||
| Storage temperature range | -20 ℃ to 60 ℃ | ||
|
Electric parameter |
Operating Voltage | DC 5V | |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | ||
| Maximum power consumption | 850W/ ㎡ | ||
| Average power consumption | 360W/ ㎡ | ||
