P2mm aluminum die cast box 512x512mm indoor led display led screen led vedio wall
Product Details:
| Place of Origin: | CHIAN |
| Brand Name: | CRTOP |
| Certification: | CE/FCC |
| Model Number: | P2mm |
|
Detail Information |
|||
| Pitch:: | 2mm | Cabinet Size:480: | 512x512mm |
|---|---|---|---|
| Box: | Aluminum Die Cast | Led Lamp: | Guoxing |
| Refresh: | High Refresh | View Angele: | 140º |
| View Distance: | 5m | Brightness: | ≧600-2000cd |
| Contrast Ratio:: | 3000:1 | Full Color: | SMD Full-color |
| Characteristic: | High Grayscale Constant Current Driver IC | ||
Product Description

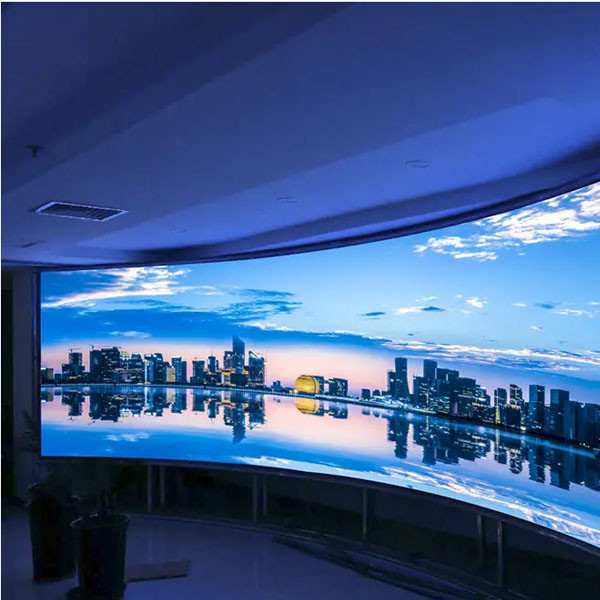

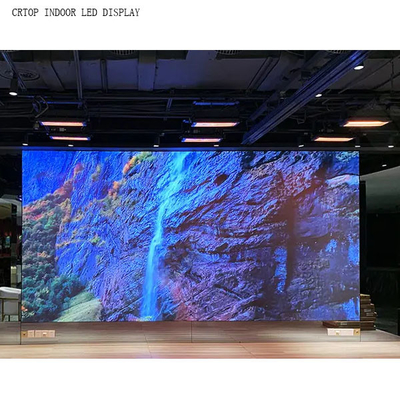

P2mm aluminum die cast box 512x512mm indoor led display led screen led vedio wall
Indoor Led Display, Led Screen, Led vedio panel
Product features:
1, Die cast aluminum box flatness is high, pure before maintenance or normal cabinet
2, High refresh rate, high gray scale
3, High contrast
4. No fan and mute
5, Seamless stitching, fast installation
6. The multi-layer circuit design ensures uniform current distribution of the lamp board, good heat dissipation, prevents color blocks at low gray, and enhances the anti-electromagnetic interference ability. High-quality manufacturers in the sheet metal industry: Shengyi, Kingboard (KB), etc.
7. Driver IC: Adopt high refresh rate, high grayscale constant current driver IC from world-renowned top manufacturers, with excellent driving performance, stability and reliability.
8. PCB board
parameter:
Cabiet size choice:
600x337.5mm
640x480mm
480x480mm
786*786mm
576*576mm
960*960mm
Custom Simple Box
Customize
Pitch:
P1.5625 p1.86 p1.875 p1.923 p2.5 p2.5 p2.22 p2 p3 P3.07 p4 p5 p6
Module size:128*96mm,160*160mm,320*160mm,200*200mm,240*240mm,192*192mm,
256*128mm
white balance brightness:≥600 cd-2000cd /㎡
Horizontal viewing angle:≥ 140°
vertical viewing angle: ≥ 120°
Contrast ratio: ≥3000:1
refresh rate: ≥ 384 0 Hz
Protection class:IP20
Single point luminance, chromaticity correction :have
color temperature :3200K—9300K adjustable
Visible distance : ≥3 meters
Brightness uniformity : ≥97%
Signal processing bits :16 bits*3
Grayscale : 65536
control distance Network cable: 100 meters, Optical fiber: 10 kilometers
drive mode :High gray-scale constant current source driver IC
frame rate :≥ 60HZ
way to control :Synchronize
Brightness adjustment range:0 to 100 stepless adjustment
Continuous working time:≥72 hours
Typical life:100,000 hours
Protection class : IP20
Operating Voltage: DC: 4.2-5V
Power Requirements AC: 220×(1±10%)V, 50×(1±5%)Hz
Maximum power consumption :680W / ㎡
Average power consumption: 270W / ㎡
