P1.5625mm LED Video Display Screen 55 Inch Large Box Moisture Proof
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC/ETL |
| Model Number: | P1.5625mm |
|
Detail Information |
|||
| Pixel Pitch: | 1.5625mm _ | Box Size: | 1200*675mm |
|---|---|---|---|
| Module Size: | 300mm * 168.75mm | Control Distance: | Network Cable: 100 Meters, Optical Fiber: 10 Kilometers |
| Drive Mode: | High Gray-scale Constant Current Source Driver IC | Refresh Rate: | 1920-3840Hz |
| Average Power Consumption: | 270W / ㎡ _ | Typical Life: | 50,000 Hours |
| High Light: | P1.5625mm LED Video Display Screen,3840Hz LED Video Display Screen,P1.5625mm LED Advertising Display Indoor |
||
Product Description

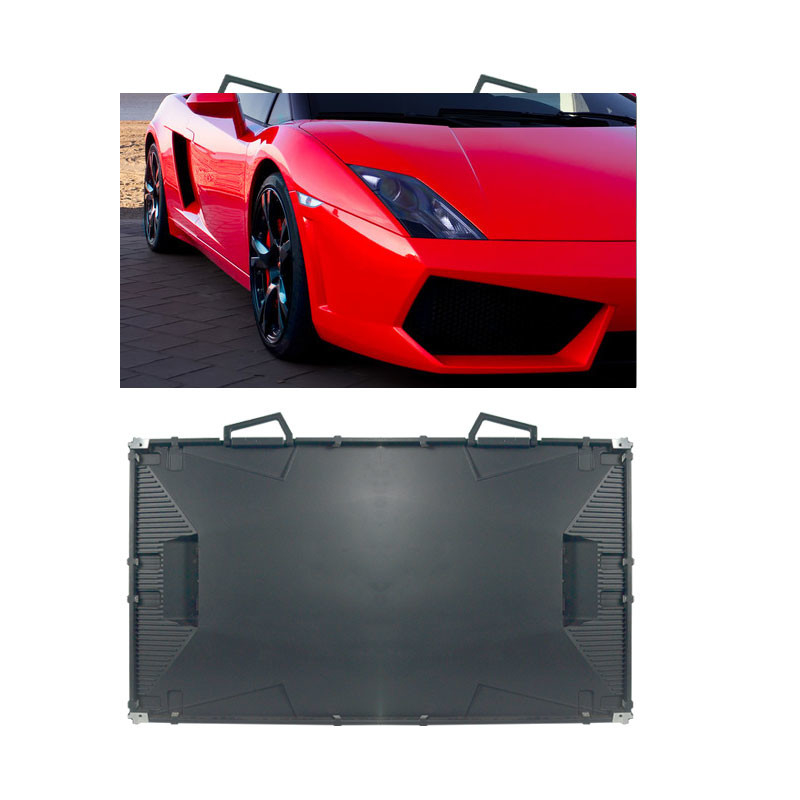

P1.5625mm LED Video Display Screen 55 Inch Large Box Moisture Proof
Longer life P1.5625mm 55 inch large box HD indoor LED display screen
1. Blue light filtering technology, passed the TUV low blue light certification, effectively reducing the damage of blue light to human eyes
2.ultra-high protection, with dustproof, shockproof, anti-collision, front waterproof, moisture-proof, anti-oxidation
3. Box video interface, 2 HDMI inputs, 1 HDMI loop out, no need for external sending equipment
4. Box control interface, 1 RS232 input, 1 RS232 loop out, bus control mode
5.55-inch high-precision die-casting aluminum 16:9 cabinet, cabinet accuracy < 0.1 mm, flatness of the entire screen < 0.4 mm
6. Adopt the latest flip-chip COB packaging process, with smaller pitch and higher stability
7. The thickness of the screen body is less than 63mm, which saves the installation space on site to the greatest extent, and supports vertical, hoisting, and wall-mounted installations
Visible distance :≥5 meters
Brightness uniformity: ≥97%
Contrast :≥5000:1
grayscale: 12-14bits
Operating Voltage :DC: 4.2-5V
Power Requirements: AC: 220×(1±10%)V, 50×(1±5%)Hz
| project | parameter | Remark | |
|
BASIC PARAMETER |
pixel pitch | 1.5625mm _ | |
| pixel structure | 1R1G1B | ||
| pixel density | 409600 /m 2 | ||
| Module resolution | 192 (W)* 108 (H) | ||

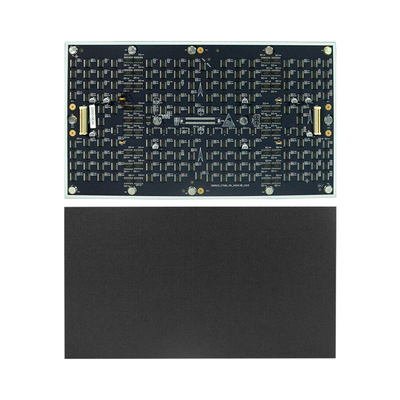

| Module size | 300mm * 168.75mm | ||
| Box size | 1200*675mm | ||
| Box weight(Kg) | 19.5kg | ||
|
OPTIC PARAMETER |
Single point luminance, chromaticity correction | have | |
| white balance brightness | ≥600 cd/㎡ | ||
| color temperature | 2000K—12500K adjustable | ||
| Horizontal viewing angle | ≥ 140° | ||
| vertical viewing angle | ≥ 120° | ||
| Visible distance | ≥5 meters | ||
| Brightness uniformity | ≥97% | ||
| Contrast | ≥5000:1 | ||
|
PROCCESSING PARAMETER |
Signal processing bits | 16 bits*3 | |
| grayscale | 12-14bits | ||
| control distance | Network cable: 100 meters, Optical fiber: 10 kilometers | ||
| drive mode | High gray-scale constant current source driver IC | ||
| frame rate | ≥ 60HZ | ||
| refresh rate | ≥ 1920-384 0 Hz | ||
| way to control | Synchronize | ||
| Brightness adjustment range | 0 to 100 stepless adjustment | ||
|
Operation parameter |
Continuous working time | ≥72 hours | |
| Typical life | 50,000 hours | ||
| Protection class | IP20 | ||
| range of working temperature | -20℃ to 50℃ | ||
| Operating humidity range | 10 %- 80% RH non-condensing | ||
| Storage temperature range | -20 ℃ to 60 ℃ | ||
|
Electric parameter |
Operating Voltage | DC: 4.2-5V | |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | ||
| Maximum power consumption | 680W / ㎡ _ | ||
| Average power consumption | 270W / ㎡ _ | ||
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
| Q: What is the brightness, viewing angle and wavelength of the LED? |
|
A: Luminous Intensity is equal to the amount of luminous flux emitted into a very small solid angle at a defined angular orientation from the light source. The measurement for luminous intensity is the candela. Symbol is Iv. Viewing Angle is the total cone angle in degrees encompassing the central, high luminous intensity portion of the LED beam from the on-axis peak to the off-axis point where the LED intensity is 50% of the on-axis intensity. This off-axis point is known as theta one-half ( 1/2). Two times 1/2 is the LEDs' full viewing angle; however, light is visible beyond the1/2 point. Wavelength is the distance between two points of corresponding phase and is equal to waveform velocity divided by frequency. It defines what color human eyes could recognize |
| Q: What is dominant wavelength? Please specify the ranges of wavelength in red, green and blue color respectively. |
| A: Dominant wavelength is defined as the best range of wavelength showing the most natural color recognized by human eyes. Researches indicate that fixed colors with wavelength of 620-630nm (red), 520-530nm (green) and 460-470nm (blue), in fact mixed in a particular proportion, can get the pure white. That is, in display field, people use luminous materials with above wavelength to make "compounded" white more natural.In order to get a good balance white led display, we specify the led colors with wavelength within 4nm for each color |
| Q: Which chip vendors are you buying from? |
| A: It depends on the Customer's requirement. We can purchase from Japan, Korea, Europe, USA. We are using chips mainly from Taiwan |
| Q: What is the chip size you're using for outdoor display? How about indoor display? |
| A: For outdoor display, we're using 12mil chip for red, 14mil for both green and blue. Regarding indoor display, 9mil for red, 12mil for green and blue are currently adopted |
| Q: How much will the brightness of LED drop down after 1000hrs? |
| A: Based on the result of aging test, the brightness decay of green LED is around 5%-8%, while blue is around 10%-14% and red is around 5%-8% |
