High Protection IP20 Indoor LED Display Screen Shockproof Anti Collision
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC/ETL |
| Model Number: | P1.25mm |
|
Detail Information |
|||
| Pixel Pitch: | 1.25mm | Module Resolution: | 240 (W)* 135 (H) |
|---|---|---|---|
| Module Size: | 300mm*168.75mm*15mm | Protection Class: | IP20 |
| Contrast: | ≥3000:1 | Refresh Rate: | ≥ 3840Hz |
| Horizontal Viewing Angle: | ≥ 160° | Vertical Viewing Angle: | ≥ 160° |
| High Light: | IP20 Indoor LED Display Screen,3840Hz Indoor Advertising Led Display,IP20 Indoor Advertising Led Display |
||
Product Description

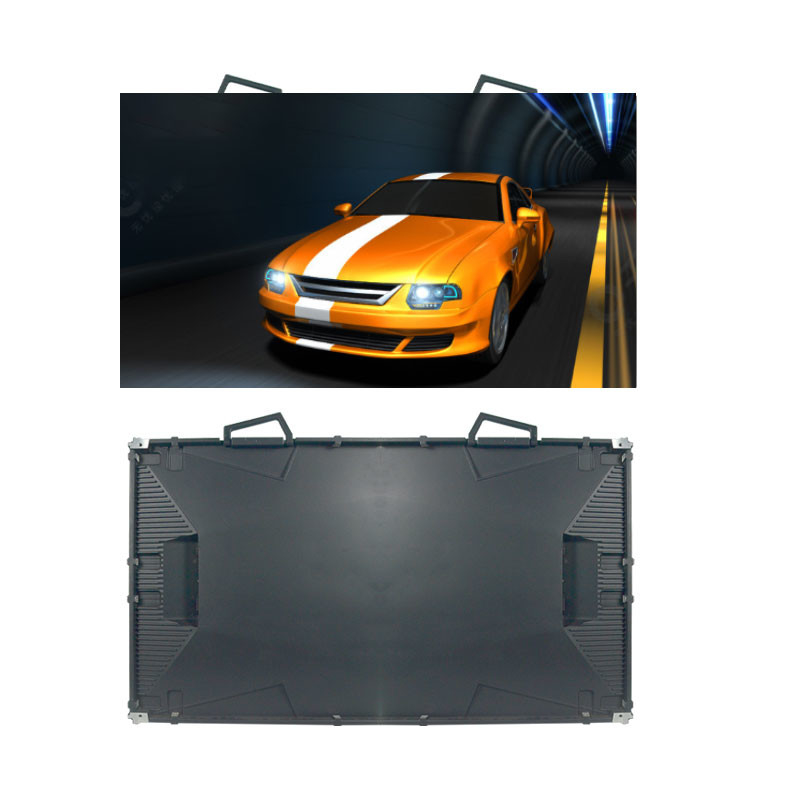

High Protection IP20 Indoor LED Display Screen Shockproof Anti Collision
high protection safe and stable P1.25mm 55 inch display
1. ultra-high protection, with dustproof, shockproof, anti-collision, front waterproof, moisture-proof, anti-oxidation
2. Adopt the latest flip-chip COB packaging process, with smaller pitch and higher stability
3. 55-inch high-precision die-casting aluminum 16:9 cabinet, cabinet accuracy < 0.1 mm, flatness of the entire screen < 0.4 mm
| project | parameter | Remark | |
|
BASIC PARAMETER |
pixel pitch | 1.25mm _ | |
| pixel structure | 1R1G1B | ||
| pixel density | 640000 /m 2 | ||
| Module resolution | 240 (W)* 135 (H) | ||
| Module size | 300mm * 168.75mm | ||
| Box size | 1200*675mm | ||
| Box weight(Kg) | 19.5kg | ||
|
OPTIC PARAMETER |
Single point luminance, chromaticity correction | have | |
| white balance brightness | ≥600 cd/㎡ | ||
| color temperature | 20 00K—9300K adjustable | ||
| Horizontal viewing angle | ≥ 160° | ||
| vertical viewing angle | ≥ 1 6 0° | ||
| Visible distance | ≥3 meters | ||
| Brightness uniformity | ≥97% | ||
| Contrast | ≥5000:1 | ||
|
PROCCESSING PARAMETER |
Signal processing bits | 16 bits*3 | |
| grayscale | 65536 | ||
| control distance | Network cable: 100 meters, Optical fiber: 10 kilometers | ||
| drive mode | High gray-scale constant current source driver IC | ||
| frame rate | ≥ 60HZ | ||
| refresh rate | ≥ 384 0 Hz | ||
| way to control | Synchronize | ||
| Brightness adjustment range | 0 to 100 stepless adjustment | ||
|
Operation parameter |
Continuous working time | ≥72 hours | |
| Typical life | 100,000 hours | ||
| Protection class | IP20 | ||
| range of working temperature | -20℃ to 50℃ | ||
| Operating humidity range | 10 %- 80% RH non-condensing | ||
| Storage temperature range | -20 ℃ to 60 ℃ | ||
|
Electric parameter |
Operating Voltage | DC: 4.2-5V | |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | ||
| Maximum power consumption | 680W / ㎡ _ | ||
| Average power consumption | 270W / ㎡ _ | ||
