P1.875mm Indoor Rental LED Screen Easy Installation Convenient
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC/ETL |
| Model Number: | P1.875mm |
|
Detail Information |
|||
| Pixel Pitch: | 1.875mm | Module Resolution: | 160 (W)* 90 (H) |
|---|---|---|---|
| Module Size: | 300mm * 168.75mm * 12.6mm | White Balance Brightness: | ≥600 Cd/㎡ |
| Horizontal Viewing Angle: | ≥ 140° | Vertical Viewing Angle: | ≥ 120° |
| Protection Class: | IP20 | ||
| High Light: | P1.875mm Indoor Rental Led Screen,IP20 Indoor Rental Led Screen,P1.875mm Stadium Advertising Boards |
||
Product Description

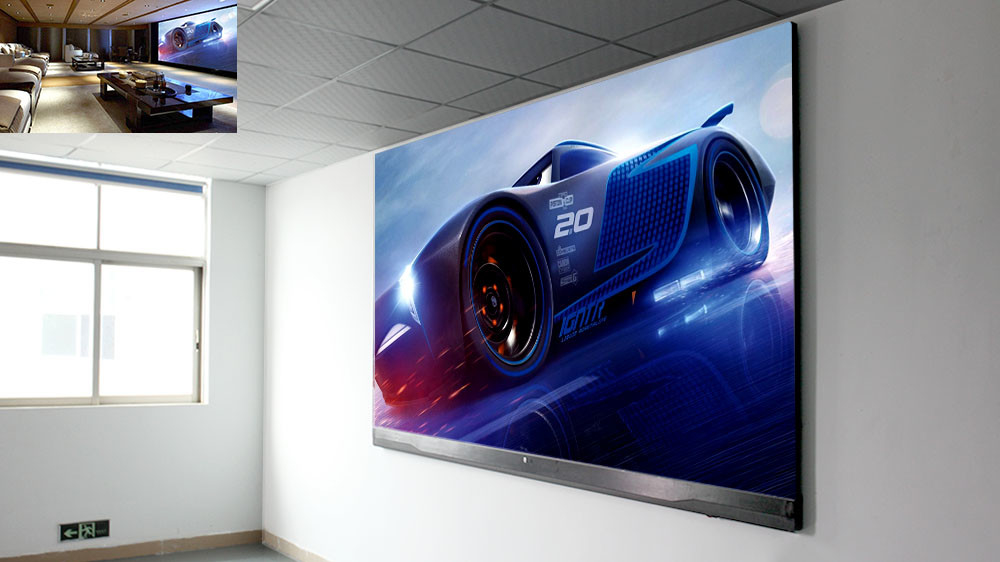

P1.875mm Indoor Rental LED Screen Easy Installation Convenient
Easy installation convenient P1.875mm Aluminum module indoor LED display screen
1. Keep the minimum error to ensure the perfect connection of the splicing, so that the screen is more flat than the conventional bottom case, and it is easier to install and splicing
Made of aluminum material, the structure is firm and not easy to deform, and the good thermal conductivity makes the module easier to dissipate heat, and the module is more stable under high and low temperature changes.
2. The aluminum bottom shells in the world generally use 3M glue to install the PCB. The Chengtong aluminum bottom shell can not only be installed by sticking, but also can be installed by back-locking screws, which can make the PCB fit the aluminum bottom perfectly. Guaranteed flatness and accuracy.
white balance brightness :≥600 cd/㎡
color temperature :3200K—9300K adjustable
| project | parameter | Remark | |
Basic parameter
| pixel pitch | 1.875mm _ | |
| pixel structure | 1R1G1B | ||
| pixel density | 284089 /m 2 | ||
| Module resolution | 160 (W)* 90 (H) | ||
| Module size | 300mm * 168.75mm * 12.6mm | ||
Optic parameter
| Single point luminance, chromaticity correction | have | |
| white balance brightness | ≥600 cd/㎡ | ||
| color temperature | 3200K—9300K adjustable | ||
| Horizontal viewing angle | ≥ 140° | ||
| vertical viewing angle | ≥ 120° | ||
| Visible distance | ≥3 meters | ||
| Brightness uniformity | ≥97% | ||
| Contrast | ≥3000:1 | ||
Operation characteristic
| Signal processing bits | 16 bits*3 | |
| grayscale | 65536 | ||
| control distance | Network cable: 100 meters, Optical fiber: 10 kilometers | ||
| drive mode | High gray-scale constant current source driver IC | ||
| frame rate | ≥ 60HZ | ||
| refresh rate | ≥ 384 0 Hz | ||
| way to control | Synchronize | ||
| Brightness adjustment range | 0 to 100 stepless adjustment | ||
Processing performance
| Continuous working time | ≥72 hours | |
| Typical life | 50,000 hours | ||
| Protection class | IP20 | ||
| range of working temperature | -20℃ to 50℃ | ||
| Operating humidity range | 10 %- 80% RH non-condensing | ||
| Storage temperature range | -20 ℃ to 60 ℃ | ||
Electricity parameter | Operating Voltage | DC: 4.2-5V | |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | ||
| Maximum power consumption | 680W / ㎡ _ | ||
| Average power consumption | 270W / ㎡ _ | ||
