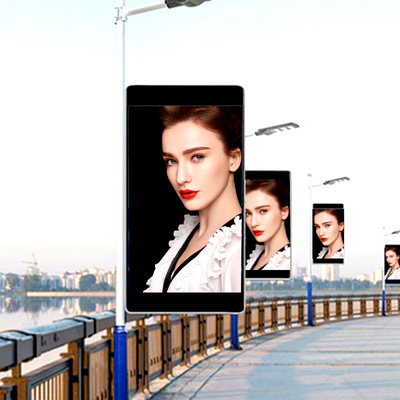

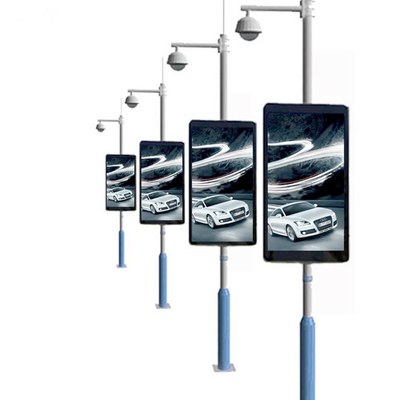

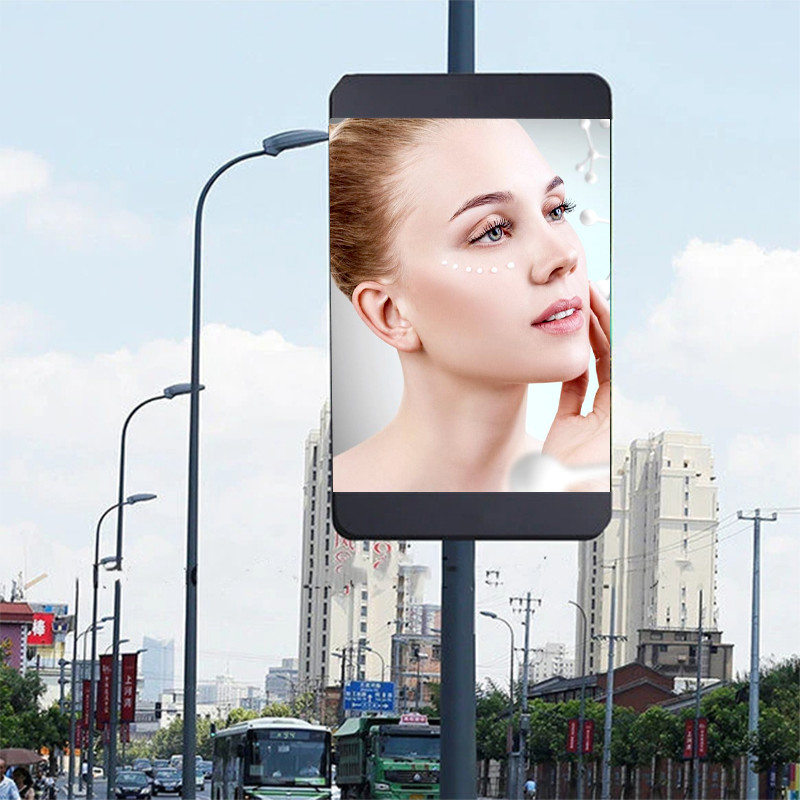

Lamp Pole 1R1G1B Road LED Display Roadside Advertising Board
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC |
| Model Number: | P2.5mm |
|
Detail Information |
|||
| Product Name: | Street Light Pole LED Display | PITCH: | 2.5mm |
|---|---|---|---|
| Characteristic: | Real-time Environmental Monitoring | Application: | Speed Road,center Road,park |
| Brightness: | 5000cd | Module Size: | 320mm*160 |
| Color Temperature: | 3200-9300K | View Angle: | 120º |
| Brightness Uniformity: | ≧97% | ||
| High Light: | 1R1G1B Road LED Display,P2.5mm Lamp Pole Display,1R1G1B Roadside Led Signs |
||
Product Description
Lamp Pole 1R1G1B Road LED Display Roadside Advertising Board
P2.5mm Street Light Pole Led Display Road Led Display For Advertisement
Product Details :
1 . It integrates the functions of Internet , Internet of Things, remote interaction , etc . It has the characteristics of high brightness , high color rendering coefficient , and built-in temperature sensing device that can automatically adjust the brightness . It can also accurately control the terminal LED advertising machine and adapt to Windows , Android , IOS system , with remote power supply , power off, timing switch , digital screen synchronization , ambient light sensing , real-time environmental monitoring (temperature , humidity , wind speed , wind direction , noise , PM2.5 , PM10) and other functions .
2 . This LED light pole screen box adopts a unique shape design , which is simple and elegant, and its shape is novel and beautiful. It is assembled by standardized modules, and the lamp surface is filled with glue and waterproof, which fully meets the use of outdoor environment. Since it is installed on the light pole , in order to perfectly combine with the light pole , a special installation structure is designed , the installation process is simple and fast , and the maintenance is convenient .
3 . As a smart city terminal , the LED smart light pole screen has the function of real-time information release , can immediately release emergency information , and automatically generate a play log ; the content split-screen display function , that is , one screen can play text , video and pictures at the same time; fixed-point delivery Function, content is played at a fixed point, different content can be played on the same screen , and the same content can be played on different screens .
parameters:
| project | parameter | Remark | |
|
BASIC PARAMETER |
pixel pitch | 2.5mm _ | |
| pixel structure | 1R1G1B | ||
| pixel density | 160000 /m 2 | ||
| Module resolution | 128 (W)* 64 (H) | ||
| Module size | 320mm * 160mm _ | ||
|
OPTIC PARAMETER |
Single point luminance, chromaticity correction | have | |
| white balance brightness | ≥ 5 0 00cd/㎡ | ||
| color temperature | 3200K—9300K adjustable | ||
| Horizontal viewing angle | ≥ 120° | ||
| vertical viewing angle | ≥ 120° | ||
| Visible distance | ≥8 meters | ||
| Brightness uniformity | ≥97% | ||
| Contrast | ≥ 5 000:1 | ||
|
PROCCESSING PARAMETER |
Signal processing bits | 16 bits*3 | |
| grayscale | 16Bit | ||
| control distance | Gigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers | ||
| drive mode | High gray-scale constant current source driver IC | ||
| frame rate | ≥ 60HZ | ||
| refresh rate | ≥ 1920 Hz | ||
| way to control | Synchronize | ||
| Brightness adjustment range | 0 to 100 stepless adjustment | ||
|
OPERATION PARAMETER |
Continuous working time | ≥72 hours | |
| Typical life | 50,000 hours | ||
| Protection class | Front IP65, back IP43 | ||
| range of working temperature | -20℃ to 50℃ | ||
| Operating humidity range | 10 %- 80% RH non-condensing | ||
| Storage temperature range | -20 ℃ to 60 ℃ | ||
|
ELECTRIC PARAMETER |
Operating Voltage | DC 5V | |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | ||
| Maximum power consumption | 8 5 0W/ ㎡ | ||
| Average power consumption | 350W/ ㎡ | ||
After-sale service
Rest assured to buy it and feel free to contact us if you have any problems of this product .
