Outdoor P4mm Street Light Pole LED Display Smart HD Full Color
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC |
| Model Number: | P4mm |
|
Detail Information |
|||
| Product Name: | Lighting Pole LED Display | PITCH: | 4mm |
|---|---|---|---|
| Specification: | Waterproof / HD / Full Color | Module Resolution: | 80 (W)* 40 (H) |
| Refresh Rate: | ≥ 1920 Hz | Waterproof: | IP65 |
| Brightness: | ≧5000cd | View Distace: | 8m |
| Power: | Power Saving | Module Size:: | 320*160mm |
| Box Size: | 640*960 | Characteristic: | Adapt To Windows , Android, IOS System |
| High Light: | FCC Street Light Pole LED Display,5000cd Street Light Pole LED Display,5000cd Smart LED Screen |
||
Product Description

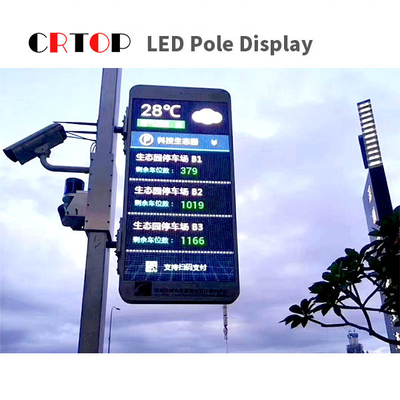

Outdoor P4mm Street Light Pole LED Display Smart HD Full Color
highway road Lighting Pole P4mm smart LED screen led panel for roadside Advertising
Product Advantages :
1 . High definiton , high brightness 6500nits .
2 . Automatic brightness adjustment .
3 .Outdoor dust-proof and IP65 waterpoof .
4 . Intelligent temperature control .
5 . Remote control management .
6.Box size 767mm*1352mm, weight is only 15.8kg;
6.It integrates the functions of Internet, Internet of Things, remote interaction, etc. It has the characteristics of high brightness, high color rendering coefficient, and built-in temperature sensing device that can automatically adjust the brightness. It can also accurately control the terminal LED advertising machine and adapt to Windows , Android, IOS system, with remote power supply, power off, timing switch, digital screen synchronization, ambient light sensing, real-time environmental monitoring (temperature, humidity, wind speed, wind direction, noise, PM2.5, PM10) and other functions

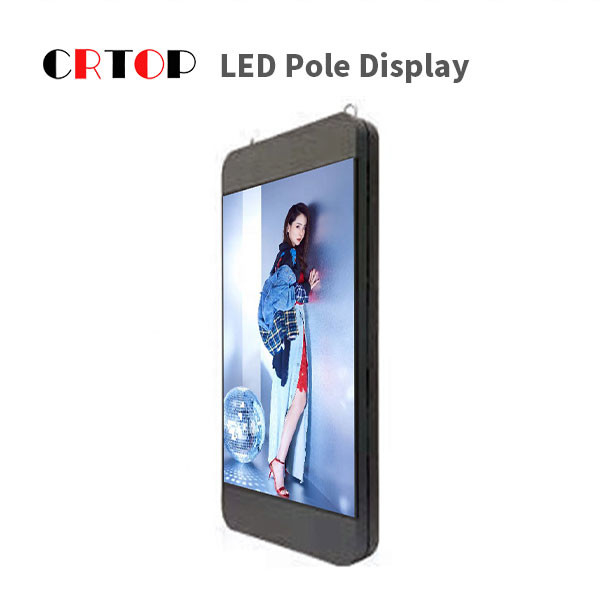

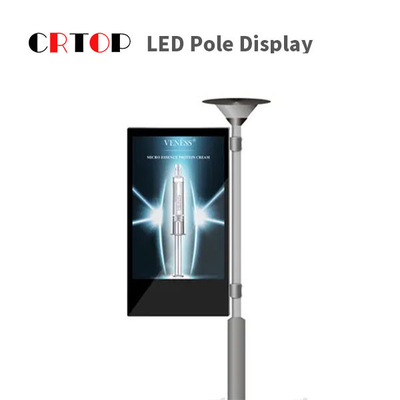

7.This LED light pole screen box adopts a unique shape design, which is simple and elegant, and its shape is novel and beautiful. It is assembled by standardized modules, and the lamp surface is filled with glue and waterproof, which fully meets the use of outdoor environment. Since it is installed on the light pole, in order to perfectly combine with the light pole, a special installation structure is designed, the installation process is simple and fast, and the maintenance is convenient.
parameters:
| project | parameter | |
|
BASIC PARAMETER |
pixel pitch | 4mm |
| pixel structure | 1R1G1B | |
| pixel density | 62500/m 2 | |
| Module resolution | 80 (W)* 40 (H) | |
| Module size | 320mm * 160mm _ | |
|
OPTIC PARAMETER |
Single point luminance, chromaticity correction | have |
| white balance brightness | ≥ 50 00cd/㎡ | |
| color temperature | 3200K—9300K adjustable | |
| Horizontal viewing angle | ≥ 120° | |
| vertical viewing angle | ≥ 120° | |
| Visible distance | ≥8 meters | |
| Brightness uniformity | ≥97% | |
| Contrast | ≥3000:1 | |
|
PROCCESSING PARAMETER |
Signal processing bits | 16 bits*3 |
| grayscale | 16Bit | |
| control distance | Gigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers | |
| drive mode | High gray-scale constant current source driver IC | |
| frame rate | ≥ 60HZ | |
| refresh rate | ≥ 1920 Hz | |
| way to control | Synchronize | |
| Brightness adjustment range | 0 to 100 stepless adjustment | |
|
OPERATION PARAMETER |
Continuous working time | ≥72 hours |
| Typical life | 50,000 hours | |
| Protection class | Front IP65, back IP43 | |
| range of working temperature | -20℃ to 50℃ | |
| Operating humidity range | 10 %- 80% RH non-condensing | |
| Storage temperature range | -20 ℃ to 60 ℃ | |
|
ELECTRIC PARAMETER |
Operating Voltage | DC 5V |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | |
| Maximum power consumption | 890W/ ㎡ | |
| Average power consumption | 350W/ ㎡ | |
