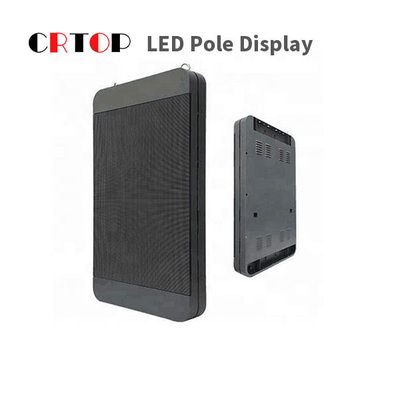

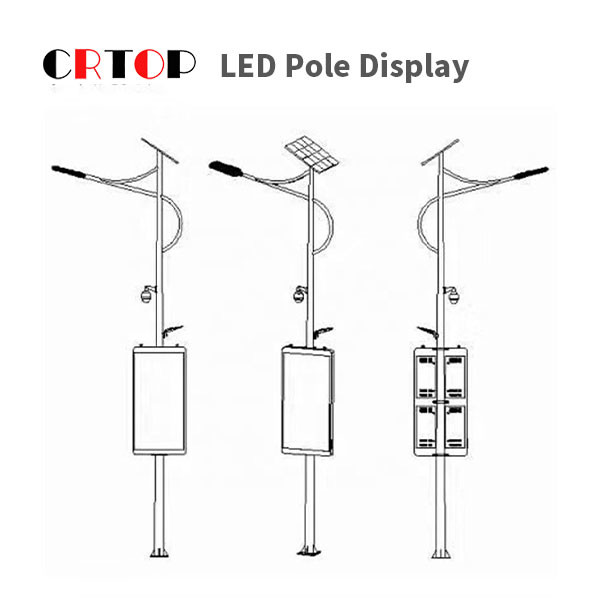

Small Size High Resolution LED Panel For Lighting Pole Advertising
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/CCC |
| Model Number: | P2.5mm |
|
Detail Information |
|||
| Product Name: | Lighting Pole LED Display | PITCH: | 2.5mm |
|---|---|---|---|
| Specification: | Waterproof / HD / Full Color | Module Resolution: | 128 (W)* 64 (H) |
| Control Distance: | Gigabit Ethernet Cable: 100 Meters, Optical Fiber: 10 Kilometers | Refresh Rate: | ≥ 1920 Hz |
| Waterproof: | IP65 | Module Size:: | 320*160mm |
| High Light: | IP65 High Resolution LED Panel,P2.5mm Pole Advertising Board,IP65 Pole Advertising Board |
||
Product Description
Small Size High Resolution LED Panel For Lighting Pole Advertising
HD Full Color Lighting Pole LED Display With Small Size and High Resolution for Advertising
Product Advantages :
1 . High definiton , high brightness 6500nits .
2 . Automatic brightness adjustment .
3 .Outdoor dust-proof and IP65 waterpoof .
4 . Intelligent temperature control .
5 . Remote control management .
parameters:
| project | parameter | Remark | |
|
BASIC PARAMETER |
pixel pitch | 2.5mm _ | |
| pixel structure | 1R1G1B | ||
| pixel density | 160000 /m 2 | ||
| Module resolution | 128 (W)* 64 (H) | ||
| Module size | 320mm * 160mm _ | ||
|
OPTIC PARAMETER |
Single point luminance, chromaticity correction | have | |
| white balance brightness | ≥ 5 0 00cd/㎡ | ||
| color temperature | 3200K—9300K adjustable | ||
| Horizontal viewing angle | ≥ 120° | ||
| vertical viewing angle | ≥ 120° | ||
| Visible distance | ≥8 meters | ||
| Brightness uniformity | ≥97% | ||
| Contrast | ≥ 5 000:1 | ||
|
PROCCESSING PARAMETER |
Signal processing bits | 16 bits*3 | |
| grayscale | 16Bit | ||
| control distance | Gigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers | ||
| drive mode | High gray-scale constant current source driver IC | ||
| frame rate | ≥ 60HZ | ||
| refresh rate | ≥ 1920 Hz | ||
| way to control | Synchronize | ||
| Brightness adjustment range | 0 to 100 stepless adjustment | ||
|
OPERATION PARAMETER |
Continuous working time | ≥72 hours | |
| Typical life | 50,000 hours | ||
| Protection class | Front IP65, back IP43 | ||
| range of working temperature | -20℃ to 50℃ | ||
| Operating humidity range | 10 %- 80% RH non-condensing | ||
| Storage temperature range | -20 ℃ to 60 ℃ | ||
|
ELECTRIC PARAMETER |
Operating Voltage | DC 5V | |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | ||
| Maximum power consumption | 8 5 0W/ ㎡ | ||
| Average power consumption | 350W/ ㎡ | ||
