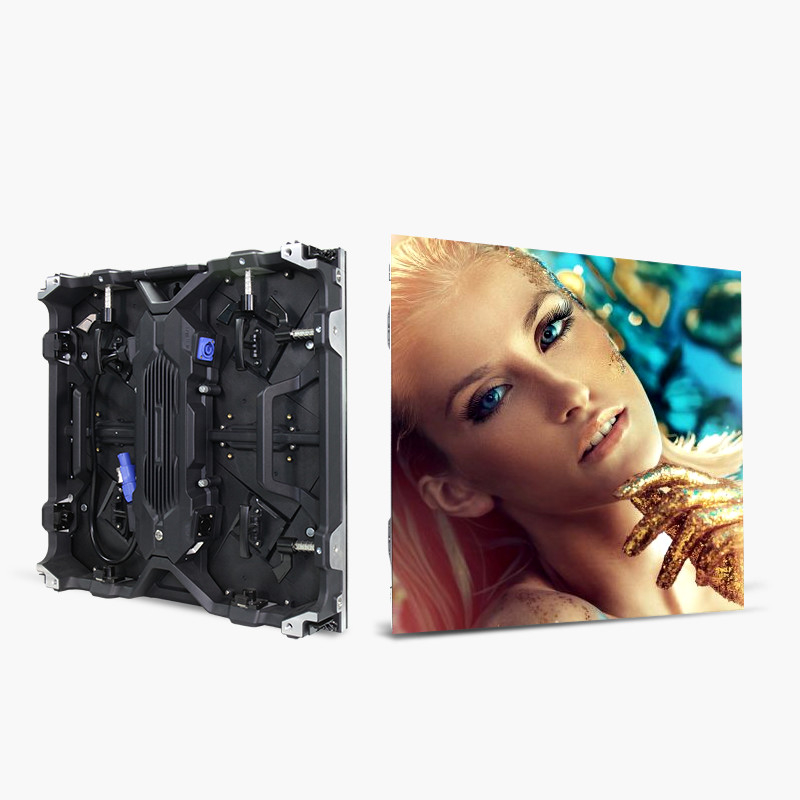

Rental Series 576x576mm Outdoor LED Screen P3.8mm P4.8mm
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC |
| Model Number: | P3.8mm/P4.8mm |
|
Detail Information |
|||
| Name: | Rental LED Screen | PITCH: | P3.8mm/P4.8mm |
|---|---|---|---|
| Module Size: | 288*288mm | Box Size: | 576*576mm |
| Material: | Aluminum Die Cast Cabinet | Refresh: | 1920-3840Hz |
| View Angle: | ≥140º | View Distance: | 5m |
| High Light: | P4.8mm Outdoor LED Screen,576x576mm Outdoor LED Screen,SMD Outdoor LED Screen |
||
Product Description
Quick detail of Rental LED Screen
1, Pixel Pitch: 3.8mm, 4.8mm
2, SMD LEDs, Wide viewing angle: 140°/ 120°.
3, Standard cabinet size: Customized
4, Grey Level: 12-14 Bit
5, Recommended minimum viewing distance: 5-7m.
6, Material: Die Casting Aluminum
7, Refresh Rate: 1920-3840Hz
8, IP Rating: IP65
| project | parameter | |
|
BASIC PARAMETER |
pixel pitch | 4.8 mm |
| pixel structure | 1R1G1B | |
| pixel density | 43402 / m2 | |
| Module resolution | 60 (W)* 60 (H) | |
| Module size | 288mm*288mm | |
| Box size | 576mmX576mm | |
|
OPTIC PARAMETER |
Single point luminance, chromaticity correction | have |
| white balance brightness | ≥50 00cd/㎡ | |
| color temperature | 2000K—12500K adjustable | |
| Horizontal viewing angle | ≥ 140° | |
| vertical viewing angle | ≥ 120° | |
| Visible distance | ≥4 meters | |
| Brightness uniformity | ≥97% | |
| Contrast | ≥5000:1 | |
|
Proccessing performace |
Signal processing bits | 16 bits*3 |
| grayscale | 12-14Bit | |
| control distance | Gigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers | |
| drive mode | High gray-scale constant current source driver IC | |
| frame rate | ≥ 60HZ | |
| refresh rate | 1920 -3840Hz | |
| way to control | Synchronize | |
| Brightness adjustment range | 0 to 100 stepless adjustment | |
|
Operation parameter |
Continuous working time | ≥72 hours |
| Typical life | 50,000 hours | |
| Protection class | IP 65 | |
| range of working temperature | -20℃ to 50℃ | |
| Operating humidity range | 10 %- 80% RH non-condensing | |
| Storage temperature range | -20 ℃ to 60 ℃ | |
|
Electric parameter |
Operating Voltage | DC 5V |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | |
| Maximum power consumption | 700W/ ㎡ | |
| Average power consumption | 260W/ ㎡ | |
Feature Of Indoor Rental LED Screen
l High IP Rating IP65, good waterproof and dust resistance, suitable for every condition.
l Customized arc-side locks design, the angle can be adjusted to achieve arc, round and S-shaped splicing.
l High-contrast outdoor pure black light, non-destructive refresh and grayscale. Achieve ultra-high contrast 5000:1, low brightness 800-1000cd adjustable, protect the human eye, meet indoor and outdoor application scenarios
l Configure PWM constant current drive IC to eliminate the "caterpillar" image, low brightness and no color cast, no color block, gray scale is too smooth and no jump, no first line dark phenomenon, refresh 1920- 3840HZ, complete guarantee 12-16bit gray scale, Real color reproduction, high quality display
l The flat spray mask design ensures that the entire screen plane is free of any warping, and the high-quality black protective colloid is used to perfectly realize the full-angle display of the lamp bead.
l Seamless connection.
l Special design for the mask to realize higher contrast and larger viewing angle.
l Signal backup and power backup.
l Brightness and chromaticity calibration.
l Mixed use of cabinets from different batches
Application Of Indoor Rental LED Screen
· Business organizations
Supermarket, large-scale shopping malls, star -rated hotel, travel agencies.
· Financial organizations
Bank, insurance companies, post offices, hospital, schools
· Public place
Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting room
· Entertainments
Movie theaters, clubs, stages
Suit for advertisement, stadium, exhibition, TV-Show, mansion, video wall, shopping mall, banks, schools, bus station, airport, gym, market, factories, monitoring centers, hospital, bar etc.
Special designs:
1. Electric leakage protection design with wooden floor Non-slip design
a. Led truck screen with anti-vibration, butterfly connector is more anti-vibration,
b. More stable current contact, less info loss,
c. More stable transmission function. Suitable for led screen truck.
2. Reliable design: connect coterminous led cabinet by connecting plate and locating pin.
3.The protection level can reach up to IP65, and applicable to any rainy weather,t hus can used in any outdoor environment.
4. Wider viewing angle: Horizontal≥140º; Vertical≥120º, can attract more audiences' eye, very good for outdoor advertising.
Our Services
1. 7 Years professional led display manufacturer,
2. Shot delivery time: 5-15days.
3. Factory price.
4. OEM and ODM service
5. We can design special product for you.
6. 30% deposit for producing,70% balance to be paid before shipment.
7. EXW, FOB, CIF C&F, FCA, DDU, colorful trade term.
1. After-sales service:
1) Service principles: response in time, solve problems as soon as possible and ensure the use.
2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
4) Under normal use and storage, Our Company will be responsible for the equipment.
2. Pre-sales service:
1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions.
2) Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
