P2.5mm Cylintrical LED Display Screens Custom Special Shapes
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC |
| Model Number: | P2.5m |
|
Detail Information |
|||
| PITCH: | 2.5MM | SHAPE: | CUSTOM |
|---|---|---|---|
| Single Pixel Correction: | Have | Brightness: | 0-100 Adjustable |
| Color Temperature: | 3200-9300K | View Angle: | 170º |
| Contrast Ratio: | 8000:1 | Refresh: | 1920Hz |
| Protect Class: | IP20 | ||
| High Light: | P2.5mm Cylintrical LED Display,IP20 Creative LED Video Wall,IP20 Curved Video Wall |
||
Product Description
P2.5mm Cylintrical LED Display Screens Custom Special Shapes
P2.5mm special shape cylintrical led display led screen for custom size
LED full color special-shaped screen (cylindrical screen) :
Advantage
Cylindrical LED display adopts a variety of scanning technologies and modular design technology, which has higher reliability and stability. Not easy to die, low failure rate, easy maintenance and other advantages.
Features:
1. The overall design of the system provides the design of LED display products, combined with the detailed design of the overall implementation of the specific requirements of the project, all equipment, control, power distribution, installation, maintenance and debugging, etc., until the completion acceptance is qualified.
2. The LED display unit adopts a flexible unit design, the appearance of the unit has good stability, and has the characteristics of flame resistance, UV resistance, oxidation resistance, corrosion resistance, and rust resistance. The structure and packaging process, and the outdoor screen requires the front of the display unit to reach IP65 or above. The degree of protection, waterproof and prevent the entry of moisture.
3. The display unit process meets: fine, flat, firm, unit integrated design, easy installation, disassembly and live maintenance, and the mechanical strength within 10 years is not less than 70%. The display unit has the functions of moisture-proof, anti-corrosion, fire-proof, dust-proof, high and low temperature, anti-static, anti-electromagnetic interference, anti-vibration and circuit protection.
4. The display unit and the whole system have good anti-electromagnetic interference performance, which conforms to the electromagnetic compatibility standard.
5. The display system adopts constant current source drive control, the drive chip has PMW pulse width modulation function, and has 16bit color processing and 10bit grayscale processing capabilities.
6. The interior of the display unit is designed with an independent heat dissipation cycle, and the component materials have good thermal conductivity. The heat dissipation design can balance the ambient temperature inside and outside the display unit, and the display unit system runs stably.
7. The audio and video interfaces of the display system and the internal processing of audio and video meet the professional radio and television specifications. The display screen can combine the characteristics of radio and television signals to provide vivid, complete and high-quality LED display for television broadcast signals.
8. The color of the image displayed on the screen is soft and realistic, with a strong sense of layering and three-dimensionality. It adopts single-point brightness and color correction technology. When the damaged module is replaced, the scanning board can automatically read the correction data, and the brightness and color display are uniform, realizing true color restoration. Achieve broadcast-grade 1024-level grayscale.
9. The system works stably and reliably, with strong anti-interference ability, and can work continuously for more than 72 hours. The user-friendly design of the control system software operation interface makes the operation simple, and provides property rights and testing, and software upgrades and updates.
10. The display unit is independently controlled, and a single point of failure does not affect the use of the entire screen. The unit supports hot swapping with electricity. After the unit is replaced, it is corrected by the system, and the entire screen is displayed uniformly.
Application range:

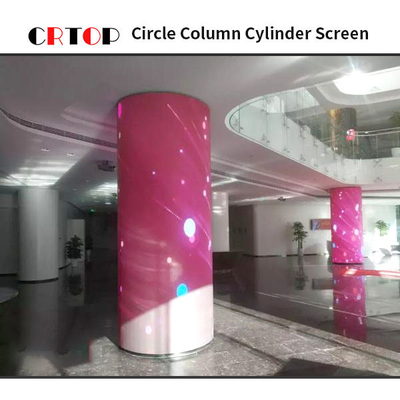

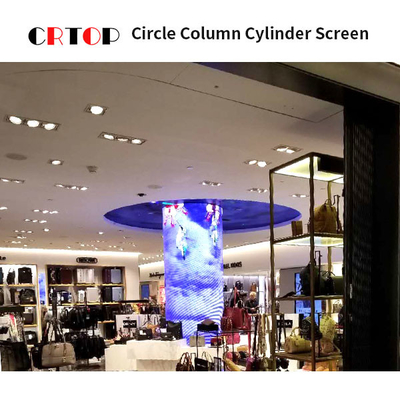

Large hotels, advertising media, education, art exhibition halls , large supermarkets, public places, bars, entertainment venues , etc.
Display case description
( 1 ) The indoor smart tree solution of Chengtong Optoelectronics adopts P2.5-in-one surface mount full-color special- shaped LED display module ; the pixel pitch is 2.5mm (pixel density is 160,000 points/square meter)
( 2 ) Display size : preliminary design

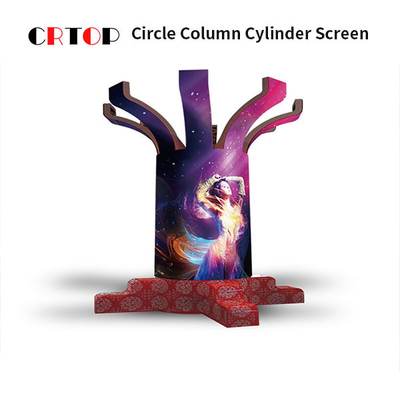

Wisdom Tree P2.5 full-color special-shaped screen: Specifications: P 2.5 three-in-one surface-mounted full-color screen , the top diameter of the display is 2.825 meters long and divided into nine petals about 3.8 square meters, the cylinder height is 2.560 meters, about the middle cylinder outer diameter is 1.226 The meter is about 9.83 square meters, the diameter of the base is 2.825 meters, and the five petals are about 2.12 square meters ; the total area is about 15.75 square meters , the unit module size: special-shaped customization, the average power consumption per square meter of the screen body: 350w, the maximum power consumption per square meter of the screen body: 800w, the total power consumption of the whole screen: 12KW.
cylindrical screen display technical parameters
Technical parameter Technical parameter : ( T=25 ℃ )
| project | parameter | |
|
BASIC PARAMETER |
pixel pitch | 2.5mm _ |
| pixel structure | 1R1G1B | |
| pixel density | 160000 /m 2 | |
| Module resolution | Custom shaped | |
| Module size | Custom shaped modules | |
| Box size | Customized special-shaped box | |
|
OPTO PARAMETER |
Single point luminance, chromaticity correction | have |
| white balance brightness | ≥ 1000 cd/㎡ | |
| color temperature | 3200K—9300K adjustable | |
| Horizontal viewing angle | ≥ 1 7 0° | |
| vertical viewing angle | ≥ 1 7 0° | |
| Visible distance | ≥10 meters | |
| Brightness uniformity | ≥97% | |
| Contrast | ≥ 8 000:1 | |
|
PROCCESSING PARAMETER |
Signal processing bits | 16 bits*3 |
| grayscale | 16Bit | |
| control distance | Gigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers | |
| drive mode | High gray-scale constant current source driver IC | |
| frame rate | ≥ 60HZ | |
| refresh rate | ≥ 1920 Hz | |
| way to control | Synchronize | |
| Brightness adjustment range | 0 to 100 stepless adjustment | |
|
OPERATION PARAMETER |
Continuous working time | ≥72 hours |
| Typical life | 50,000 hours | |
| Protection class | IP20 | |
| range of working temperature | -20℃ to 50℃ | |
| Operating humidity range | 10 %- 80% RH non-condensing | |
| Storage temperature range | -20 ℃ to 60 ℃ | |
| ELETRIC PARAMETER | Operating Voltage | DC 5V |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | |
| Maximum power consumption | 800W / ㎡ _ | |
| Average power consumption | 350W/ ㎡ | |
Our Services
1. 27 Years professional led display manufacturer,
2. Shot delivery time: 5-15days.
3. Factory price.
4. OEM and ODM service
5. We can design special product for you.
6. 30% deposit for producing,70% balance to be paid before shipment.
7. EXW, FOB, CIF C&F, FCA, DDU, colorful trade term.
1. After-sales service:
1) Service principles: response in time, solve problems as soon as possible and ensure the use.
2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
4) Under normal use and storage, Our Company will be responsible for the equipment.
2. Pre-sales service:
1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions.
2) Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
| Q: What is the brightness, viewing angle and wavelength of the LED? |
|
A: Luminous Intensity is equal to the amount of luminous flux emitted into a very small solid angle at a defined angular orientation from the light source. The measurement for luminous intensity is the candela. Symbol is Iv. Viewing Angle is the total cone angle in degrees encompassing the central, high luminous intensity portion of the LED beam from the on-axis peak to the off-axis point where the LED intensity is 50% of the on-axis intensity. This off-axis point is known as theta one-half ( 1/2). Two times 1/2 is the LEDs' full viewing angle; however, light is visible beyond the1/2 point. Wavelength is the distance between two points of corresponding phase and is equal to waveform velocity divided by frequency. It defines what color human eyes could recognize |
| Q: What is dominant wavelength? Please specify the ranges of wavelength in red, green and blue color respectively. |
| A: Dominant wavelength is defined as the best range of wavelength showing the most natural color recognized by human eyes. Researches indicate that fixed colors with wavelength of 620-630nm (red), 520-530nm (green) and 460-470nm (blue), in fact mixed in a particular proportion, can get the pure white. That is, in display field, people use luminous materials with above wavelength to make "compounded" white more natural.In order to get a good balance white led display, we specify the led colors with wavelength within 4nm for each color |
| Q: Which chip vendors are you buying from? |
| A: It depends on the Customer's requirement. We can purchase from Japan, Korea, Europe, USA. We are using chips mainly from Taiwan |
| Q: What is the chip size you're using for outdoor display? How about indoor display? |
| A: For outdoor display, we're using 12mil chip for red, 14mil for both green and blue. Regarding indoor display, 9mil for red, 12mil for green and blue are currently adopted |
| Q: How much will the brightness of LED drop down after 1000hrs? |
| A: Based on the result of aging test, the brightness decay of green LED is around 5%-8%, while blue is around 10%-14% and red is around 5%-8% |
