P1.875mm Creative LED Display Screen For Supermarket Shopping Mall
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC |
| Model Number: | p1.875mm |
|
Detail Information |
|||
| Pitch: | 1.875mm | Material: | Iron Box |
|---|---|---|---|
| Module Size: | 300x60x36.5mm | Box Size:: | 600x60mm |
| Module Resolution: | 160*32 Dots | Weight: | 1.65kgs |
| Brightness: | ≧600cd | Color Temperature: | 3200-9300K |
| Contrast Ratio: | 3000:1 | ||
| High Light: | P1.875mm Creative LED Display Screen,160*32dots Creative LED Display Screen,P1.875mm Shelf LED Screen |
||
Product Description
P1.875mm Creative LED Display Screen For Supermarket Shopping Mall

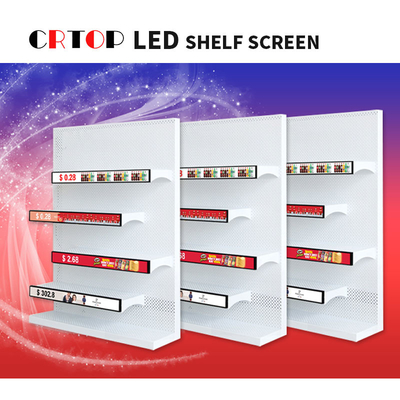

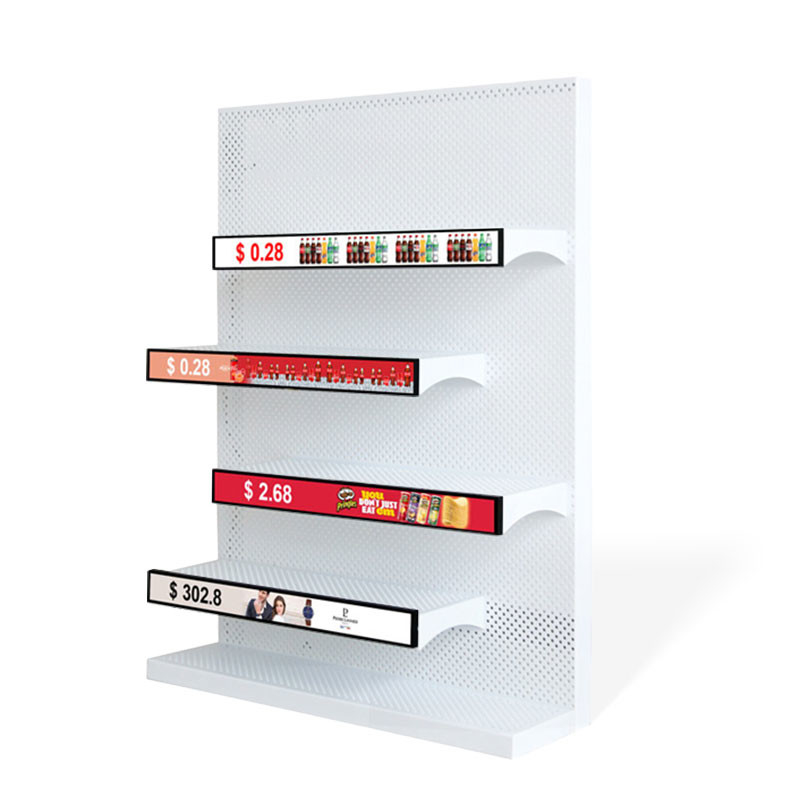

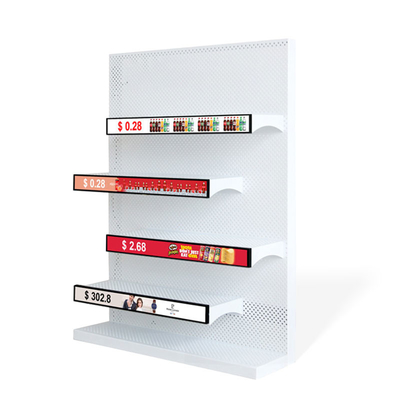

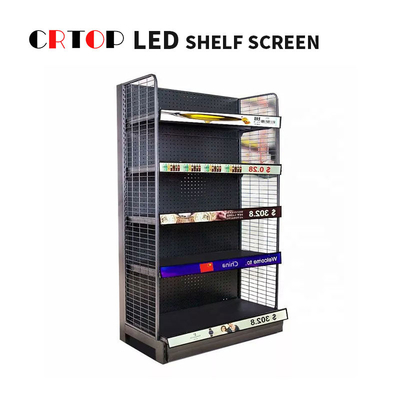

P1.875mm shelf led screen for supermarket,shopping mall
LED shelf screen features and parameters
1, Chengtong shelf screen is a product specially tailored for supermarkets and shopping malls. Conventional length 600mm, width 60mm, and length 300mm, width 60mm can be arbitrarily spliced, matching the shelf design of most supermarkets on the market. In addition, the 1.875 dot pitch design is adopted, and the screen display is clearer.
2, High-definition and high-brush light board, low power consumption, energy saving and environmental protection, using COB packaging, ultra-high protection, no fear of bumps, frictions, etc. from carts or customers, no fear of accidental water spray, etc., while increasing the durability of the product
3,The product only needs to reserve the power supply and signal interface, plug and play, easy to install, and can be directly fixed on the shelf through the connecting piece on the back of the screen with screws
Product name: LED shelf screen
Overall size: 600*60*36.5mm
Weight: 1.65kg
Box material: iron
Pixel pitch: 1.875mm
interface:
parameter:
| model | Shelf screen |
| Module Resolution (W/H) | 160*32 |
| Module size | 300*60mm |
| screen size | 600*60mm |
| pixel density | 284444 |
| brightness | ≥600cd/ ㎡ |
| white balance color temperature | 3200-9300K adjustable |
| Refresh rate (Hz) | ≥1920 |
| Contrast | ≥3000:1 |
| Maximum power (W/m²) | 600 |
| Average power (W/m²) | 260 |
| Supply voltage | DC4.2-5V |
| Driver IC | High gray-scale constant current source driver IC |
| grayscale | 65536 |
| Continuous working time | ≥72H |
| LED life (H) | 100000 |
