P2mm Splice Curved Flexible LED Display Screen High Refresh 64s
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC |
| Model Number: | P2mm |
|
Detail Information |
|||
| Pixel Pitch: | P2mm | Module Resolution: | 128 (W)* 64 (H) |
|---|---|---|---|
| Module Size: | 256mm * 128mm | Refresh Rate: | High Refresh 64s |
| Light: | Hongsheng | White Balance Brightness: | ≥700 Cd/㎡ |
| Contrast: | ≥3000:1 | Protection Class: | IP20 |
| Brightness Adjustment Range: | 0 To 100 Stepless Adjustment | Single Point Luminance, Chromaticity Correction: | Have |
| High Light: | P2mm Flexible LED Display Screen,FCC P2 LED Display Screen,High Refresh 64s Curved LED Display |
||
Product Description
P2mm Splice Curved Flexible LED Display Screen High Refresh 64s

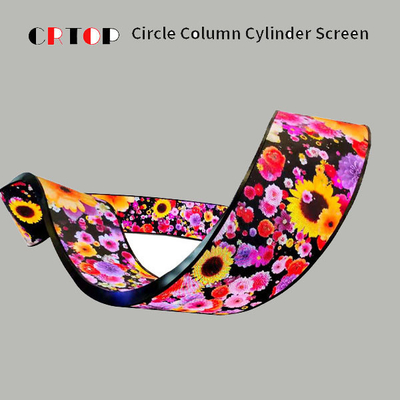

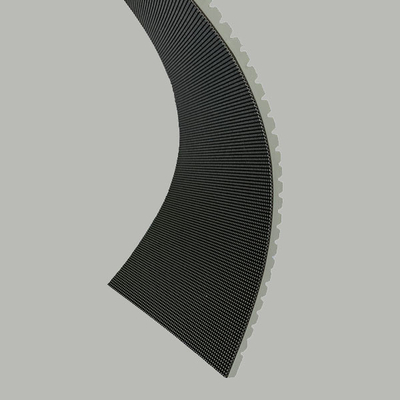

P2mm Splice curved screen, cylinder, curved surface soft module for LED Display

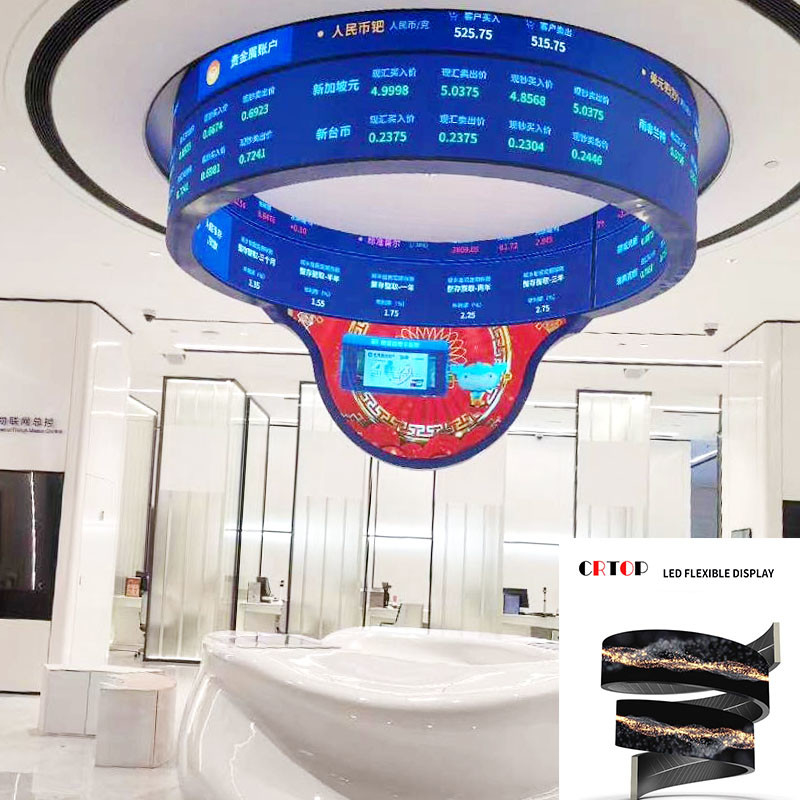

1. Support floor-standing, hanging, embedded, hoisting and other installation methods.
2. Strong flexibility, can be bent up to 120°.
3. By rotating the magnetic column, the height can be adjusted, thereby adjusting the flatness of the entire screen body
Module size: 320*160mm 256*128mm 240*120mm 200*150mm
Module size: 320*160mm:
PITCH: P1.86mm P2mm P2.5mm P3.07mm
Module size: 200*150 mm:
PITCH: P1.5625mm P1.875mm P1.579mm P2.5mm P3mm
Module size: 256*128mm:
PITCH: P2mm P4mm
| project | parameter | Remark | |
|
BASIC PARAMETER |
pixel pitch | 2mm | |
| pixel structure | 1R1G1B | ||
| pixel density | 25 0000/m 2 | ||
| Module resolution | 128 (W)* 64 (H) | ||
| Module size | 256mm * 128mm _ | ||
|
OPTIC PARAMETER |
Single point luminance, chromaticity correction | have | |
| white balance brightness | ≥700 cd/㎡ | ||
| color temperature | 3200K—9300K adjustable | ||
| Horizontal viewing angle | ≥ 140° | ||
| vertical viewing angle | ≥ 120° | ||
| Visible distance | ≥3 meters | ||
| Brightness uniformity | ≥97% | ||
| Contrast | ≥3000:1 | ||
|
PROCCESSING PERFORMANCE |
Signal processing bits | 16 bits*3 | |
| grayscale | 65536 | ||
| control distance | Network cable: 100 meters, Optical fiber: 10 kilometers | ||
| drive mode | High gray-scale constant current source driver IC | ||
| frame rate | ≥ 60HZ | ||
| refresh rate | ≥ 3840 Hz _ | ||
| way to control | Synchronize | ||
| Brightness adjustment range | 0 to 100 stepless adjustment | ||
|
OPERATION PERFORMANCE |
Continuous working time | ≥72 hours | |
| Typical life | 50,000 hours | ||
| Protection class | IP20 | ||
| range of working temperature | -20℃ to 50℃ | ||
| Operating humidity range | 10 %- 80% RH non-condensing | ||
| Storage temperature range | -20 ℃ to 60 ℃ | ||
|
ELECTRIC PARAMETER |
Operating Voltage | DC 4.2-5V | |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | ||
| Maximum power consumption | 650W/ ㎡ | ||
| Average power consumption | 260W/ ㎡ | ||
