Ultra Light P1.5625mm Ultra Thin LED Display Screen IP20 Protection
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC/ETL |
| Model Number: | P1.5625mm |
|
Detail Information |
|||
| Pixel Pitch: | P1.5625mm | Module Resolution: | 128 (W)* 96 (H) |
|---|---|---|---|
| Module Size: | 200mm * 150mm | Refresh Rate: | ≥ 384 0 Hz |
| Light: | Hongsheng | White Balance Brightness: | ≥700 Cd/㎡ |
| Contrast: | ≥3000:1 | Protection Class: | IP20 |
| IC: | FM6363B | ||
| High Light: | P1.5625mm Ultra Thin LED Display,IP20 Ultra Thin LED Display,IP20 Ultra Thin LED Screen |
||
Product Description
Ultra Light P1.5625mm Ultra Thin LED Display Screen IP20 Protection
ultra-thin and ultra-light P1.5625mm soft module for LED display
1. Using special materials and advanced technology, ultra-thin and ultra-light, the thickness of the three sizes of modules is 9-10mm,

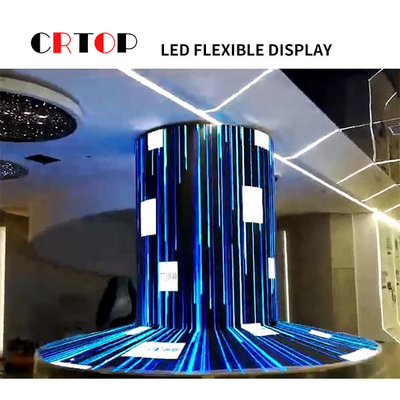

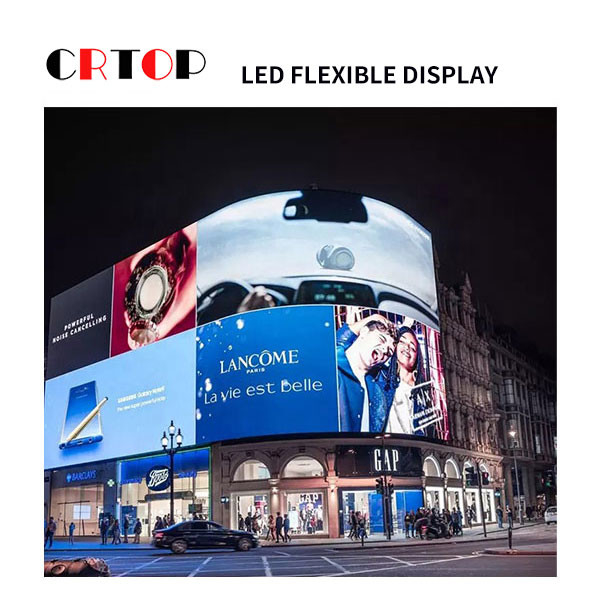

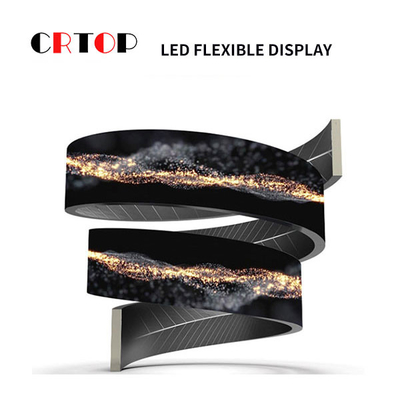

Strong flexibility, can be bent up to 120°, and can be shaped into any shape (cylinder, wave, ring, spherical, heterosexual, etc.)
2. Adopt strong magnetic adsorption installation, direct adsorption, more convenient installation and maintenance. The box body is omitted, the structural load is reduced, and the cost is effectively reduced. Support floor-standing, hanging, embedded, hoisting and other installation methods.
3. By rotating the magnetic column, the height can be adjusted, thereby adjusting the flatness of the entire screen body.
Module size: 320*160mm 256*128mm 240*120mm 200*150mm
Module size: 320*160mm:
PITCH: P1.86mm P2mm P2.5mm P3.07mm
Module size: 200*150 mm:
PITCH: P1.5625mm P1.875mm P1.579mm P2.5mm P3mm
Module size: 256*128mm:
PITCH: P2mm P4mm
| project | parameter | Remark | |
|
BASIC PARAMETER |
pixel pitch | 1.5625mm _ | |
| pixel structure | 1R1G1B | ||
| pixel density | 409600 /m 2 | ||
| Module resolution | 128 (W)* 96 (H) | ||
| Module size | 200mm * 150mm _ | ||
|
OPTIC PARAMETER |
Single point luminance, chromaticity correction | have | |
| white balance brightness | ≥ 700 cd /㎡ | ||
| color temperature | 3200K—9300K adjustable | ||
| Horizontal viewing angle | ≥ 140° | ||
| vertical viewing angle | ≥ 120° | ||
| Visible distance | ≥3 meters | ||
| Brightness uniformity | ≥97% | ||
| Contrast | ≥3000:1 | ||
|
PROCCESSING PERFORMANCE |
Signal processing bits | 16 bits*3 | |
| grayscale | 65536 | ||
| control distance | Network cable: 100 meters, Optical fiber: 10 kilometers | ||
| drive mode | High gray-scale constant current source driver IC | ||
| frame rate | ≥ 60HZ | ||
| refresh rate | ≥ 384 0 Hz | ||
| way to control | Synchronize | ||
| Brightness adjustment range | 0 to 100 stepless adjustment | ||
|
OPERATION PERFORMANCE |
Continuous working time | ≥72 hours | |
| Typical life | 50,000 hours | ||
| Protection class | IP20 | ||
| range of working temperature | -20℃ to 50℃ | ||
| Operating humidity range | 10 %- 80% RH non-condensing | ||
| Storage temperature range | -20 ℃ to 60 ℃ | ||
|
ELECTRIC PARAMETER |
Operating Voltage | DC: 4.2-5V | |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | ||
| Maximum power consumption | 650W / ㎡ _ | ||
| Average power consumption | 2 6 0 W/ ㎡ | ||
