Thin P3mm IP20 Flexible LED Display Screen 1R1G1B Pixel Structure
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC/ETL |
| Model Number: | P3mm |
|
Detail Information |
|||
| Pixel Pitch: | 3 Mm | Light: | Hongsheng |
|---|---|---|---|
| Refresh Rate: | Normal Refresh | Pixel Structure: | 1R1G1B |
| Module Size: | 240mm * 120mm _ | White Balance Brightness: | ≥700 Cd/㎡ |
| Signal Processing Bits: | 16 Bits*3 | Grayscale: | 65536 |
| High Light: | IP20 Flexible LED Display Screen,P3mm Flexible LED Display Screen,1R1G1B Thin Flexible Led Screen |
||
Product Description
Thin P3mm IP20 Flexible LED Display Screen 1R1G1B Pixel Structure
Thin and elegant P3mm soft module LED display
1. Adopt strong magnetic adsorption installation, direct adsorption, more convenient installation and maintenance. The box body is omitted, the structural load is reduced, and the cost is effectively reduced. Support floor-standing, hanging, embedded, hoisting and other installation methods

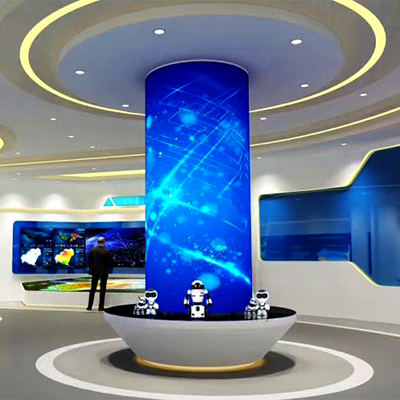

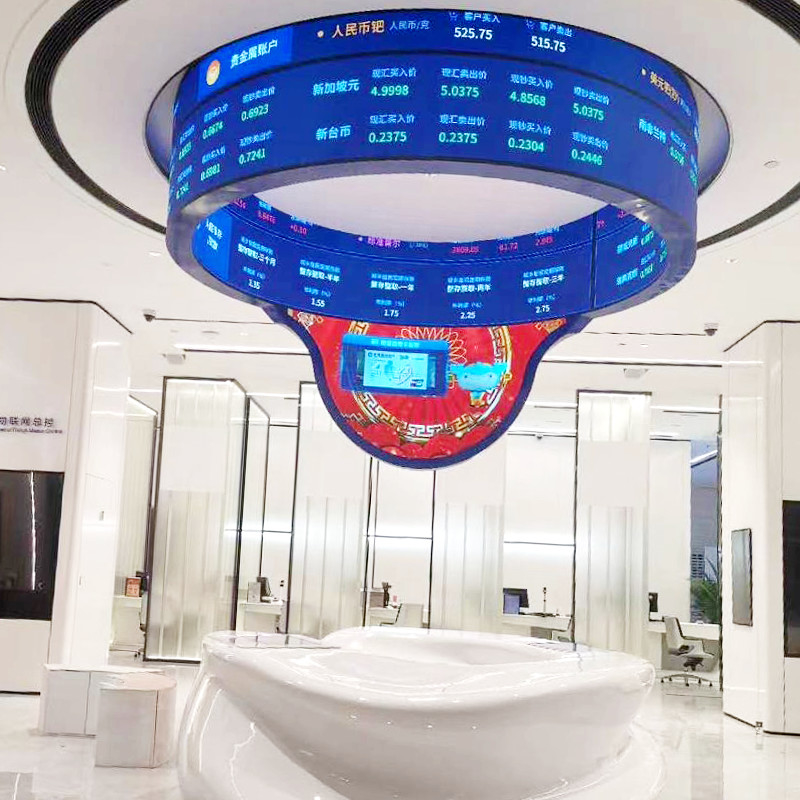

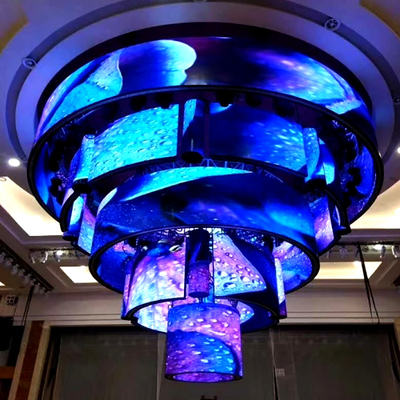

2. Good ductility and can be arbitrarily shaped. Among them, the cylindrical screen has high brushing performance, which can be hoisted, installed, hung, etc., to meet the requirements of live sound to the greatest extent. Using advanced digital video processing, technology distributed scanning, 360-degree high-definition display, modular design, constant current static drive, high-brightness true color output, the picture is clear and free from jitter; it can also realize multi-picture soft module, through the connection of the main control The computer has three large ring-shaped LED display screens on the appearance of the cylinder, which can play pictures synchronously. No matter you stand at any angle of the display, you can enjoy three identical and lifelike pictures.
Typical life :50,000 hours
Protection class: IP20
ange of working temperature: -20℃ to 50℃
Operating humidity range :10 %- 80% RH non-condensing
Storage temperature range :-20 ℃ to 60 ℃
Module size: 320*160mm 256*128mm 240*120mm 200*150mm
Module size: 320*160mm:
PITCH: P1.86mm P2mm P2.5mm P3.07mm
Module size: 200*150 mm:
PITCH: P1.5625mm P1.875mm P1.579mm P2.5mm P3mm
Module size: 256*128mm:
PITCH: P2mm P4mm
| project | parameter | Remark | |
|
BASIC PARAMETER |
pixel pitch | 3 mm | |
| pixel structure | 1R1G1B | ||
| pixel density | 111111 /m 2 | ||
| Module resolution | 80 (W)* 40 (H) | ||
| Module size | 240mm * 120mm _ | ||
|
OPTIC PARAMETER |
Single point luminance, chromaticity correction | have | |
| white balance brightness | ≥700 cd/㎡ | ||
| color temperature | 3200K—9300K adjustable | ||
| Horizontal viewing angle | ≥ 140° | ||
| vertical viewing angle | ≥ 120° | ||
| Visible distance | ≥3 meters | ||
| Brightness uniformity | ≥97% | ||
| Contrast | ≥3000:1 | ||
|
PROCCESSING PERFORMANCE |
Signal processing bits | 16 bits*3 | |
| grayscale | 65536 | ||
| control distance | Network cable: 100 meters, Optical fiber: 10 kilometers | ||
| drive mode | High gray-scale constant current source driver IC | ||
| frame rate | ≥ 60HZ | ||
| refresh rate | ≥ 1920 Hz _ | ||
| way to control | Synchronize | ||
| Brightness adjustment range | 0 to 100 stepless adjustment | ||
|
OPERATION PERFORMANCE |
Continuous working time | ≥72 hours | |
| Typical life | 50,000 hours | ||
| Protection class | IP20 | ||
| range of working temperature | -20℃ to 50℃ | ||
| Operating humidity range | 10 %- 80% RH non-condensing | ||
| Storage temperature range | -20 ℃ to 60 ℃ | ||
|
ELECTRIC PARAMETER |
Operating Voltage | DC 4.2-5V | |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | ||
| Maximum power consumption | 650W/ ㎡ | ||
| Average power consumption | 260W/ ㎡ | ||
