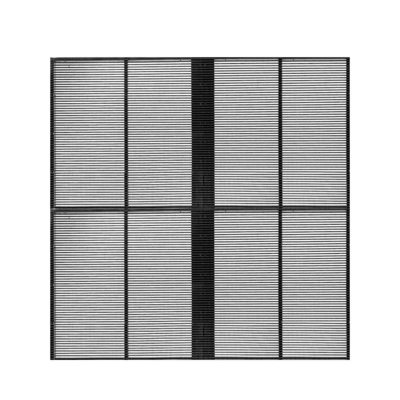

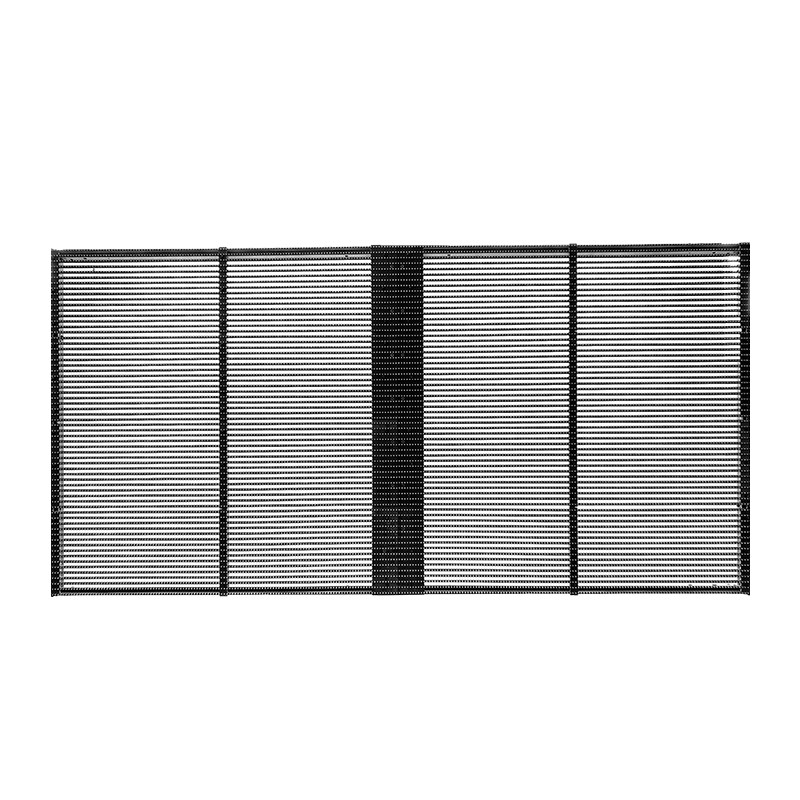

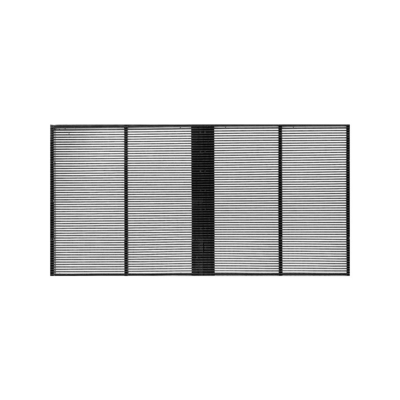

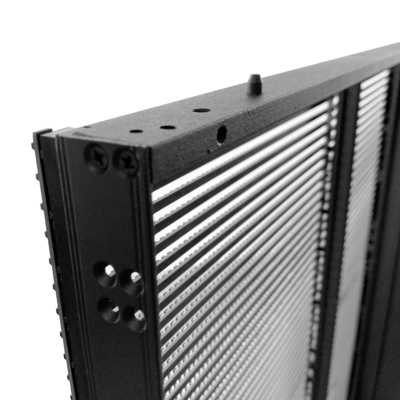

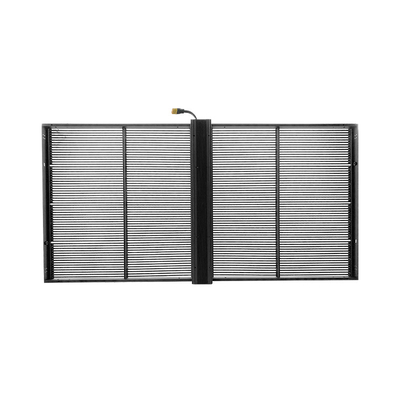

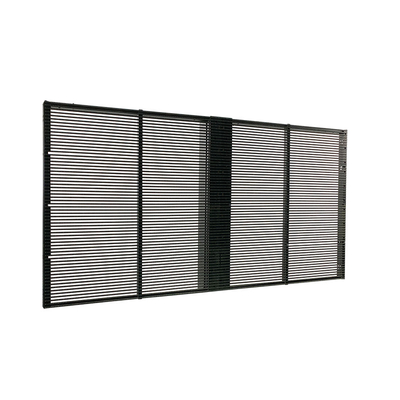

Durable Cabinet Transparent Glass LED Screen For Building Advertising
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC/ETL |
| Model Number: | P3.8-7.9mm |
|
Detail Information |
|||
| Pitch: | 3.8-7.9mm | Material: | Polymethyl Methacrylate + Super Composite Material |
|---|---|---|---|
| Permeability: | 65%-75% | Application: | Hotel Theater, Commercial Shopping Center, Etc |
| Characteristic: | Durable Use Cabinet | Brightness: | 3000-4000cd |
| Refresh Rate:: | 3840HZ | Cabinet Size:: | 1000*1000mm |
| High Light: | P3.8mm Transparent Glass LED Screen,P7.8mm Transparent Glass LED Screen,P3.8mm Transparent LED Display |
||
Product Description
Durable Cabinet Transparent Glass LED Screen For Building Advertising
source manufacturer 3000-4000cd P3.8-7.8mm building advertising transparent led display
TRANSPARENT LED DISPLAY PARAMETER:

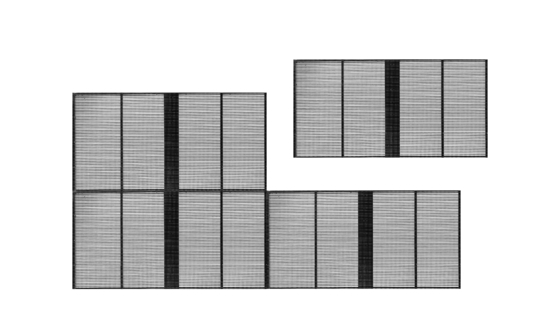

1, LED transparent display has the characteristics of light, thin and transparent. ; Modular design of product structure, box size is easy to splice into various sizes. Used in stage, auto show, concert, convention center, hotel theater, commercial shopping center, etc
2, adapt to various types of buildings, do not damage the building facade and structure, easy installation, support installation and maintenance
3, 60%-75% permeability, does not affect indoor ventilation and lighting, while ensuring clear images
4, transparent LED display, simple and fashionable design and innovative technical elements. Improve the advertising effect, highlight their own brand
Box size: 1000*500mm, 1000*500mm
Module spacing: P3.9-7.8
| ITEM | PARAMETER | REMARK | |
|
BASIC PARAMETER |
Pixel spacing | 3.9mm*7.8mm | |
| Pixel structure | 1R1G1B | ||
| Pixel density | 32873/m2 | ||
| Module Resolution | 128X16 | ||
| Box size | 1000X500X80mm | ||
|
OPTIC PARMETER |
Single point brightness and chromaticity correction | have | |
| White balance brightness | ≥500-4500cd/㎡ | ||
| Color temperature | 3200K—9300K adjustable | ||
| Horizontal Angle of view | ≥140° | ||
| The vertical Angle of view | ≥120° | ||
| Visual range | ≥5m | ||
| Luminance uniformity | ≥97% | ||
| contrast | ≥3000:1 | ||
|
PROCCESSING PERFORMACE |
Signal processing digit | 16bit*3 | |
| Grey scale | 65536 | ||
| Control distance | cable:100米, optic fiber:10km | ||
| Drive way | High grey level constant current drive IC | ||
| In the frame frequency | ≥60HZ | ||
| The refresh rate | ≥1920HZ | ||
| The control mode | synchronous | ||
| Brightness range | 0-100 free adjust | ||
|
OPERATION PERFORMACE |
Continuous working time | ≥72 hours | |
| Lifetime typical value | 50,000 hours | ||
| Protection grade | IP20 | ||
| Operating temperature range | -20 ℃ - 50 ℃ | ||
| Operating humidity range | 10 %- 80% RH | ||
| Storage temperature range | -20 ℃ 至 60 ℃ | ||
| ELECTRIC PARAMETER | Working voltage | DC 4.2-5V | |
| The power supply requirements | AC:220×(1±10%)V,50×(1±5%)Hz | ||
| The power consumption of the largest | 800 W/㎡ | ||
| The average power consumption | 260 W/㎡ | ||
