Aluminum Shell P1.5625mm LED Display Modules Thickness 10mm
Product Details:
| Place of Origin: | CHIAN |
| Brand Name: | CRTOP |
| Certification: | CE/FCC/ETL |
| Model Number: | p1.5625mm |
|
Detail Information |
|||
| Pitch: | P1.5625mm | Material: | Aluminum Shell Led Module |
|---|---|---|---|
| Thickness: | 10mm | Characteristic: | Easy To Install And Uninstall |
| High Light: | P1.5625mm LED Display Modules,Thickness 10mm LED Display Modules,P1.5625mm LED Display Panel |
||
Product Description
Aluminum Shell P1.5625mm LED Display Modules Thickness 10mm
New Product Source Manufacturer Aluminum Shell Led Module Led Display Led Screen Led Panel With Applicaiton Of Big TV

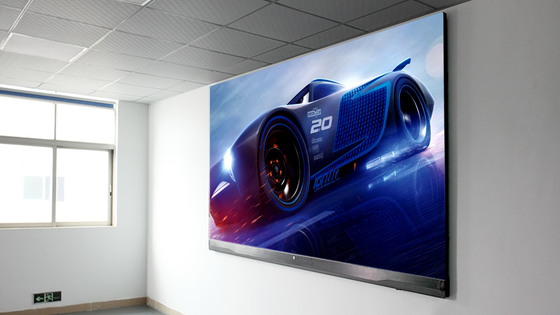

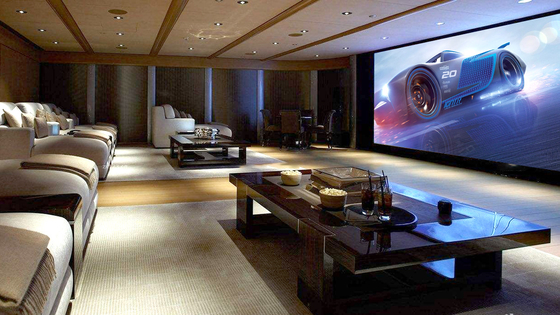

This MODULE is mainly used for large HD TV:
Module size: 300*168.75
Adaptation spacing: P1.5625 P1.875 P2.34
BOX: customize(Normal size:108:135"162"216")
Production strength

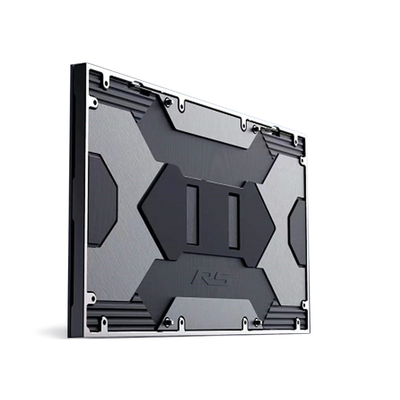

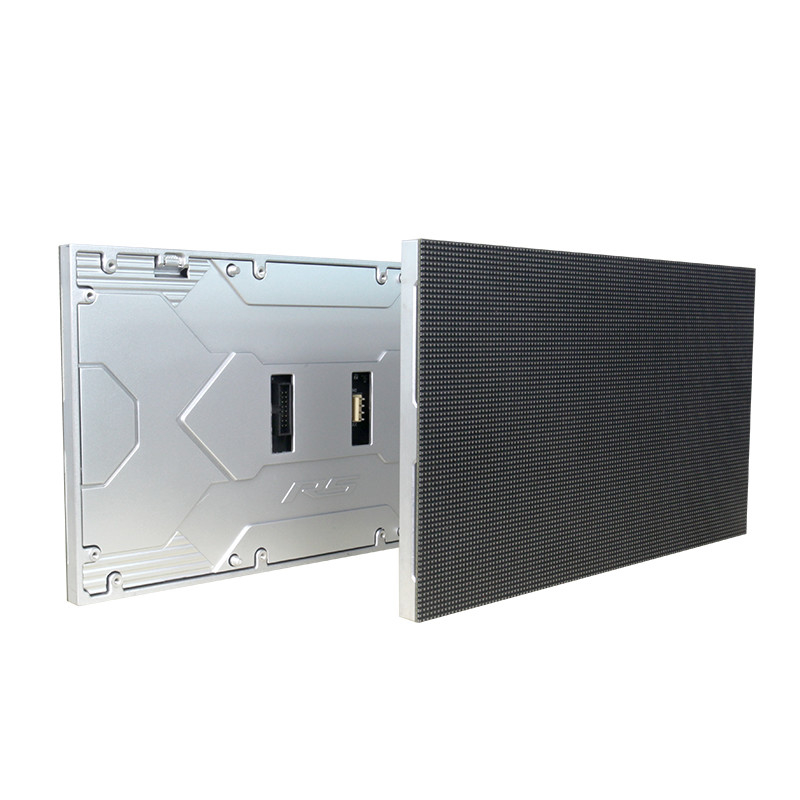

1, the thickness of the bottom shell is 10mm, the classic black appearance, thin and elegant

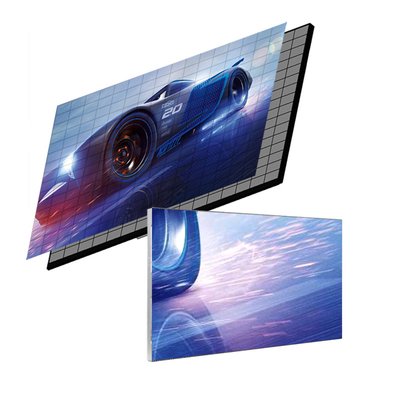

2. Keep the minimum error to ensure the perfect connection of the splicing, so that the screen is more flat than the conventional bottom case, and it is easier to install and splicing
Made of aluminum material, the structure is firm and not easy to deform, and the good thermal conductivity makes the module easier to dissipate heat, and the module is more stable under high and low temperature changes.

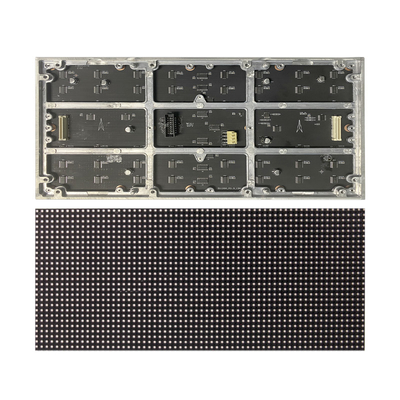

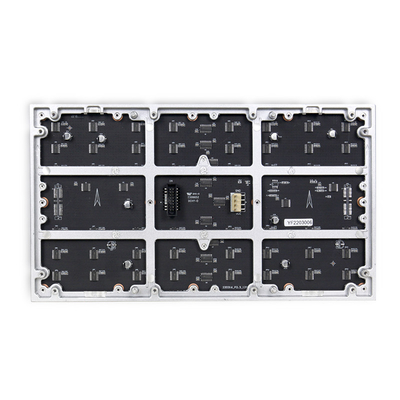

3. The aluminum bottom shells in the world generally use 3M glue to install the PCB. The Chengtong aluminum bottom shell can not only be installed by sticking, but also can be installed by back-locking screws, which can make the PCB fit the aluminum bottom perfectly. Guaranteed flatness and accuracy.
4. The back cover of the aluminum bottom case adopts a snap-type installation, which makes the installation and disassembly easier on the premise of ensuring the accuracy of installation and maintenance.
While the aluminum bottom case is installed by magnetic suction, the HUB75 interface and the conventional power supply white socket are used to make up for the gap that the 16:9 series can only use hard connections and can use soft connections.
5. The large TV is designed with a wiring slot, which makes the wiring simple and orderly, which is in sharp contrast with the clutter of the conventional module magnetic suction Android.
6. In order to better install and connect the large TV, independently design the open-mould angle connector, the structural profile and the outer frame, which can better ensure the installation quality and shape accuracy.
Parameter:
| project | parameter | Remark | |
|
Basic parameter |
pixel pitch | 1.5625mm _ | |
| pixel structure | 1R1G1B | ||
| pixel density | 409600 /m 2 | ||
| Module resolution | 192 (W)* 108 (H) | ||
| Module size | 300mm * 168.75mm * 12.6mm | ||
|
Optic parameter |
Single point luminance, chromaticity correction | have | |
| white balance brightness | ≥600 cd/㎡ | ||
| color temperature | 3200K—9300K adjustable | ||
| Horizontal viewing angle | ≥ 140° | ||
| vertical viewing angle | ≥ 120° | ||
| Visible distance | ≥3 meters | ||
| Brightness uniformity | ≥97% | ||
| Contrast | ≥3000:1 | ||
|
Operation characteristic |
Signal processing bits | 16 bits*3 | |
| grayscale | 65536 | ||
| control distance | Network cable: 100 meters, Optical fiber: 10 kilometers | ||
| drive mode | High gray-scale constant current source driver IC | ||
| frame rate | ≥ 60HZ | ||
| refresh rate | ≥ 384 0 Hz | ||
| way to control | Synchronize | ||
| Brightness adjustment range | 0 to 100 stepless adjustment | ||
|
Processing performance |
Continuous working time | ≥72 hours | |
| Typical life | 50,000 hours | ||
| Protection class | IP20 | ||
| range of working temperature | -20℃ to 50℃ | ||
| Operating humidity range | 10 %- 80% RH non-condensing | ||
| Storage temperature range | -20 ℃ to 60 ℃ | ||
|
Electricity parameter |
Operating Voltage | DC: 4.2-5V | |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | ||
| Maximum power consumption | 680W / ㎡ _ | ||
| Average power consumption | 270W / ㎡ _ | ||
