Custom P2.34mm LED Screen Modules Energy Saving Aluminum Module
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC/ETL |
| Model Number: | P2.34mm |
|
Detail Information |
|||
| Pixel Pitch: | 2.34mm | Module Resolution: | 128 (W)* 72 (H) |
|---|---|---|---|
| Module Size: | 300mm * 168.75mm * 12.6mm | Single Point Luminance, Chromaticity Correction: | Have |
| Color Temperature: | 3200K—9300K Adjustable | Horizontal Viewing Angle: | ≥ 140° |
| Visible Distance: | ≥3 Meters | Contrast: | ≥3000:1 |
| High Light: | P2.34mm LED Screen Modules,3200K LED Screen Modules,P2.34mm Full Color Led Display Screen |
||
Product Description

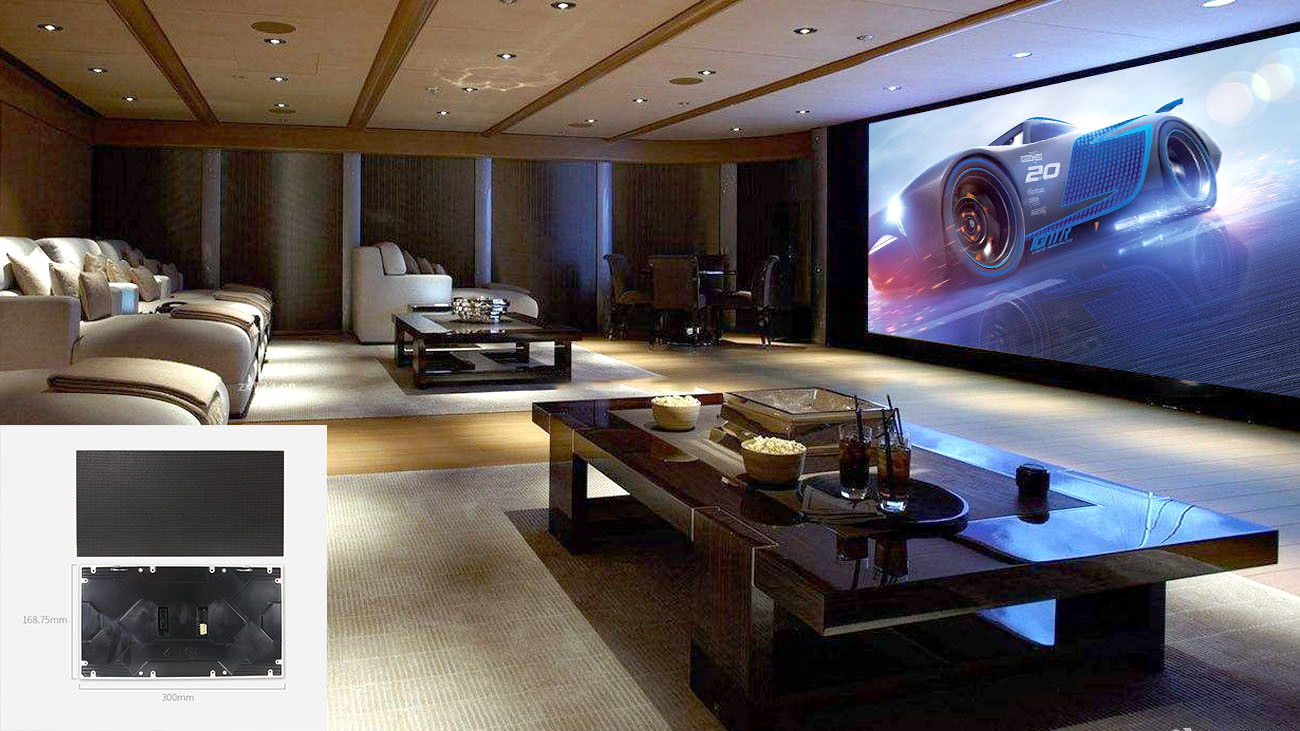

Custom P2.34mm LED Screen Modules Energy Saving Aluminum Module
Energy saving P2.34mm Aluminum module indoor LED display screen
1.The back cover of the aluminum bottom case adopts a snap-type installation, which makes the installation and disassembly easier on the premise of ensuring the accuracy of installation and maintenance.
While the aluminum bottom case is installed by magnetic suction, the HUB75 interface and the conventional power supply white socket are used to make up for the gap that the 16:9 series can only use hard connections and can use soft connections.
2.The aluminum bottom shells in the world generally use 3M glue to install the PCB. The Chengtong aluminum bottom shell can not only be installed by sticking, but also can be installed by back-locking screws, which can make the PCB fit the aluminum bottom perfectly. Guaranteed flatness and accuracy.
3.The large TV is designed with a wiring slot, which makes the wiring simple and orderly, which is in sharp contrast with the clutter of the conventional module magnetic suction Android.
vertical viewing angle: ≥ 120°
Visible distance: ≥3 meters
Brightness uniformity :≥97%
frame rate: ≥ 60HZ
refresh rate :≥ 384 0 Hz
| project | parameter | Remark | |
|
Basic parameter
|
pixel pitch | 2.34mm _ | |
| pixel structure | 1R1G1B | ||
| pixel density | 182044 / m2 | ||
| Module resolution | 128 (W)* 72 (H) | ||
| Module size | 300mm * 168.75mm * 12.6mm | ||
|
Optic parameter
|
Single point luminance, chromaticity correction | have | |
| white balance brightness | ≥600 cd/㎡ | ||
| color temperature | 3200K—9300K adjustable | ||
| Horizontal viewing angle | ≥ 140° | ||
| vertical viewing angle | ≥ 120° | ||
| Visible distance | ≥3 meters | ||
| Brightness uniformity | ≥97% | ||
| Contrast | ≥3000:1 | ||
|
Operation characteristic
|
Signal processing bits | 16 bits*3 | |
| grayscale | 65536 | ||
| control distance | Network cable: 100 meters, Optical fiber: 10 kilometers | ||
| drive mode | High gray-scale constant current source driver IC | ||
| frame rate | ≥ 60HZ | ||
| refresh rate | ≥ 384 0 Hz | ||
| way to control | Synchronize | ||
| Brightness adjustment range | 0 to 100 stepless adjustment | ||
|
Processing performance
|
Continuous working time | ≥72 hours | |
| Typical life | 50,000 hours | ||
| Protection class | IP20 | ||
| range of working temperature | -20℃ to 50℃ | ||
| Operating humidity range | 10 %- 80% RH non-condensing | ||
| Storage temperature range | -20 ℃ to 60 ℃ | ||
|
Electricity parameter |
Operating Voltage | DC: 4.2-5V | |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | ||
| Maximum power consumption | 680W / ㎡ _ | ||
| Average power consumption | 270W / ㎡ _ | ||
