P2.97mm Indoor Rental LED Screen Vedio Panel Prive Aluminum Die Cast Box
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC |
| Model Number: | P2.97mm |
|
Detail Information |
|||
| PITCH: | 2.97mm | Module Size: | 250*250mm |
|---|---|---|---|
| Box Size: | 500*500mm | Brightness: | ≥1000cd |
| Refresh: | 3840Hz | View Angle: | ≥140º |
| View Distance: | 5m | Characteristic: | Great Sense Of Space And Visual Tension In The State |
| High Light: | 1R1G1B Indoor Rental LED Screen,Indoor Rental LED Screen IP20,P2.97mm Rental Indoor LED Screen |
||
Product Description
P2.97mm Indoor Rental LED Screen Vedio Panel Prive Aluminum Die Cast Box
source manufacturer prive aluminum die cast box P2.97mm indoor rental led vedio panel
Rental led display,led wall parameter:

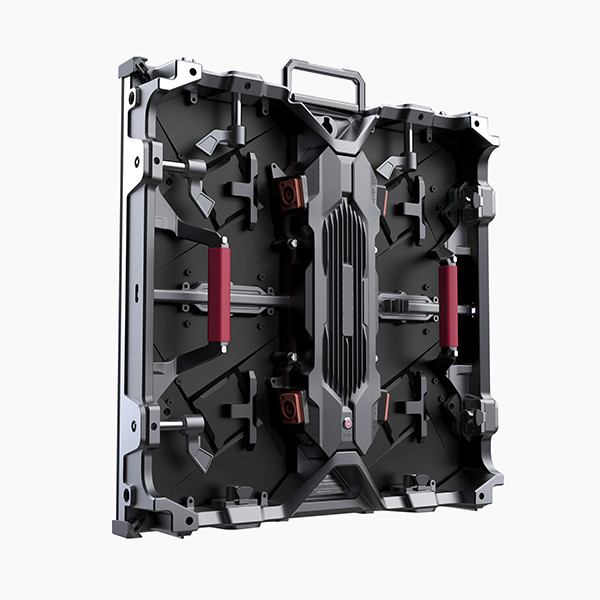

- The overall use of frame-type visual design, the combination of the scattered and orderly appearance of the box, the hidden upper handle and the integrated power box , not only improves the operating experience, but also forms a more differentiated brand symbol characteristics. It has a great sense of space and visual tension in the state, giving people the product characteristics of firmness, stability and strong operability
- The bump design of the mask enhances the crash resistance of the surface of the module; the glue filling process of the lamp feet enhances the thrust; the maintenance cost of the lamp is reduced; the super edge guard LED lamp protection structure , automatic expansion, is especially suitable for multiple disassembly and assembly, safe and convenient; The bottom of the box is specially designed to avoid bumping the lamp surface when the product is transported;
- Arc, corner and various creative shapes can be realized through positioning posts and multi-functional lock connectors ; the standard box can achieve 5° inner arc without adding custom locks or box assembly parts , providing a variety of possibilities for on- site design
| project | parameter | Remark | |
|
BASIC PARAMETER |
pixel pitch | 2.97mm _ | |
| pixel structure | 1R1G1B | ||
| pixel density | 113367 /m 2 | ||
| Module resolution | 8 4 (W) * 8 4 (H) | ||
| Module size | 250mm*250mm | ||
| Box size | 500mm*500mm | die casting | |
|
OPTIC PARAMETER |
Single point luminance, chromaticity correction | have | |
| white balance brightness | ≥ 1000cd/㎡ | ||
| color temperature | 2000K—12500K adjustable | ||
| Horizontal viewing angle | ≥ 140° | ||
| vertical viewing angle | ≥ 120° | ||
| Visible distance | ≥9m | ||
| Brightness uniformity | ≥97% | ||
| Contrast | ≥3000:1 | ||
|
Proccessing performace |
Signal processing bits | 16 bits*3 | |
| grayscale | 12-14Bit | ||
| control distance | Gigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers | ||
| drive mode | High gray-scale constant current source driver IC | ||
| frame rate | ≥ 60HZ | ||
| refresh rate | ≥1920-3840 Hz | ||
| way to control | Synchronize | ||
| Brightness adjustment range | 0 to 100 stepless adjustment | ||
|
Operation parameter |
Continuous working time | ≥72 hours | |
| Typical life | 50,000 hours | ||
| Protection class | IP20 | ||
| range of working temperature | -20℃ to 50℃ | ||
| Operating humidity range | 10 %- 80% RH non-condensing | ||
| Storage temperature range | -20 ℃ to 60 ℃ | ||
|
Electric parameter |
Operating Voltage | DC 5V | |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | ||
| Maximum power consumption | 70 0W/ ㎡ | ||
| Average power consumption | 260W/ ㎡ | ||
Features:
1. Full color by filling the whole of imported silica gel, which makes our products in water, antifreeze, superior high-temperature side
2. After a dustproof and waterproof tested to reach its target IP65
3. All modules are cross color enhancing, and the edge compression is strong, not deformation, the flatness of display cabinet will be better.
4. The box with a sliding iron top, bottom chute, and optional locking device to fine-tune the gap and ensure seamless between the boxes. Please do not squeeze the entire screen which ensure good surface smoothness
5. Measured by the Shenzhen Institute of Quality Inspection Bureau U.S. core companies of the outdoor full color display for temperature impact test, the results showed that: outdoor full color display can use the power normally under the temperature at -25 °C to +75 °C
6. Widely used in advertising, sports, industrial enterprises, transportation, stations, terminals, airports, construction, education system and other public places
Advantage:
----- Professional LED screens& LED Displays Manufacturer;
----- Highly resolution, good image effect, easy to install and convenient to carry;
----- Resonable price, good uniformity, stable capability and high brightness;
----- Aluminum alloy material both for fixed installation and hanging rental;
