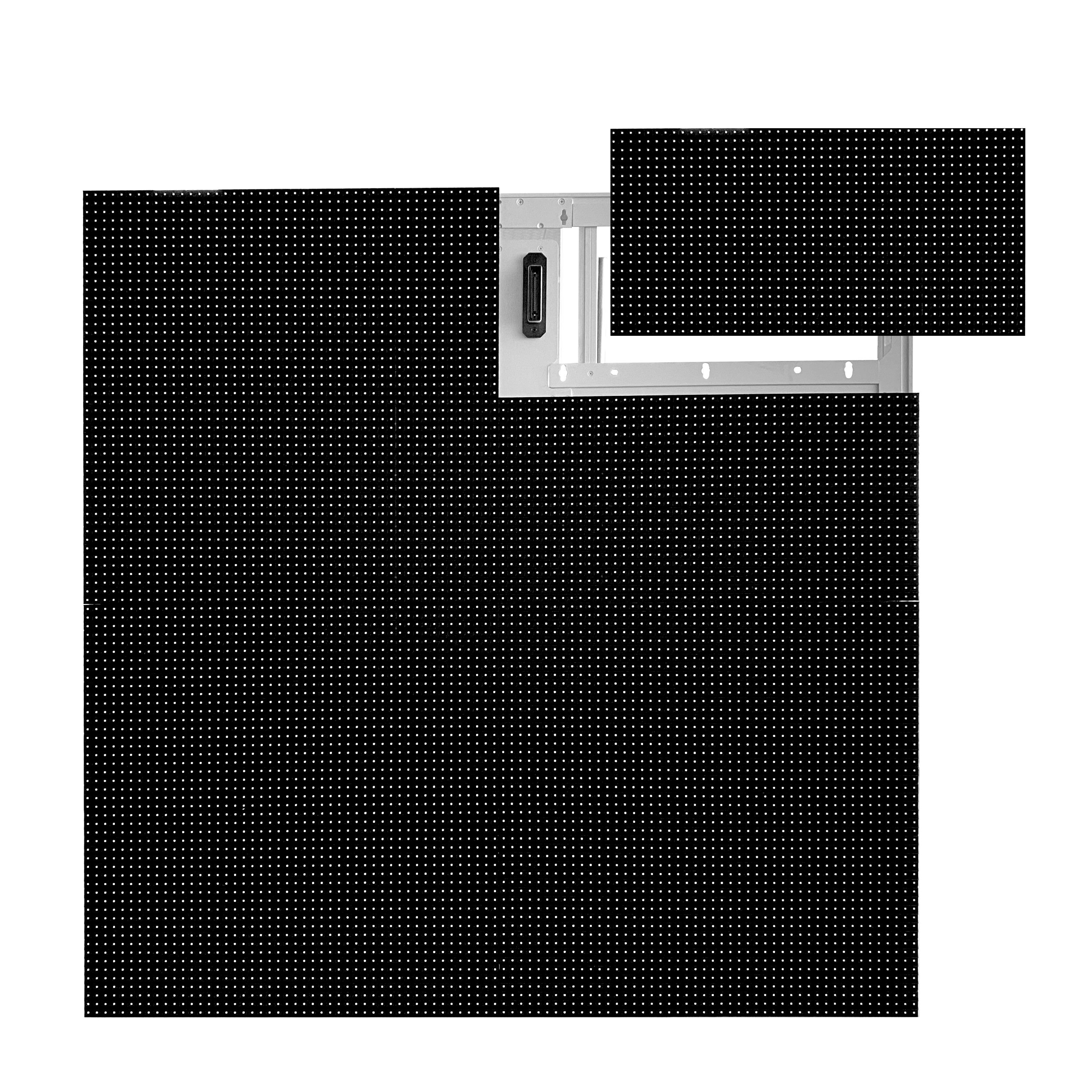

Outdoor Fixed LED Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC/ETL |
| Model Number: | P3.9/P6.25/P7.8/P10.4 |
|
Detail Information |
|||
| Pixel Pitch: | P3.9/P6.25/P7.8/P10.4 | Refresh Rate: | High Refresh |
|---|---|---|---|
| Protection Class: | Front IP65, Back IP43 | White Balance Brightness: | ≥ 5000cd/m2 |
| Grayscale: | 16Bit | Contrast: | ≥5000:1 |
| Color Temperature: | 3200K—9300K Adjustable | ||
| High Light: | ODM Outdoor LED Advertising Screen,FCC Outdoor LED Advertising Screen,5000cd/m2 Advertising Outdoor LED Screen |
||
Product Description
High Definition Outdoor LED Advertising Screen For Shopping Center
1. Using high-grade chip packaged LED lights, low gray and high brightness, fully guarantees the service life and display quality of the display screen.
2. Screen image resolution and high definition, high refresh rate to ensure a clear screen picture does not flicker.
3. The image color is soft and lifelike, the gray scale is rich, the level sense and the three-dimensional sense are strong.
| project | parameter | Remark | |
|
BASIC PARAMETER |
pixel pitch | P3.9/P6.25/P7.8/P10.4 | |
| pixel structure | 1R1G1B | ||
| Module size | 250mm*500mm | ||
| Box size | 1000mmX1000mm | ||
|
OPTIC PARAMETER |
Single point luminance, chromaticity correction | have | |
| white balance brightness | ≥5000cd/㎡ | ||
| color temperature | 2000K—12500K adjustable | ||
| Horizontal viewing angle | ≥ 160° | ||
| vertical viewing angle | ≥ 140° | ||
| Visible distance | ≥4 meters | ||
| Brightness uniformity | ≥97% | ||
| Contrast | ≥5000:1 | ||
|
Proccessing performace |
Signal processing bits | 16 bits*3 | |
| grayscale | 12-14Bit | ||
| control distance | Gigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers | ||
| drive mode | High gray-scale constant current source driver IC | ||
| frame rate | ≥ 60HZ | ||
| refresh rate | 1920 -3840Hz | ||
| way to control | Synchronize | ||
| Brightness adjustment range | 0 to 100 stepless adjustment | ||
|
Operation parameter |
Continuous working time | ≥72 hours | |
| Typical life | 50,000 hours | ||
| Protection class | IP 65 | ||
| range of working temperature | -20℃ to 50℃ | ||
| Operating humidity range | 10 %- 80% RH non-condensing | ||
| Storage temperature range | -20 ℃ to 60 ℃ | ||
|
Electric parameter |
Operating Voltage | DC 5V | |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | ||
| Maximum power consumption | 850W/ ㎡ | ||
| Average power consumption | 260W/ ㎡ | ||
Features:
1. color spots or picture shade will be removed through the adjustment of brightness and color by each independent pixel
2. adopted with self developed steel structure and special kits will be kept in good flatness and smoothness
3. strict water proof testing by Ip65
4. according to environmental changes the brightness can be adjusted automatically for energy saving
5. special PVC kits are adopted to protect from corrosion according to coastal weather
Our Service:
1) Your inquiry related to our products or price will be replied in 24hrs
2) OEM&ODM,any your customized lightings we can help you to design and put into product
3) Distributoership are offered for your unique design and some our current models
Our Services
1. 27 Years professional led display manufacturer,
2. Shot delivery time: 5-15days.
3. Factory price.
4. OEM and ODM service
5. We can design special product for you.
6. 30% deposit for producing,70% balance to be paid before shipment.
7. EXW, FOB, CIF C&F, FCA, DDU, colorful trade term.
1. After-sales service:
1) Service principles: response in time, solve problems as soon as possible and ensure the use.
2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
4) Under normal use and storage, Our Company will be responsible for the equipment.
2. Pre-sales service:
1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions.
2) Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
| Q: What is the brightness, viewing angle and wavelength of the LED? |
|
A: Luminous Intensity is equal to the amount of luminous flux emitted into a very small solid angle at a defined angular orientation from the light source. The measurement for luminous intensity is the candela. Symbol is Iv. Viewing Angle is the total cone angle in degrees encompassing the central, high luminous intensity portion of the LED beam from the on-axis peak to the off-axis point where the LED intensity is 50% of the on-axis intensity. This off-axis point is known as theta one-half ( 1/2). Two times 1/2 is the LEDs' full viewing angle; however, light is visible beyond the1/2 point. Wavelength is the distance between two points of corresponding phase and is equal to waveform velocity divided by frequency. It defines what color human eyes could recognize |
| Q: What is dominant wavelength? Please specify the ranges of wavelength in red, green and blue color respectively. |
| A: Dominant wavelength is defined as the best range of wavelength showing the most natural color recognized by human eyes. Researches indicate that fixed colors with wavelength of 620-630nm (red), 520-530nm (green) and 460-470nm (blue), in fact mixed in a particular proportion, can get the pure white. That is, in display field, people use luminous materials with above wavelength to make "compounded" white more natural.In order to get a good balance white led display, we specify the led colors with wavelength within 4nm for each color |
| Q: Which chip vendors are you buying from? |
| A: It depends on the Customer's requirement. We can purchase from Japan, Korea, Europe, USA. We are using chips mainly from Taiwan |
| Q: What is the chip size you're using for outdoor display? How about indoor display? |
| A: For outdoor display, we're using 12mil chip for red, 14mil for both green and blue. Regarding indoor display, 9mil for red, 12mil for green and blue are currently adopted |
| Q: How much will the brightness of LED drop down after 1000hrs? |
| A: Based on the result of aging test, the brightness decay of green LED is around 5%-8%, while blue is around 10%-14% and red is around 5%-8% |
