Waterproof Advertising Outdoor LED Screen Environmental Protection
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC/ETL |
| Model Number: | P10mm |
|
Detail Information |
|||
| Pixel Pitch: | 10mm | Module Resolution: | 32(W)X16(H) |
|---|---|---|---|
| Module Size: | 320mmX160mm | Refresh Rate: | Normal Refresh |
| Contrast: | ≥3000:1 | Grayscale: | 16Bit |
| Color Temperature: | 3200K—9300K Adjustable | Horizontal Viewing Angle: | ≥ 120° |
| Vertical Viewing Angle: | ≥ 120° | Light: | Nation Star Copper Wire |
| High Light: | ETL Advertising Outdoor LED Screen,10mm Advertising Outdoor LED Screen,7200cd/m2 Outdoor LED Advertising Screen |
||
Product Description
Waterproof Outdoor LED Advertising Screen Environmental Protection
Description of Rental LED Screen
Rental LED Screen pixel include 4mm, 5mm, 6.67mm, 8mm, 10mm, 16mm, within these pixels, 4mm, 5mm, 6.67mm are the most hot-selling and highest cost-effective series. You can use it on car for advertising or fixed in some place as billboard or on building.
P10 Energy conservation and environmental protection Outdoor Led Wall
1. The main light-emitting device of outdoor LED display is LED lamp bead, which is made of non-toxic material. Unlike fluorescent lamp, aquiferous silver will cause pollution, and LED can also be recycled.
2. Energy saving and environmental protection, all-weather work
3. The system has the advantages of stable and reliable operation, strong anti-interference ability and long screen life.
| project | parameter | Remark | |
|
BASIC PARAMETER |
pixel pitch | 10mm | |
| pixel structure | 1R1G1B | ||
| pixel density | 10000/m 2 | ||
| Module resolution | 32(W)X16(H) | ||
| Module size | 320mmX160mm | ||

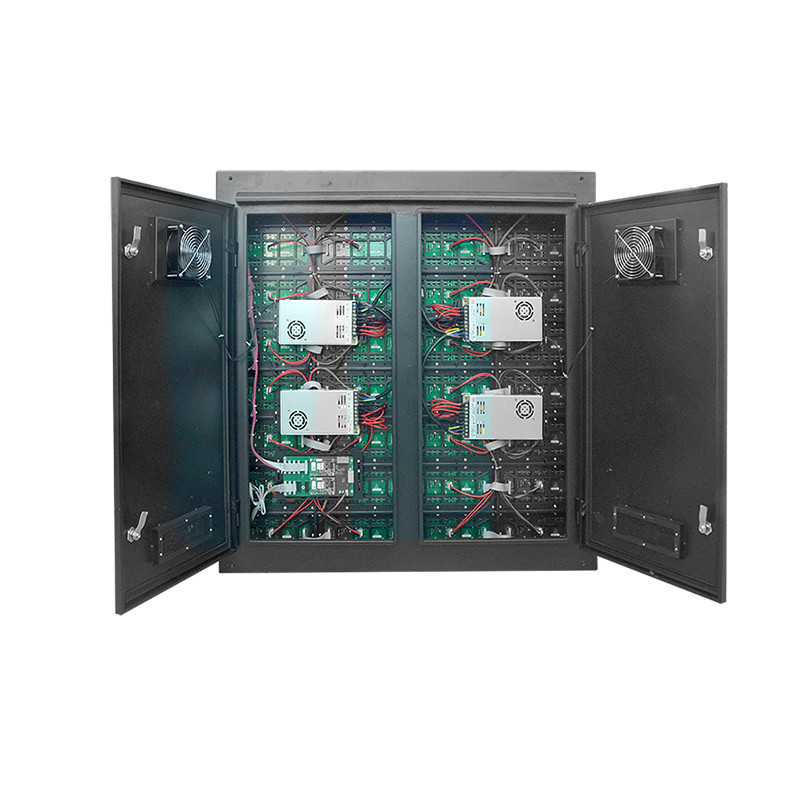

| Box size | 960mm*960mm | ||
|
OPTIC PARAMETER |
Single point luminance, chromaticity correction | have | |
| white balance brightness | ≥ 7200cd/㎡(static)/ ≥ 6000cd/㎡(2S) | ||
| color temperature | 3200K—9300K adjustable | ||
| Horizontal viewing angle | ≥ 120° | ||
| vertical viewing angle | ≥ 120° | ||
| Visible distance | ≥20m | ||
| Brightness uniformity | ≥97% | ||
| Contrast | ≥3000:1 | ||
|
Proccessing Performance |
Signal processing bits | 16 bits*3 | |
| grayscale | 16Bit | ||
| control distance | Gigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers | ||
| drive mode | High gray-scale constant current source driver IC | ||
| frame rate | ≥ 60HZ | ||
| refresh rate | ≥ 1920 Hz _ | ||
| way to control | Synchronize | ||
| Brightness adjustment range | 0 to 100 stepless adjustment | ||
|
Operation performance |
Continuous working time | ≥72 hours | |
| Typical life | 50,000 hours | ||
| Protection class | Front IP65, back IP43 | ||
| range of working temperature | -20℃ to 50℃ | ||
| Operating humidity range | 10 %- 80% RH non-condensing | ||
| Storage temperature range | -20 ℃ to 60 ℃ | ||
|
Electric parameter |
Operating Voltage | DC 5V | |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | ||
| Maximum power consumption | 900W/ ㎡ (static)/ 1000W/ ㎡ (2S) | ||
| Average power consumption | 400W/ ㎡ (static)/ 450W/ ㎡ (2S) | ||
Feature Of Indoor Rental LED Screen
- High IP Rating IP65, good waterproof and dust resistance, suitable for every condition.
- Wide viewing angle 160° for broader reach, seamless in all direction with same image quality output, suitable for large gatherings.
- High brightness from 6,000nits to 9,000nits, visible from every direction even face to direct sunshine.
- High-precision and ultra-practical design, 500x500/1000mm cabinet, light and easy to assemble
- Customized arc-side locks design, the angle can be adjusted to achieve arc, round and S-shaped splicing.
- High-contrast outdoor pure black light, non-destructive refresh and grayscale. Achieve ultra-high contrast 8000:1, low brightness 1000~3000cd adjustable, protect the human eye, meet indoor and outdoor application scenarios
Our Service:
Technology Training:
1. We provide the technology training for free, which contains the operation training and maintenance training in the factory.
2. We will send our engineers to your country by negotiation.
Documents and Certification:
1. We provide the operation manual, software, test report and so on.
2. We can also provide all kinds of certification such as CE, UL and so on.
CAD Drawing and Fixing:
1. We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
2. We will send our engineers to your place if we are expected after our negotiation.
Additional service:
We provide you the forwarding information, and some other information ,such as flight box, structure information for your reference for free.
