P2.97mm Display Wall Indoor Rental LED Screen 120 Degree View angle
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC/CCC |
| Model Number: | P2.97mm |
|
Detail Information |
|||
| PITCH: | 2.97mm | Module Size: | 250*250mm |
|---|---|---|---|
| Box Size: | 500*500mm | Brightness: | ≥1000cd |
| Power Supply: | 100-240V | View Angle: | ≥140º |
| High Light: | 1000cd Indoor Rental LED Screen,FCC Indoor Rental LED Screen,P2.97mm Indoor Rental LED Display |
||
Product Description

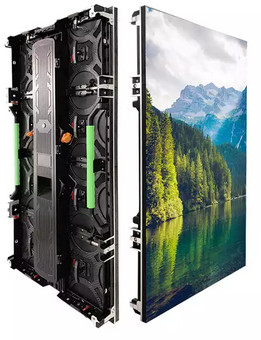

P2.97mm Indoor Rental LED Screen Display Wall 120 Degree View Angle
Rental led display,led wall parameter:
- The overall use of frame-type visual design, the combination of the scattered and orderly appearance of the box, the hidden upper handle and the integrated power box , not only improves the operating experience, but also forms a more differentiated brand symbol characteristics. It has a great sense of space and visual tension in the state, giving people the product characteristics of firmness, stability and strong operability
- Arc, corner and various creative shapes can be realized through positioning posts and multi-functional lock connectors ; the standard box can achieve 5° inner arc without adding custom locks or box assembly parts , providing a variety of possibilities for on- site design
- Both the hoisting lock and the left and right locks can be quickly connected and disassembled; there is no tool for one-person rear maintenance ; the power box is independently disassembled and maintained after Arcs, corners and various creative shapes can be realized
- Integrated design of control box, fast installation and maintenance, support hot swap
- Immersive design of the module, high flatness, and support for left and right exchange of the module, reducing customer stocking costs
PITICH:
indoor P2.604, P2.97, P3.91
Outdoor P2.97, P3.91, P4.81
Module size:250x250mm
Box size: 500*500mm
| project | parameter | Remark | |
|
BASIC PARAMETER |
pixel pitch | 2.97mm | |
| pixel structure | 1R1G1B | ||
| pixel density | 113367 /m 2 | ||
| Module resolution | 8 4 (W) * 8 4 (H) | ||
| Module size | 250mm*250mm | ||
| Box size | 500mm*500mm | die casting | |
|
OPTIC PARAMETER |
Single point luminance, chromaticity correction | have | |
| white balance brightness | ≥ 1000cd/㎡ | ||
| color temperature | 2000K—12500K adjustable | ||
| Horizontal viewing angle | ≥ 120° | ||
| vertical viewing angle | ≥ 120° | ||
| Visible distance | ≥9m | ||
| Brightness uniformity | ≥97% | ||
| Contrast | ≥3000:1 | ||
|
Proccessing performace |
Signal processing bits | 16 bits*3 | |
| grayscale | 12-14Bit | ||
| control distance | Gigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers | ||
| drive mode | High gray-scale constant current source driver IC | ||
| frame rate | ≥ 60HZ | ||
| refresh rate | 1920-3840 Hz | ||
| way to control | Synchronize | ||
| Brightness adjustment range | 0 to 100 stepless adjustment | ||
|
Operation parameter |
Continuous working time | ≥72 hours | |
| Typical life | 50,000 hours | ||
| Protection class | IP20 | ||
| range of working temperature | -20℃ to 50℃ | ||
| Operating humidity range | 10 %- 80% RH non-condensing | ||
| Storage temperature range | -20 ℃ to 60 ℃ | ||
|
Electric parameter |
Operating Voltage | DC 5V | |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | ||
| Maximum power consumption | 70 0W/ ㎡ | ||
| Average power consumption | 260W/ ㎡ | ||
Feature Of Indoor Rental LED Screen
a--- Front and Rear service modular design.
b--- Invisible curvable locks design and flat design for option.
c--- Auto-calibration design.
d--- Cabinet with corner protectors from unexpected impact.
