Waterpoorf P3mm Outdoor Advertising LED Display 16Bit Grayscale
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC |
| Model Number: | P3mm |
|
Detail Information |
|||
| Pixel Pitch: | 3mm | Light: | Nation Star |
|---|---|---|---|
| Refresh Rate: | High Refresh | Module Size: | 192mm * 192mm |
| Box Size: | 768mm*768mm | Visible Distance: | ≥8 Meters |
| Grayscale: | 16Bit | Drive Mode: | High Gray-scale Constant Current Source Driver IC |
| High Light: | P3mm Outdoor Advertising LED Display,16Bit Outdoor Advertising LED Display,16Bit Outdoor Advertising Led Screen |
||
Product Description
Waterpoorf P3mm Outdoor Advertising LED Display 16Bit Grayscale
Waterpoorf P3mm outdoor led display
1. Using high-grade chip packaged LED lights, low gray and high brightness, fully guarantees the service life and display quality of the display screen, and adopts a low-turnover voltage constant-current driver IC. The advantage of this driver chip is that it can reduce the voltage falling on the output terminals of the IC. Reduce the power consumption, improve the power loss of the IC, and then achieve the effect of energy saving. The AC fan with large exhaust air volume is adopted, and the components are reasonably arranged to improve the uniformity of heat dissipation. According to the principle that the Vf of the R lamp is low, the 3.8V and 2.8V power supplies are used to supply power separately, reducing the excess voltage drop by 30%. The system sets the automatic brightness adjustment function, which can automatically adjust the brightness of the screen according to the ambient brightness, dynamic energy saving
2. Standard 1920Hz refresh rate, the video picture is more delicate and smooth; 9000:1 high contrast ratio, improve the contrast between light and dark, enhance the picture details, restore the true color
3. a variety of module sizes , flexible collocation, more considerate upgrades , strict material selection

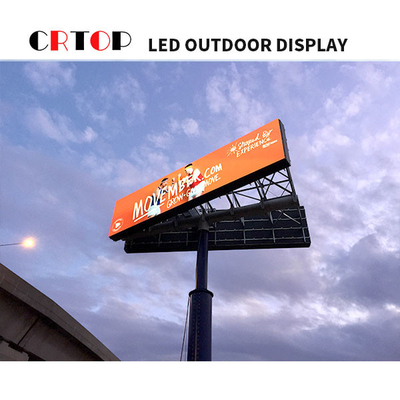

4. Diversely used in commercial real estate, shopping malls, large squares, outdoor advertising screens, traffic screens and other fields
Average power consumption: 350W/ ㎡
Typical life: 50,000 hours
Power Requirements: AC:220×(1±10%)V, 50×(1±5%)Hz
Protection class: Front IP65, back IP43
Operating Voltage: DC 5V
Maximum power consumption: 850W/ ㎡
Pitch:P2.5, P3, P3.07, P3.91, P4, P5, P5.33, P6.66, P8, P10
Module size:192x192mm,160x160mm,320x160mm,250x250mm,256x128mm
Cabinet size:640x640mm,768x768mm,960*960mm,500x500mm,1024x768mm 1024x768mm,
| project | parameter | Remark | |
|
BASIC PARAMETER |
pixel pitch | 3 mm | |
| pixel structure | 1R1G1B | ||
| pixel density | 111111 /m 2 | ||
| Module resolution | 64(W)* 64 (H) | ||
| Module size | 192mm * 192mm | ||
| Box size | 768mm*768mm | ||
|
OPTIC PARAMETER |
Single point luminance, chromaticity correction | have | |
| white balance brightness | ≥ 5 0 00cd/㎡ | ||
| color temperature | 3200K—9300K adjustable | ||
| Horizontal viewing angle | ≥ 120° | ||
| vertical viewing angle | ≥ 120° | ||
| Visible distance | ≥8 meters | ||
| Brightness uniformity | ≥97% | ||
| Contrast | ≥ 5 000:1 | ||
|
Proccessing Performance |
Signal processing bits | 16 bits*3 | |
| grayscale | 16Bit | ||
| control distance | Gigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers | ||
| drive mode | High gray-scale constant current source driver IC | ||
| frame rate | ≥ 60HZ | ||
| refresh rate | ≥ 3840 Hz | ||
| way to control | Synchronize | ||
| Brightness adjustment range | 0 to 100 stepless adjustment | ||
|
Operation performance |
Continuous working time | ≥72 hours | |
| Typical life | 50,000 hours | ||
| Protection class | Front IP65, back IP43 | ||
| range of working temperature | -20℃ to 50℃ | ||
| Operating humidity range | 10%-80%RH non-condensing | ||
| Storage temperature range | -20 ℃ to 60 ℃ | ||
|
Electric parameter |
Operating Voltage | DC 5V | |
| Power Requirements | AC:220×(1±10%)V, 50×(1±5%)Hz | ||
| Maximum power consumption | 850W/ ㎡ | ||
| Average power consumption | 350W/ ㎡ | ||
