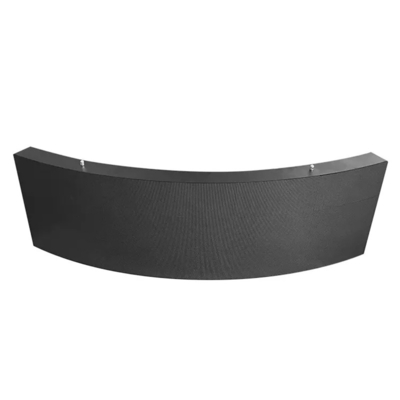

High Contrast P2mm Flexible LED Panel Video Screen Adjusted Module
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC |
| Model Number: | P2mm |
|
Detail Information |
|||
| Pixel Pitch: | P2mm | Module Resolution: | 128 (W)* 64 (H) |
|---|---|---|---|
| Module Size: | 256mm * 128mm | Refresh Rate: | Normal Refresh 32s |
| White Balance Brightness: | ≥600 Cd/㎡ | Contrast: | ≥5000:1 |
| Brightness Adjustment Range: | 0 To 100 Stepless Adjustment | Horizontal Viewing Angle: | ≥ 140° |
| Vertical Viewing Angle: | ≥ 120° | ||
| High Light: | P2mm Flexible LED Panel Video Screen,P2 IP20 Flexible LED Panel Video Screen,P2 IP20 Small Flexible Led Screen |
||
Product Description
High Contrast P2mm Flexible LED Panel Video Screen Adjusted Module
P2mm the height and direction can be adjusted flexible module for LED screen
1. By rotating the magnetic column, the height can be adjusted, thereby adjusting the flatness of the entire screen body
2. Light, thin, transparent, easy to install and maintain, flexible bending, more energy-saving
3. Using a magnetic suction module, the left and right and up and down directions can be adjusted by the translation of the module
| project | parameter | Remark | |
|
BASIC PARAMETER |
pixel pitch | 2mm | |
| pixel structure | 1R1G1B | ||
| pixel density | 25 0000/m 2 | ||
| Module resolution | 128 (W)* 64 (H) | ||
| Module size | 256mm * 128mm _ | ||
|
OPTIC PARAMETER |
Single point luminance, chromaticity correction | have | |
| white balance brightness | ≥600 cd/㎡ | ||
| color temperature | 2000K—12500K adjustable | ||
| Horizontal viewing angle | ≥ 140° | ||
| vertical viewing angle | ≥ 120° | ||
| Visible distance | ≥5 meters | ||
| Brightness uniformity | ≥97% | ||
| Contrast | ≥5000:1 | ||
|
PROCCESSING PERFORMANCE |
Signal processing bits | 16 bits*3 | |
| grayscale | 12-14bits | ||
| control distance | Network cable: 100 meters, Optical fiber: 10 kilometers | ||
| drive mode | High gray-scale constant current source driver IC | ||
| frame rate | ≥ 60HZ | ||
| refresh rate | ≥ 1920-3840 Hz | ||
| way to control | Synchronize | ||
| Brightness adjustment range | 0 to 100 stepless adjustment | ||
|
OPERATION PERFORMANCE |
Continuous working time | ≥72 hours | |
| Typical life | 50,000 hours | ||
| Protection class | IP20 | ||
| range of working temperature | -20℃ to 50℃ | ||
| Operating humidity range | 10 %- 80% RH non-condensing | ||
| Storage temperature range | -20 ℃ to 60 ℃ | ||
|
ELECTRIC PARAMETER |
Operating Voltage | DC 4.2-5V | |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | ||
| Maximum power consumption | 680W/ ㎡ | ||
| Average power consumption | 270W/ ㎡ | ||
Module size: 320*160mm 256*128mm 240*120mm 200*150mm
Module size: 320*160mm:
PITCH: P1.86mm P2mm P2.5mm P3.07mm
Module size: 200*150 mm:
PITCH: P1.5625mm P1.875mm P1.579mm P2.5mm P3mm
Module size: 256*128mm:
PITCH: P2mm P4mm
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
| Q: What is the brightness, viewing angle and wavelength of the LED? |
|
A: Luminous Intensity is equal to the amount of luminous flux emitted into a very small solid angle at a defined angular orientation from the light source. The measurement for luminous intensity is the candela. Symbol is Iv. Viewing Angle is the total cone angle in degrees encompassing the central, high luminous intensity portion of the LED beam from the on-axis peak to the off-axis point where the LED intensity is 50% of the on-axis intensity. This off-axis point is known as theta one-half ( 1/2). Two times 1/2 is the LEDs' full viewing angle; however, light is visible beyond the1/2 point. Wavelength is the distance between two points of corresponding phase and is equal to waveform velocity divided by frequency. It defines what color human eyes could recognize |
| Q: What is dominant wavelength? Please specify the ranges of wavelength in red, green and blue color respectively. |
| A: Dominant wavelength is defined as the best range of wavelength showing the most natural color recognized by human eyes. Researches indicate that fixed colors with wavelength of 620-630nm (red), 520-530nm (green) and 460-470nm (blue), in fact mixed in a particular proportion, can get the pure white. That is, in display field, people use luminous materials with above wavelength to make "compounded" white more natural.In order to get a good balance white led display, we specify the led colors with wavelength within 4nm for each color |
| Q: Which chip vendors are you buying from? |
| A: It depends on the Customer's requirement. We can purchase from Japan, Korea, Europe, USA. We are using chips mainly from Taiwan |
| Q: What is the chip size you're using for outdoor display? How about indoor display? |
| A: For outdoor display, we're using 12mil chip for red, 14mil for both green and blue. Regarding indoor display, 9mil for red, 12mil for green and blue are currently adopted |
| Q: How much will the brightness of LED drop down after 1000hrs? |
| A: Based on the result of aging test, the brightness decay of green LED is around 5%-8%, while blue is around 10%-14% and red is around 5%-8% |
