CE FCC ETL P1.579mm Flexible LED Display Screen 1R1G1B Pixel Structure
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC/ETL |
| Model Number: | P1.579mm |
|
Detail Information |
|||
| Pixel Pitch: | 1.579mm | Light: | Guoxing |
|---|---|---|---|
| IC: | FM6363B | Pixel Structure: | 1R1G1B |
| Grayscale: | 65536 | Module Size: | 24 0mm* 12 0mm |
| Frame Rate: | ≥ 60HZ | Module Resolution: | 152 (W)* 76 (H) |
| High Light: | P1.579mm Flexible LED Display Screen,P1.579mm Flexible Led Screen Wall,1R1G1B Flexible Led Screen Wall |
||
Product Description
CE FCC ETL P1.579mm Flexible LED Display Screen 1R1G1B Pixel Structure

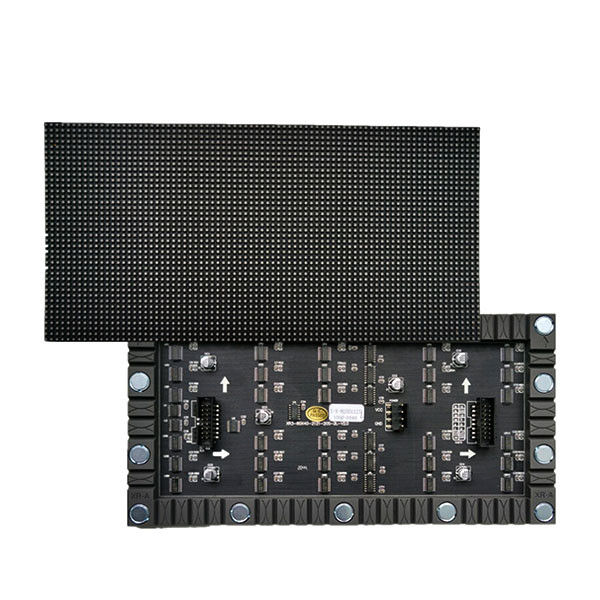

Technology advanced P1.579mm soft module LED display

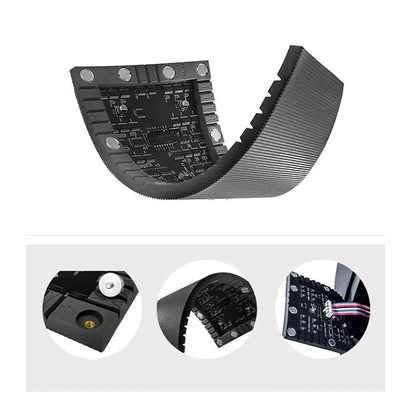

1. Using a magnetic suction module, the left and right and up and down directions can be adjusted by the translation of the module; by rotating the magnetic column, the height can be adjusted, thereby adjusting the flatness of the entire screen body
2. Using special materials and advanced technology, ultra-thin and ultra-light, the thickness of the three sizes of modules is 9-10mm,

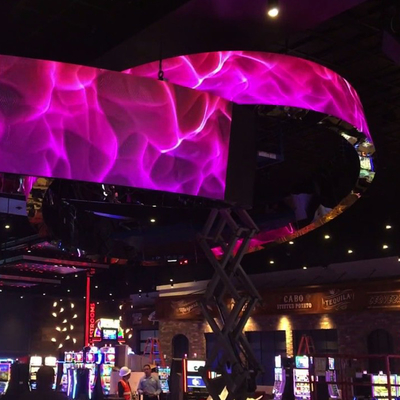

Strong flexibility, can be bent up to 120°, and can be shaped into any shape (cylinder, wave, ring, spherical, heterosexual, etc.)
3. Adopt strong magnetic adsorption installation, direct adsorption, more convenient installation and maintenance. The box body is omitted, the structural load is reduced, and the cost is effectively reduced. Support floor-standing, hanging, embedded, hoisting and other installation methods.
vertical viewing angle :≥ 120°
Brightness uniformity: ≥97%
Contrast :≥3000:1
ignal processing bits: 16 bits*3
grayscale :65536
frame rate :≥ 60HZ
refresh rate :≥ 1920 Hz
| project | parameter | Remark | |
|
BASIC PARAMETER |
pixel pitch | 1.579mm _ | |
| pixel structure | 1R1G1B | ||
| pixel density | 401084 /m 2 | ||
| Module resolution | 152 (W)* 76 (H) | ||
| Module size | 24 0mm* 12 0mm | ||
|
OPTIC PARAMETER |
Single point luminance, chromaticity correction | have | |
| white balance brightness | ≥700 cd/㎡ | ||
| color temperature | 3200K—9300K adjustable | ||
| Horizontal viewing angle | ≥ 140° | ||
| vertical viewing angle | ≥ 120° | ||
| Visible distance | ≥3 meters | ||
| Brightness uniformity | ≥97% | ||
| Contrast | ≥3000:1 | ||
|
PROCCESSING PERFORMANCE |
Signal processing bits | 16 bits*3 | |
| grayscale | 65536 | ||
| control distance | Network cable: 100 meters, Optical fiber: 10 kilometers | ||
| drive mode | High gray-scale constant current source driver IC | ||
| frame rate | ≥ 60HZ | ||
| refresh rate | ≥ 1920 Hz | ||
| way to control | Synchronize | ||
| Brightness adjustment range | 0 to 100 stepless adjustment | ||
|
OPERATION PERFORMANCE |
Continuous working time | ≥72 hours | |
| Typical life | 50,000 hours | ||
| Protection class | IP20 | ||
| range of working temperature | -20℃ to 50℃ | ||
| Operating humidity range | 10 %- 80% RH non-condensing | ||
| Storage temperature range | -20 ℃ to 60 ℃ | ||
|
ELECTRIC PARAMETER |
Operating Voltage | DC 4.2-5V | |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | ||
| Maximum power consumption | 650W/ ㎡ | ||
| Average power consumption | 260W/ ㎡ | ||
