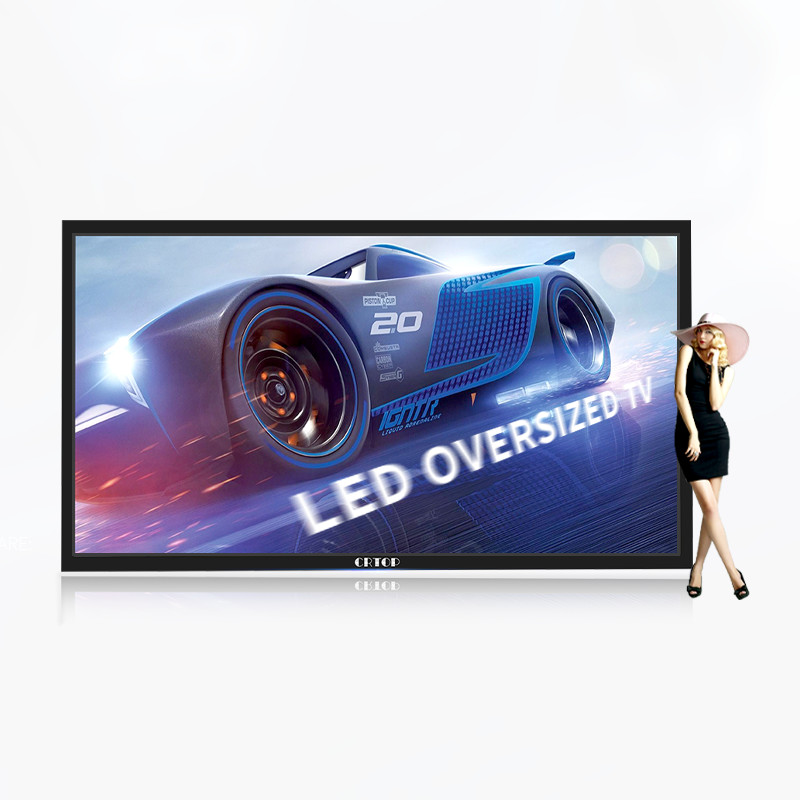

Thin P1.5625mm Indoor LED Display Screen refresh rate 3840 Hz
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CRTOP |
| Certification: | CE/FCC/ETL |
| Model Number: | P1.5625mm |
Payment & Shipping Terms:
| Packaging Details: | l |
|---|
|
Detail Information |
|||
| Pixel Pitch: | 1.5625mm | Module Size: | 300mm * 168.75mm * 12.6mm |
|---|---|---|---|
| Module Resolution: | 192 (W)* 108 (H) | Refresh Rate: | ≥ 3840 Hz |
| Protection Class: | IP20 | Material: | Aluminum Module |
| Brightness Uniformity: | ≥97% | Brgihtness: | ≧1000cd |
| Horizontal Viewing Angle: | ≥ 140° | Vertical Viewing Angle: | ≥ 120° |
| High Light: | P1.5625mm Indoor LED Display Screen,1000cd Indoor LED Display Screen,P1.5625mm Indoor Led Screens |
||
Product Description
Thin P1.5625mm Indoor LED Display Screen Refresh Rate 3840 Hz
1. Bottom shell thickness 10mm, light and thin,the classic black appearance.
2.aluminum bottom shell can not only be installed by sticking, but also can be installed by back-locking screws, which can make the PCB fit the aluminum bottom perfectly. Guaranteed flatness and accuracy.
3.Using the HUB75 interface and the conventional power white seat, the 16:9 series can only use hard connection to use the soft connection of the gap
4.Independently design open-die corner connector, connecting structural profile and frame, it can better ensure the installation quality and shape accuracy
| project | parameter | |
|
Basic parameter |
pixel pitch | 1.5625mm _ |
| pixel structure | 1R1G1B | |
| pixel density | 409600 /m 2 | |
| Module resolution | 192 (W)* 108 (H) | |
| Module size | 300mm * 168.75mm * 12.6mm | |
|
Optic parameter |
Single point luminance, chromaticity correction | have |
| white balance brightness | ≥600 cd/㎡ | |
| color temperature | 3200K—9300K adjustable | |
| Horizontal viewing angle | ≥ 140° | |
| vertical viewing angle | ≥ 120° | |
| Visible distance | ≥3 meters | |
| Brightness uniformity | ≥97% | |
| Contrast | ≥5000:1 | |
|
Operation characteristic |
Signal processing bits | 16 bits*3 |
| grayscale | 65536 | |
| control distance | Network cable: 100 meters, Optical fiber: 10 kilometers | |
| drive mode | High gray-scale constant current source driver IC | |
| frame rate | ≥ 60HZ | |
| refresh rate | ≥ 384 0 Hz | |
| way to control | Synchronize | |
| Brightness adjustment range | 0 to 100 stepless adjustment | |
|
Processing performance |
Continuous working time | ≥72 hours |
| Typical life | 50,000 hours | |
| Protection class | IP20 | |
| range of working temperature | -20℃ to 50℃ | |
| Operating humidity range | 10 %- 80% RH non-condensing | |
| Storage temperature range | -20 ℃ to 60 ℃ | |
|
Electricity parameter |
Operating Voltage | DC: 4.2-5V |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | |
| Maximum power consumption | 680W / ㎡ _ | |
| Average power consumption | 270W / ㎡ _ | |
